GE 193X530BBG01控制板
1.產 品 資 料 介 紹：
中文資料：
產品名稱：控制板
產品型號：193X530BBG01
制造商：General Electric (GE)
產品系列：GE 193X 系列工業控制模塊
產品簡介
193X530BBG01 是 GE 193X 系列中的一款核心控制板，設計用于配合 GE 直流驅動系統，執行精確的控制邏輯處理與信號協調任務。該板卡在整個系統中起到協調、驅動、監控等多重功能，通常用作中央控制或次級控制核心。
主要功能
處理速度、電流、轉矩等反饋信號
執行控制邏輯并輸出控制指令至驅動單元
提供故障檢測、報警響應功能
實現與外圍模塊（如接口卡、電源模塊）的通信協調
支持精密控制（閉環控制）與狀態調節
技術參數（典型值，僅供參考）
| 參數項 | 描述 |
|---|---|
| 電源電壓 | +15V / +24V DC（依據系統配置） |
| 控制信號類型 | 模擬/數字混合信號 |
| 控制方式 | 電流控制 / 電壓控制 / 開環/閉環 |
| 溫度范圍 | 0°C ~ 70°C |
| 響應時間 | 小于10ms |
| 安裝結構 | 插槽式安裝，帶引導接口 |
典型應用
GE 可調速電機控制系統
工業直流驅動調速系統
自動化生產設備
卷繞機、電梯、傳送設備控制中心
起重設備和大型機電控制系統
英文資料：
Product Name: Control Board
Product model: 193X530BBG01
manufacturer: General Electric (GE)
Product series: GE 193X series industrial control module
Product Introduction
193X530BBG01 is a core control board in the GE 193X series, designed to work with GE DC drive systems to perform precise control logic processing and signal coordination tasks. This board serves multiple functions in the entire system, including coordination, driving, and monitoring, and is typically used as a central or secondary control core.
major function
Processing feedback signals such as speed, current, torque, etc
Execute control logic and output control instructions to the drive unit
Provide fault detection and alarm response functions
Implement communication and coordination with peripheral modules such as interface cards and power modules
Support precision control (closed-loop control) and state adjustment
Technical parameters (typical values, for reference only)
Parameter item description
Power supply voltage+15V/+24V DC (depending on system configuration)
Control signal type: analog/digital mixed signal
Control mode: current control/voltage control/open-loop/closed-loop
Temperature range 0 ° C~70 ° C
Response time less than 10ms
Installation structure slot installation with boot interface
Typical applications
GE Adjustable Speed Motor Control System
Industrial DC Drive Speed Control System
automation production equipment
Winding machine, elevator, and conveyor equipment control center
Lifting equipment and large electromechanical control systems

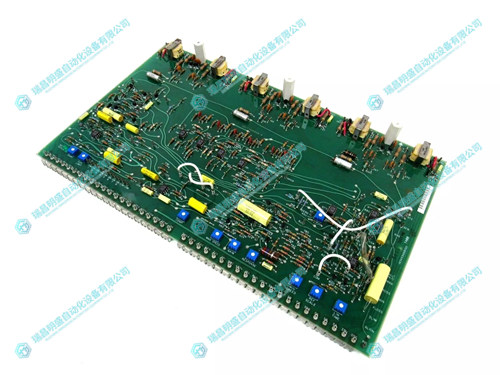

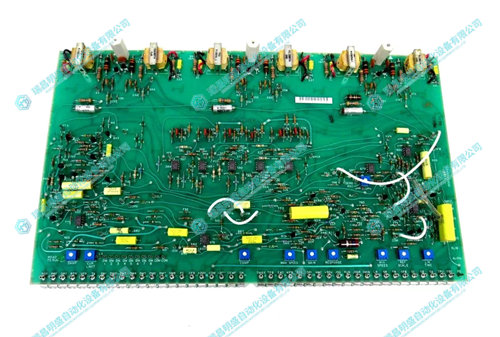

2.產 品 展 示
