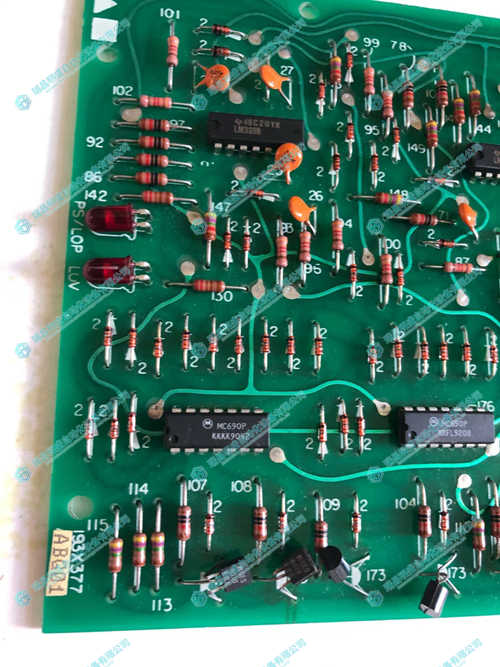

GE 193X379ACG01驅動調節板
1.產 品 資 料 介 紹：
中文資料：
GE 193X379ACG01 驅動調節板（Drive Regulator Board） 是 GE 193X 系列自動化系統中的核心控制模塊之一，主要用于電機驅動系統的調節與控制。該模塊在工業自動化系統中廣泛應用，能夠有效地調節和優化驅動電機的性能，確保系統穩定運行。
一、產品概述
產品型號：193X379ACG01
產品名稱：驅動調節板
系列：GE 193X 系列控制模塊
功能定位：電機驅動調節、調速控制、驅動系統優化
應用領域：工業自動化、電機控制系統、自動化生產線
二、主要功能
電機驅動調節
通過精確的信號處理與調節，調整電機的驅動電壓、電流和頻率，實現電機的高效運行。調速控制
支持對電機轉速的精確調節，以適應不同工況下的需求，廣泛應用于需要調速的設備，如風機、泵、輸送機等。閉環控制功能
可與反饋系統協同工作，形成閉環控制，實時調節驅動系統的輸出，確保電機運行平穩，避免因負載波動造成不必要的影響。多種保護機制
提供過載保護、過電壓保護、過溫保護等功能，確保電機與驅動系統的安全性與穩定性。電氣隔離與抗干擾
采用電氣隔離設計，減少信號干擾的影響，提升系統的抗干擾能力，確保在復雜的工業環境中穩定運行。
三、典型技術參數
輸入信號類型：模擬信號（如0–10V、4–20mA），用于調節電機的運行狀態
輸出信號類型：PWM調節信號，用于驅動電機
電壓范圍：支持寬范圍的輸入電壓，適應不同電壓等級的設備
工作溫度范圍：-10°C 至 +60°C，適應各種工業環境
電氣隔離：輸入和輸出之間提供電氣隔離，防止電氣干擾
功率要求：低功耗設計，支持長時間穩定運行
保護功能：過載、過溫、短路等多重保護功能，確保設備安全
英文資料：
The GE 193X379ACG01 Drive Regulator Board is one of the core control modules in the GE 193X series automation system, mainly used for regulating and controlling motor drive systems. This module is widely used in industrial automation systems and can effectively regulate and optimize the performance of drive motors to ensure stable system operation.
1、 Product Overview
Product model: 193X379ACG01
Product Name: Drive Adjustment Board
Series: GE 193X series control module
Functional positioning: motor drive regulation, speed control, drive system optimization
Application areas: Industrial automation, motor control systems, automated production lines
2、 Main functions
Motor drive regulation
By precise signal processing and adjustment, the driving voltage, current, and frequency of the motor are adjusted to achieve efficient operation of the motor.
Speed control
Supporting precise adjustment of motor speed to meet the needs of different working conditions, it is widely used in equipment that requires speed regulation, such as fans, pumps, conveyors, etc.
Closed loop control function
It can work in conjunction with feedback systems to form closed-loop control, adjust the output of the drive system in real time, ensure smooth motor operation, and avoid unnecessary effects caused by load fluctuations.
Multiple protection mechanisms
Provide overload protection, overvoltage protection, over temperature protection and other functions to ensure the safety and stability of the motor and drive system.
Electrical isolation and anti-interference
Adopting electrical isolation design to reduce the impact of signal interference, enhance the anti-interference ability of the system, and ensure stable operation in complex industrial environments.
3、 Typical technical parameters
Input signal type: Analog signal (such as 0-10V, 4-20mA), used to adjust the operating status of the motor
Output signal type: PWM regulation signal, used to drive the motor
Voltage Range: Supports a wide range of input voltages, suitable for devices with different voltage levels
Working temperature range:- 10 ° C to+60 ° C, suitable for various industrial environments
Electrical isolation: Provide electrical isolation between input and output to prevent electrical interference
Power requirement: Low power design, supporting long-term stable operation
Protection function: Multiple protection functions such as overload, over temperature, short circuit, etc., ensure equipment safety
2.產 品 展 示
