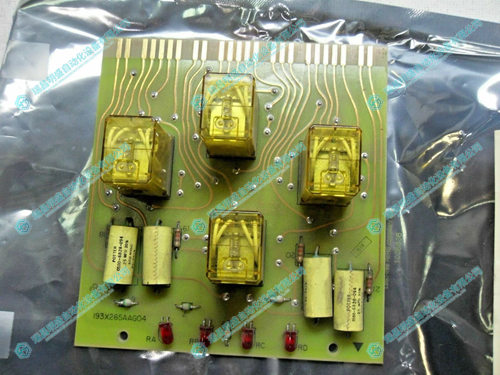

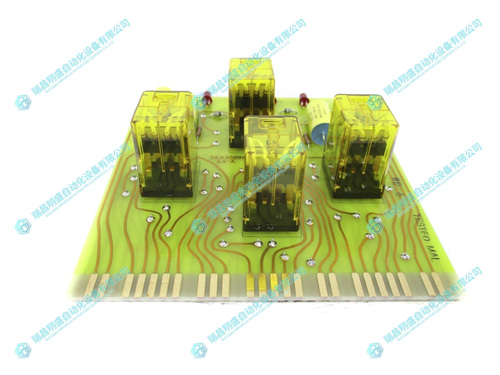

GE 193X265AAG04繼電器卡
1.產 品 資 料 介 紹：
中文資料：
GE 193X265AAG04 繼電器卡（Relay Card） 是 GE 193X 系列工業控制系統中的一個重要模塊，主要用于實現系統內各種邏輯狀態控制、故障響應、聯鎖邏輯和執行命令的電氣隔離切換功能。該卡廣泛應用于 GE 的直流驅動系統（如 DC300 系列）、發電控制系統、汽輪機控制系統等場合。
一、產品概覽：
產品型號：193X265AAG04
系列：GE 193X 控制平臺
模塊類型：繼電器控制卡（Relay Card）
作用：電氣控制邏輯執行、狀態切換、負載驅動
二、主要功能與作用：
| 功能項 | 描述 |
|---|---|
| 邏輯控制執行 | 響應上級控制指令，實現開/關狀態控制（如啟停電機、切換回路） |
| 狀態反饋輸出 | 將某一狀態變化（如過載、報警、故障）通過繼電器觸點形式輸出 |
| 信號隔離與轉換 | 實現低電平控制信號與高電壓功率級之間的隔離轉換 |
| 系統聯鎖與互鎖 | 在復雜工業控制系統中形成聯鎖機制，防止誤操作或狀態沖突 |
| 報警驅動或跳閘控制 | 可接入外部報警設備或跳閘回路，用于安全響應機制 |
三、應用領域：
| 行業 | 應用說明 |
|---|---|
| 發電廠 | 用于發電機勵磁系統的保護和控制邏輯 |
| 鋼鐵與冶金 | 控制大型軋機電機的啟停、故障跳閘邏輯 |
| 造紙、電梯、水泥 | 在自動化生產線中用于設備狀態切換和報警聯動 |
| 鐵路與軌道交通 | 控制牽引系統、供電轉換或信號邏輯 |
| 化工自動化 | 系統狀態保護、啟停邏輯及遠程控制輸出 |
英文資料：
The GE 193X265AAG04 Relay Card is an important module in the GE 193X series industrial control system, mainly used to implement various logic state control, fault response, interlocking logic, and electrical isolation switching functions for executing commands within the system. This card is widely used in GE's DC drive systems (such as DC300 series), power generation control systems, turbine control systems, and other applications.
1、 Product Overview:
Product model: 193X265AAG04
Series: GE 193X Control Platform
Module type: Relay Card
Function: Electrical control logic execution, state switching, load driving
2、 Main functions and functions:
Function item description
Logical control execution responds to superior control instructions to achieve on/off state control (such as starting and stopping motors, switching circuits)
The state feedback output outputs a certain state change (such as overload, alarm, fault) through relay contacts
Signal isolation and conversion to achieve isolation and conversion between low-level control signals and high-voltage power levels
System interlocking and interlocking form interlocking mechanisms in complex industrial control systems to prevent misoperation or state conflicts
Alarm drive or trip control can be connected to external alarm devices or trip circuits for safety response mechanisms
3、 Application areas:
Industry Application Description
Protection and control logic for generator excitation system in power plants
Start stop and fault tripping logic of large rolling mill motors controlled by steel and metallurgy
Paper making, elevators, and cement are used in automated production lines for equipment status switching and alarm linkage
Railway and rail transit control traction system, power supply conversion or signal logic
Chemical automation system status protection, start stop logic, and remote control output
