GE 193X257AAG01電源板
1.產 品 資 料 介 紹：
中文資料：
GE 193X257AAG01 電源板 是 GE（General Electric）193X 系列工業控制系統中的一款關鍵電源模塊。該板卡通常作為直流調速器或工業控制系統的電力供應核心，為控制系統中的多個子模塊提供穩定、可靠的電壓與電流支持。
一、產品基本信息：
產品型號：193X257AAG01
類型：電源板（Power Supply Board）
制造商：GE Industrial Systems
系列歸屬：GE 193X 模塊化控制平臺
主要作用：提供多通道穩定電源，保障控制系統正常工作
二、功能特點：
多路電源輸出
提供不同電壓等級的直流電源輸出（如 ±15V、5V 等），為信號處理、放大器、邏輯控制等模塊供電。過流與過壓保護
內置保護機制，防止系統因過載、短路等問題損壞，提高整機系統的運行安全性與壽命。高穩定性與低噪聲
輸出電壓紋波小，穩定性高，適合用于精密信號處理電路，保障系統精度和可靠性。兼容性好
設計用于 GE 的調速控制系統中，特別是與 GE 的 193X 驅動系列（如 DC300 系統）配套使用。
三、典型應用領域：
直流調速器系統（DC Drive Systems）
作為調速器的核心供電模塊，驅動控制板、信號處理板和反饋電路。發電廠控制系統
用于汽輪機、燃氣輪機的控制設備中，為控制與信號模塊供電。冶金與鋼鐵行業自動化控制
為軋機、電機控制與速度調節系統提供穩定電源。化工與造紙行業
用于大型連續性工業流程控制系統，提供連續、穩定電源支持。鐵路牽引系統
用于機車或牽引系統中，保障各種控制單元的電力供應。
英文資料：
The GE 193X257AAG01 power board is a critical power module in the GE (General Electric) 193X series industrial control systems. This board is typically used as the power supply core for DC speed controllers or industrial control systems, providing stable and reliable voltage and current support for multiple submodules in the control system.
1、 Product basic information:
Product model: 193X257AAG01
Type: Power Supply Board
manufacturer: GE Industrial Systems
Series affiliation: GE 193X modular control platform
Main function: Provide multi-channel stable power supply to ensure the normal operation of the control system
2、 Functional features:
Multi channel power output
Provide DC power outputs of different voltage levels (such as ± 15V, 5V, etc.) to power modules such as signal processing, amplifiers, and logic control.
Overcurrent and Overvoltage Protection
Built in protection mechanism to prevent system damage due to overload, short circuit and other issues, improving the operational safety and lifespan of the entire system.
High stability and low noise
The output voltage has small ripple and high stability, making it suitable for use in precision signal processing circuits to ensure system accuracy and reliability.
Good compatibility
Designed for use in GE's speed control system, especially in conjunction with GE's 193X drive series (such as DC300 system).
3、 Typical application areas:
DC Drive Systems
As the core power supply module of the speed controller, it drives the control board, signal processing board, and feedback circuit.
Power plant control system
Used in control equipment for steam turbines and gas turbines to supply power to control and signal modules.
Automation Control in Metallurgy and Steel Industry
Provide stable power supply for the rolling mill, motor control, and speed regulation system.
Chemical and Paper Industry
Used for large-scale continuous industrial process control systems, providing continuous and stable power support.
Railway traction system
Used in locomotives or traction systems to ensure power supply for various control units.

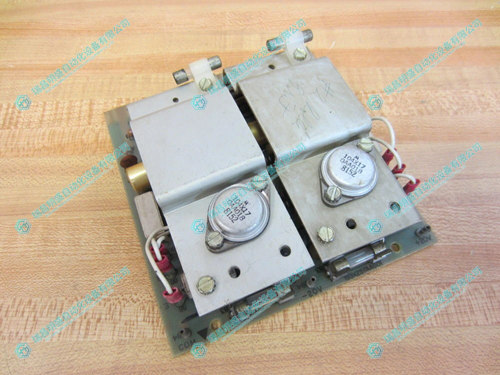

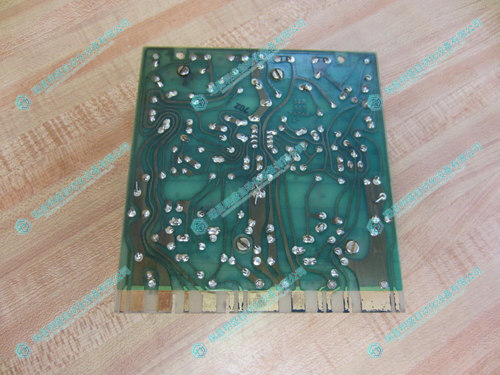

2.產 品 展 示
