GE DS200FGPAG1A脈沖放大器板
1.產 品 資 料 介 紹：
中文資料：
DS200FGPAG1A 是一塊專為 GE Mark V 渦輪控制系統設計的 門極脈沖放大器板卡。它用于將來自控制邏輯的弱門極觸發信號（Gate Signal），放大并發送至功率半導體器件（如晶閘管 SCR 或 IGBT），以驅動其正確導通或關斷。該板主要在大功率逆變、電源整流或勵磁系統中使用。
核心功能
門極信號放大
接收來自控制器（如 DCI、TCQA）的低電平觸發信號
輸出電流驅動能力強的脈沖，用于控制晶閘管或 IGBT 開關
隔離保護功能
提供光耦隔離，有效避免控制端受到高壓側干擾
防止誤觸發或回流電流對系統造成傷害
多通道支持
通常支持三相系統（6 或 12 脈沖整流）的多個門極輸出通道
可配置以適應不同拓撲結構的電力電子模塊
狀態反饋與故障檢測
部分版本具備門極狀態反饋功能，便于診斷驅動故障
配合 GE 控制系統實現閉環保護策略
典型應用領域
大型同步發電機勵磁控制系統
控制整流橋中的晶閘管導通，用于調節勵磁電流
實現精確的無刷勵磁調節
高壓變頻器與電動機控制系統
作為功率模塊驅動接口，實現 IGBT 的準確觸發
保證頻率、電壓輸出波形穩定
工業整流/逆變電源系統
用于多脈沖整流器中 SCR 觸發
支持電壓、電流反饋閉環控制
GE Mark V 渦輪機控制系統
融入控制架構中，作為功率輸出單元的一部分
確保系統中高能量轉換模塊的正常工作
主要優勢
高驅動能力：可驅動大功率晶閘管或 IGBT 模塊
電氣隔離出色：光耦隔離設計，提升系統可靠性
GE 系統兼容性強：完美配合 Mark V 控制系統
模塊化便于維護：可熱插拔更換，簡化運維流程
英文資料：
DS200FGPAG1A is a gate pulse amplifier board specifically designed for GE Mark V turbine control systems. It is used to amplify and send weak gate trigger signals from control logic to power semiconductor devices (such as thyristors SCR or IGBTs) to drive them to turn on or off correctly. This board is mainly used in high-power inverters, power rectification, or excitation systems.
Core functions
Gate pole signal amplification
Receive low-level trigger signals from controllers (such as DCI, TCQA)
Pulse with strong output current driving capability, used to control thyristor or IGBT switches
Isolation protection function
Provide optocoupler isolation to effectively avoid interference from the high voltage side on the control end
Prevent accidental triggering or backflow current from causing damage to the system
Multi channel support
Multiple gate output channels that typically support three-phase systems (6 or 12 pulse rectification)
Configurable power electronic modules to adapt to different topological structures
Status feedback and fault detection
Some versions have gate status feedback function, which facilitates the diagnosis of drive faults
Implementing closed-loop protection strategy in conjunction with GE control system
Typical application areas
Excitation Control System for Large Synchronous Generator
Control the conduction of thyristors in the rectifier bridge to regulate the excitation current
Realize precise brushless excitation regulation
High voltage frequency converter and motor control system
As a power module driver interface, achieve accurate triggering of IGBT
Ensure stable frequency and voltage output waveforms
Industrial rectifier/inverter power supply system
Used for SCR triggering in multi pulse rectifiers
Support voltage and current feedback closed-loop control
GE Mark V Turbine Control System
Integrate into the control architecture as part of the power output unit
Ensure the normal operation of high-energy conversion modules in the system
Main advantages
High driving capability: capable of driving high-power thyristor or IGBT modules
Excellent electrical isolation: optocoupler isolation design enhances system reliability
GE system has strong compatibility: perfectly matched with Mark V control system
Modular for easy maintenance: hot swappable and replaceable, simplifying the operation and maintenance process

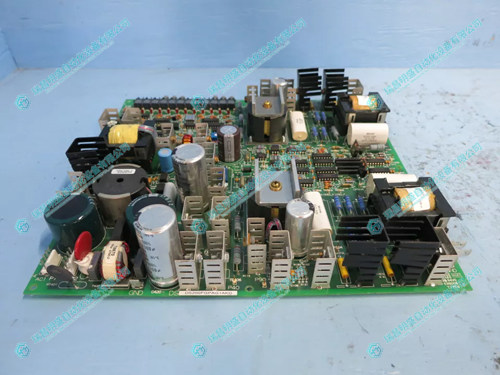

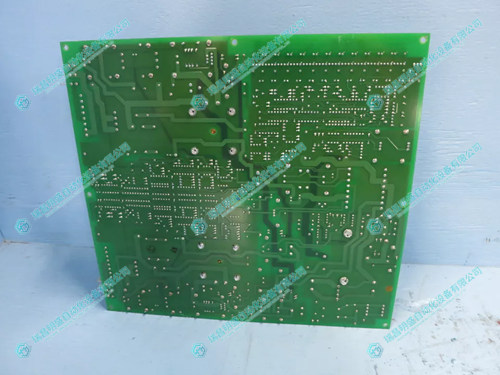

2.產 品 展 示
