AMAT Applied Materials 0110-09245步驟驅動器模塊

1.產 品 資 料 介 紹：

核心技術參數

功能特點

• 高精度細分：支持最高 1/256 細分，實現亞微米級定位，運行平滑無共振。
• 多模式控制：兼容脈沖 + 方向與正反轉脈沖輸入，適配不同上位控制器。
• 寬電流范圍：0.5~3.0A 可設，適配不同扭矩需求的電機。
• 快速響應：200kHz 脈沖頻率，滿足高速定位與頻繁啟停工況。
• 可靠保護：內置過熱、過流、欠壓保護，確保長期穩定運行。
• 通信擴展：可選 RS-485 接口，便于多模塊組網與遠程監控。

典型應用

• 半導體光刻、刻蝕、CVD 設備的晶圓臺定位
• 平板顯示制造中的精密涂布、切割臺控制
• 精密數控機床、自動化裝配線
• 光學掃描、電子測試設備的精確定位

AMAT Applied Materials 0110-09245步驟驅動器模塊 英文資料：

AMAT Applied Materials 0110-09245 is a high-resolution, high-precision single channel stepper motor driver module that uses advanced subdivision technology and micro step control to meet the strict requirements of semiconductor manufacturing, flat panel display, and precision automation equipment for position accuracy and motion stability.

Core technical parameters

Project parameters/characteristics

Drive type: two-phase or four phase hybrid stepper motor

Subdivision settings 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256 are optional

Output current 0.5~3.0A (peak), adjustable in 8 levels

Supply voltage 24~48VDC (typical 24VDC)

Control signal pulse+direction (Dir)/forward/reverse rotation pulse (CW/CCW), compatible with 5-24V

Maximum pulse frequency 200kHz

Protection functions include overcurrent, over temperature, and under voltage protection, automatic shutdown, and alarm

Communication interface RS-485 (Modbus RTU) optional

Installation method: Standard half rack (1/2 rack) rail or panel installation

Size 100 × 160 × 40mm (approximately)

Features

High precision subdivision: supports up to 1/256 subdivision, achieves sub micron level positioning, and runs smoothly without resonance.

Multi mode control: compatible with pulse+direction and forward/reverse pulse input, suitable for different upper level controllers.

Wide current range: 0.5~3.0A can be set, suitable for motors with different torque requirements.

Fast response: 200kHz pulse frequency, meeting high-speed positioning and frequent start stop conditions.

Reliable protection: Built in overheating, overcurrent, and undervoltage protection to ensure long-term stable operation.

Communication Expansion: Optional RS-485 interface for easy multi module networking and remote monitoring.

Typical Applications

Crystal cone positioning for semiconductor lithography, etching, and CVD equipment

Precision coating and cutting table control in flat panel display manufacturing

Precision CNC machine tools, automated assembly lines

Accurate positioning of optical scanning and electronic testing equipment

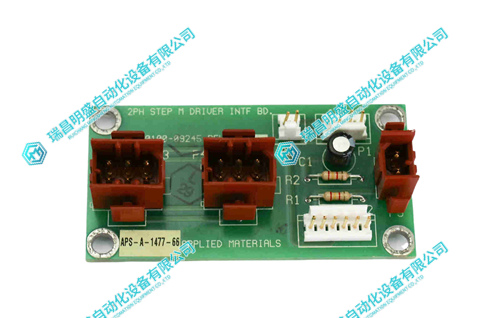

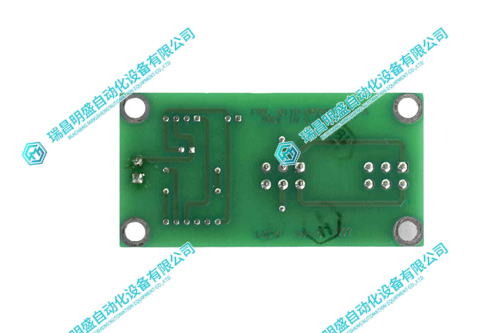

AMAT Applied Materials  0110-09245步驟驅動器模塊 產品展示
