TM3AI8 模塊是施耐德電氣（Schneider Electric）Modicon TM3系列中的一個模擬量輸入模塊，主要用于工業(yè)自動化和過程控制應(yīng)用中。

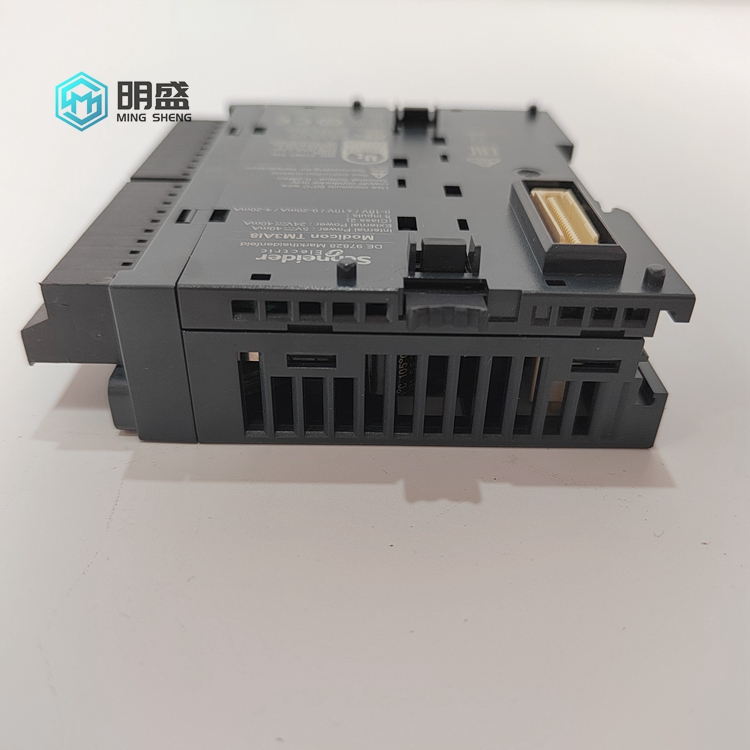

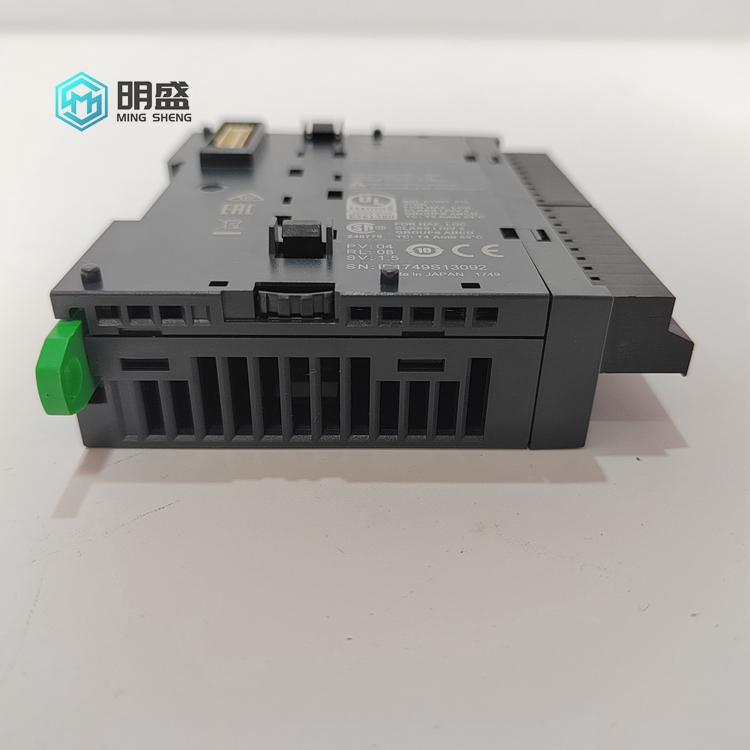

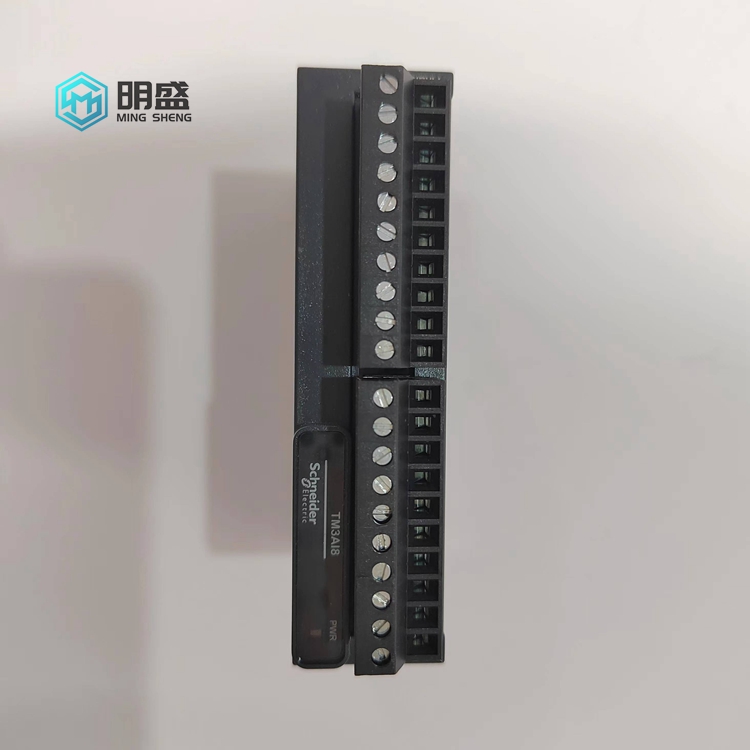

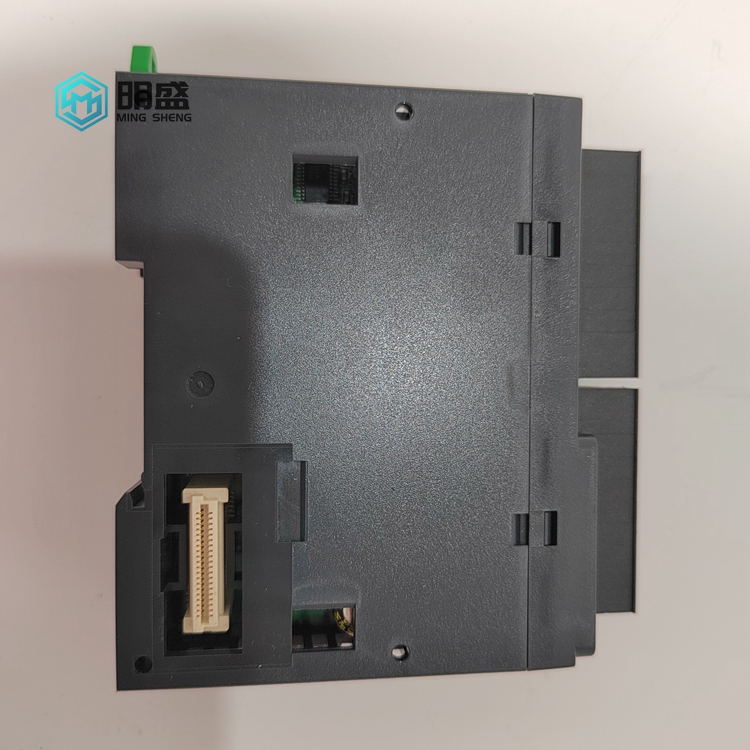

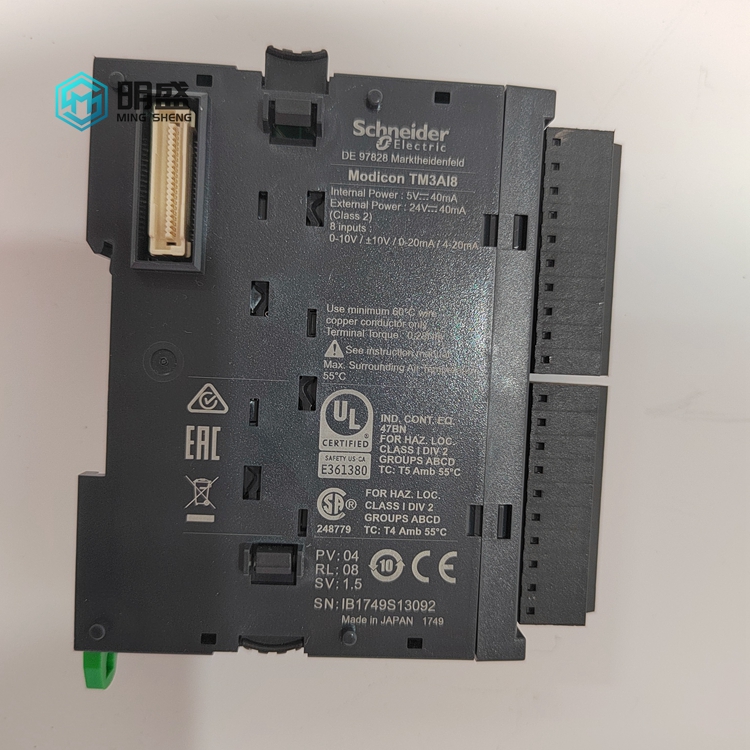

TM3AI8 模擬量輸入模塊產(chǎn)品圖片展示

TM3AI8 模擬量輸入模塊實物視頻

TM3AI8 模擬量輸入模塊詳情

特點

characteristic

Analog input: TM3AI8 provides 8 analog input channels, suitable for various sensor signals such as current (4-20mA) and voltage (-10V to+10V).

Input type: capable of receiving current and voltage signals, suitable for different types of sensors and transmitters.

Accuracy: It has a high conversion accuracy, usually 12 bits, ensuring the accuracy of data collection.

Scope of application: Compatible with Modicon M221, Modicon M241, Modicon M251, Modicon M262 and other controllers, used to expand analog input functions.

Size and installation: The module size is 90mm x 23.6mm x 70mm, and it uses spring terminals for easy installation and wiring.

High voltage section: Although most materials do not mention it, some descriptions mention the use of amorphous materials for high-voltage transformer cores and high-frequency high-voltage winding processes in the high voltage section, but this may refer to certain special versions or applications of the module.

matters needing attention

Wiring: Connect the sensor signal correctly and avoid reverse or incorrect connections to avoid damaging the module.

Power supply and grounding: Ensure that the power supply voltage of the module is correct and has a good grounding to prevent interference and protect the equipment.

Signal isolation: Consider using signal isolators, especially in environments with electromagnetic interference, to improve signal quality and system stability.

Signal range: Ensure that the sensor signal is within the acceptable range of the module, avoiding overload or signal distortion.

Maintenance: Regularly check the operation status of the module, clean the wiring terminals to ensure the reliable operation of the module.

Environmental conditions: Comply with the manufacturer's specified environmental working conditions, such as temperature, humidity, and dust level.

Software configuration: Correctly configure the parameters of the module in the controller, such as input type, range, and unit, to ensure the accuracy of data collection.

Firmware updates: If the module supports firmware updates, the latest firmware should be regularly checked and applied to obtain performance optimization and security patches.
