SCHNNEIDER 140ACI04000 模擬輸入模塊 是一款高性能的模擬信號輸入設備，用于工業自動化系統中模擬量與數字量之間的轉換。
SCHNNEIDER 140ACI04000 模擬輸入模塊 詳情介紹：
Schneider 140ACI04000模擬輸入模塊是一款高性能的模擬信號輸入設備，用于工業自動化系統中模擬量與數字量之間的轉換。以下是關于該模塊的一些詳細介紹：
特點
- 高通道數：該模塊提供16個模擬量輸入通道，可以同時接收多個模擬信號，提高系統的數據處理能力。
- 多種輸入范圍：支持多種模擬信號輸入范圍，如4～20mA、0～20mA、0～25mA等，滿足不同應用的需求。
- 高分辨率：模擬輸入分辨率高達0～16000計數，提供高精度的信號轉換和測量能力。
- 高準確度：具有低線性度誤差和絕對準確度誤差，確保測量結果的準確性和可靠性。
- 強大的保護功能：內置過流、過壓等保護功能，確保模塊在異常情況下能夠安全運行。
- 易于集成：模塊設計緊湊，易于與其他工業自動化設備和系統集成。
應用場景
Schneider 140ACI04000模擬輸入模塊廣泛應用于各種工業自動化和控制系統中，如制造業、能源、水處理等領域。它可用于接收傳感器、變送器等設備輸出的模擬信號，并將其轉換為數字信號，供中央處理器進行處理和控制。通過與其他設備的協同工作，實現自動化生產、能源管理、環境監測等功能。
技術參數
- 輸入數量/功耗：16通道/5W
- 地址需求：17輸入字
- 模擬量輸入分辨率：0～4095計數（具體范圍取決于輸入信號）
- 絕對最大輸入：30mA
- 輸入阻抗：250歐姆
- 線性度誤差：最大+/-6μA（具體值取決于輸入信號范圍）
- 溫度偏移精度：<= 0.0050% 滿量程/℃
- 共模抑制：>-90dB 60Hz
總結
Schneider 140ACI04000模擬輸入模塊是一款高性能的模擬信號輸入設備，具有高通道數、多種輸入范圍、高分辨率、高準確度等特點。它易于與其他設備和系統集成，廣泛應用于各種工業自動化和控制系統中，為自動化生產、能源管理、環境監測等領域提供有力的支持。

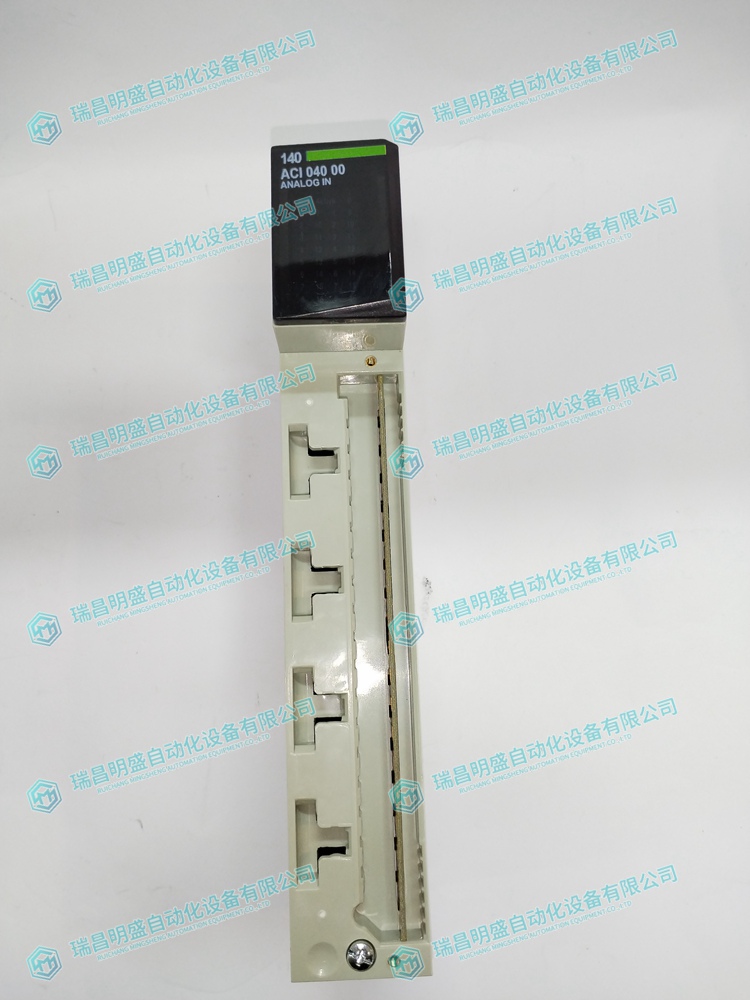

SCHNNEIDER 140ACI04000 模擬輸入模塊 實物圖片：
SCHNNEIDER 140ACI04000 模擬輸入模塊 實物視頻
SCHNNEIDER 140ACI04000 Analog Input Module Details Introduction:
The Schneider 140ACI04000 Analog Input Module is a high-performance analog signal input device used for the conversion between analog and digital signals in industrial automation systems. Here are some detailed introductions about this module:
characteristic
High channel count: This module provides 16 analog input channels, which can simultaneously receive multiple analog signals, improving the system's data processing capabilities.
Multiple input ranges: Supports multiple analog signal input ranges, such as 4-20mA, 0-2mA, 0-2mA, etc., to meet the needs of different applications.
High resolution: The analog input resolution can reach 0-16000 counts, providing high-precision signal conversion and measurement capabilities.
High accuracy: With low linearity error and absolute accuracy error, ensuring the accuracy and reliability of measurement results.
Powerful protection function: Built in overcurrent, overvoltage and other protection functions ensure that the module can operate safely in abnormal situations.
Easy to integrate: The module design is compact and easy to integrate with other industrial automation equipment and systems.
Application scenarios
The Schneider 140ACI04000 analog input module is widely used in various industrial automation and control systems, such as manufacturing, energy, water treatment, and other fields. It can be used to receive analog signals output by devices such as sensors and transmitters, and convert them into digital signals for processing and control by the central processing unit. By collaborating with other devices, automated production, energy management, environmental monitoring, and other functions can be achieved.
technical parameter
Input quantity/power consumption: 16 channels/5W
Address requirement: 17 input words
Analog input resolution: 0-4095 counts (specific range depends on input signal)
Absolute maximum input: 30mA
Input impedance: 250 ohms
Linearity error: maximum+/-6 μ A (specific value depends on input signal range)
Temperature offset accuracy:<=0.0050% of full scale/℃
Common mode suppression:>-90dB 60Hz
summary
The Schneider 140ACI04000 Analog Input Module is a high-performance analog signal input device that features high channel count, multiple input ranges, high resolution, and high accuracy. It is easy to integrate with other devices and systems, and is widely used in various industrial automation and control systems, providing strong support for automation production, energy management, environmental monitoring and other fields.
