Zygo 8010-0105-02 ZMI-501 通道隔離板

1.產 品 資 料 介 紹：

中文資料：

Zygo 8010-0105-02 ZMI-501 通道隔離板是 Zygo 公司提供的一種高性能通道隔離硬件，主要用于支持其干涉測量系統（Interferometer Systems）。此類模塊通常用于精密測量和運動控制應用中，提供信號隔離和數據穩定性，從而提高測量系統的可靠性和精確度。

產品特點：

1. 高性能信號隔離：

   • 提供通道間的電氣隔離，防止噪聲和干擾影響干涉測量信號的穩定性。
   • 減少測量信號中因電氣干擾引起的誤差。

2. 兼容性強：

   • 專為 Zygo 的 ZMI 系列激光干涉儀（如 ZMI-501 系統）設計，確保與系統的無縫集成。

3. 可靠性高：

   • 工業級設計，可在復雜環境下穩定工作。
   • 提供電流過載和短路保護，延長模塊壽命。

4. 模塊化設計：

   • 易于安裝、更換和維護，減少系統停機時間。

技術參數：

• 型號：8010-0105-02
• 系列：ZMI-501
• 功能：通道信號隔離，用于數據完整性和干擾抑制。
• 兼容設備：Zygo ZMI 系列干涉儀和相關運動控制系統。
• 輸入/輸出通道：支持多通道輸入和輸出。
• 電氣隔離等級：高隔離電平，確保測量信號的獨立性和精確性。
• 工作環境：
  • 溫度范圍：通常在工業標準范圍內（建議查閱具體手冊）。
  • 抗震能力：適用于高精度測量的實驗室或工業場景。

英文資料：

Zygo 8010-0105-02 ZMI-501 channel isolation board is a high-performance channel isolation hardware provided by Zygo, mainly used to support its interferometer systems. This type of module is commonly used in precision measurement and motion control applications, providing signal isolation and data stability to improve the reliability and accuracy of measurement systems.

Product features:

High performance signal isolation:

Provide electrical isolation between channels to prevent noise and interference from affecting the stability of interferometric measurement signals.

Reduce errors caused by electrical interference in measurement signals.

Strong compatibility:

Specially designed for Zygo's ZMI series laser interferometers (such as the ZMI-501 system) to ensure seamless integration with the system.

High reliability:

Industrial grade design, capable of stable operation in complex environments.

Provide current overload and short circuit protection to extend module lifespan.

Modular design:

Easy to install, ｒｅｐｌａｃｅ, and maintain, reducing system downtime.

Technical parameters:

Model: 8010-0105-02

Series: ZMI-501

Function: Channel signal isolation, used for data integrity and interference suppression.

Compatible devices: Zygo ZMI series interferometers and related motion control systems.

Input/Output Channels: Supports multi-channel input and output.

Electrical isolation level: high isolation level, ensuring the independence and accuracy of measurement signals.

Work environment:

Temperature range: usually within the industrial standard range (recommended to refer to specific manuals).

Seismic resistance: suitable for laboratory or industrial scenarios with high-precision measurement.

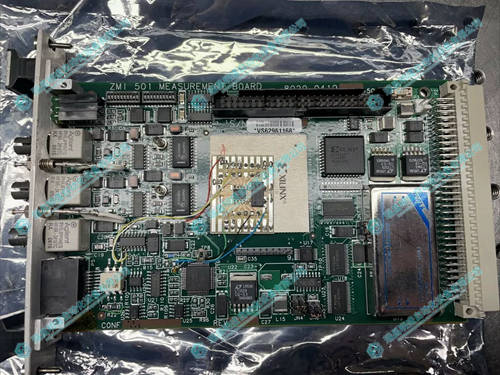

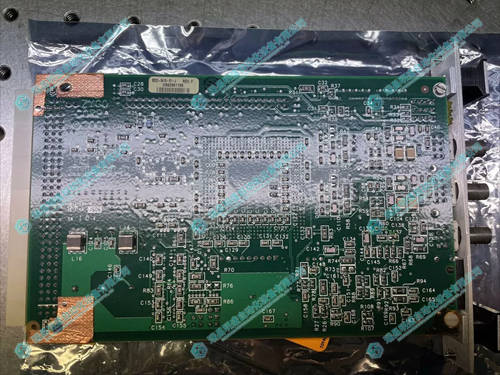

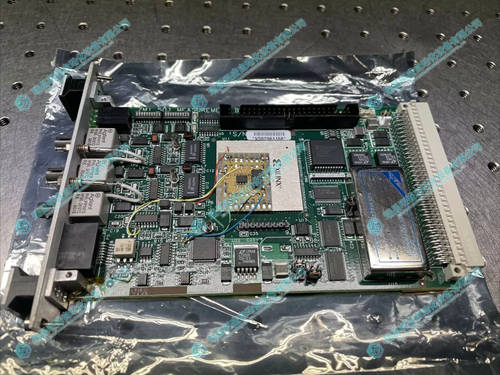

2.產      品      展      示
