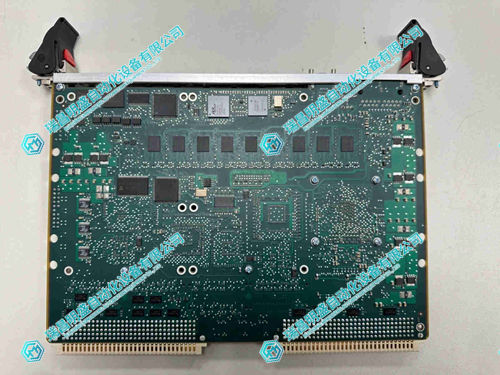

Motorola MVME7100-0173 通訊模塊
1.產 品 資 料 介 紹：
- 核心通訊接口配置
- 以太網接口：配備 2~4 路千兆以太網接口（10/100/1000Mbps 自適應），支持全雙工 / 半雙工模式切換，采用 RJ45 或 SFP 光模塊接口（部分型號可選），SFP 接口支持單模 / 多模光纖傳輸，傳輸距離可達 10km（單模光纖）或 550m（多模光纖），滿足遠距離、抗干擾的工業以太網主干傳輸需求（如大型工廠跨車間的設備互聯）；支持 IEEE 802.3 標準，兼容 VLAN、QoS、鏈路聚合（LACP）等工業以太網增強協議，可實現數據流量?jī)?yōu)先級劃分與通訊鏈路冗余，保障關鍵控制數據的優先傳輸。
Motorola MVME332 01-W3504B-01D數字量控制板卡 英文資料：
Introduction to Motorola MVME7100-0173 Communication Module
The Motorola MVME7100-0173 communication module is a specialized module in the MVME series that focuses on industrial grade data exchange and system interconnection. Based on the VME bus architecture design, it is widely used in fields such as industrial automation, telecommunications equipment, and defense control that require strict communication reliability and real-time performance. It takes "multi protocol compatibility, high bandwidth transmission, and stable interconnection" as its core characteristics, integrates rich communication interfaces and advanced protocol processing capabilities, and can achieve efficient data transmission between VME systems and external devices, remote terminals, and upper computers. It is a key hardware component for Motorola to solve the needs of "multi system collaboration and long-distance data interaction" in the high-end embedded communication field.
1、 Product Overview
The Motorola MVME7100-0173 communication module is positioned in the high-end industrial communication market, focusing on solving the core pain points of "multi protocol adaptation, high reliability transmission, and long-distance interconnection" in complex scenarios. Its hardware architecture is built around high-performance communication controllers and dedicated protocol processing chips. Through optimized signal processing circuits, configurable communication interface design, and deep compatibility with the VME bus standard, it achieves efficient processing of the entire chain of "protocol parsing data forwarding state feedback". It can meet the real-time data interaction requirements of multi device collaborative control in industrial production lines, adapt to long-distance, high bandwidth data transmission scenarios in the telecommunications and defense fields, and is compatible with MVME series controller modules (such as MVME5110-2261, MVME162-222), reducing the complexity and development cost of multi system integration.
This product fully considers the extreme industrial and special field requirements in its design, using military grade components, multiple electromagnetic shielding technology, and redundant communication link design. It can withstand harsh environments such as -40 ℃~+85 ℃ wide temperature range, strong electromagnetic interference, and severe vibration. It is suitable for critical communication scenarios that require long-term uninterrupted operation, such as industrial Ethernet backbone transmission, national defense command system data exchange, and core communication links of telecommunications base stations. It can effectively ensure the integrity, real-time performance, and security of data transmission, and avoid system failures caused by communication interruptions.
2、 Technical parameters (inferred based on MVME series characteristics and universal design of high-end communication modules)
Core communication interface configuration
Ethernet Interface: Equipped with 2-4 Gigabit Ethernet interfaces (10/100/1000Mbps adaptive), supporting full duplex/half duplex mode switching, using RJ45 or SFP optical module interfaces (some models are optional), SFP interface supports single-mode/multi-mode fiber transmission, with a transmission distance of up to 10km (single-mode fiber) or 550m (multi-mode fiber), meeting the long-distance and anti-interference industrial Ethernet backbone transmission requirements
Motorola MVME332 01-W3504B-01D數字量控制板卡 產品展示
產品視頻
