Motorola MVME923 1982背板模塊
1.產 品 資 料 介 紹：
- 總線兼容性與傳輸能力
- 總線標準：完全兼容 VME64/VMEbus 標準，支持 A16/A24/A32 地址模式與 D08/D16/D32 數據模式，可滿足不同數據量傳輸需求 ——A16 模式適用于小規模 I/O 地址訪問（如 8 位 / 16 位傳感器信號），A32 模式支持大規模內存與外設地址空間（如 32 位單板計算機的主存訪問）；D32 數據模式最大傳輸速率可達 40MB/s，滿足工業自動化中高速數據采集（如每秒數十 MB 的傳感器數據回傳）與控制指令下發的實時性需求。
Motorola MVME923 1982背板模塊 英文資料：
Introduction to Motorola MVME923 1982 VME Bus Backplane Module
The Motorola MVME923 1982 VME bus backplane module is the core interconnect component for building VME architecture embedded systems. It serves as the "data transmission hub" for MVME series single board computers (SBC) and various functional modules (such as I/O modules, communication modules, and control modules). Through standardized VME bus interfaces, it enables high-speed and reliable interaction of data, addresses, and control signals between various boards within the system. It has the core characteristics of "stable interconnection, flexible expansion, compatibility and universality", providing underlying hardware support for multi module systems in industrial automation, embedded control, testing and measurement fields, and is a key basic component to ensure the overall performance and stability of VME systems.
1、 Product Overview
The Motorola MVME923 1982 VME bus backplane module is positioned in the underlying interconnect market of VME systems, focusing on solving the core requirements of "multi module collaboration, efficient signal transmission, and flexible system construction". Its hardware architecture strictly follows the VME bus standard, and through precise PCB wiring design and industrial grade signal processing circuits, a standardized bus transmission link is built - it can adapt to all categories of modules in the MVME series (such as MVME5110-2261 single board computer, MVME332 digital control board), while ensuring real-time and complete data transmission between different modules, avoiding system collaborative failures caused by signal interference or transmission delay.
This module is designed with full consideration of system scalability and environmental adaptability. It adopts a modular slot layout and industrial grade materials, supporting flexible configuration of 6-21 slots (adjustable according to the size of the VME chassis), and can adapt to different needs from small and medium-sized embedded systems (such as 6-slot laboratory testing platforms) to large and complex control systems (such as 21 slot industrial automation cabinets); Simultaneously possessing excellent resistance to electromagnetic interference and temperature adaptability, it can operate stably in harsh environments such as industrial sites and military equipment, providing solid support for the modular integration and long-term reliable operation of VME systems.
2、 Technical parameters (based on VME bus standards and product characteristics)
Bus compatibility and transmission capability
Bus standard: Fully compatible with VME64/VMEbus standards, supporting A16/A24/A32 address mode and D08/D16/D32 data mode to meet different data transmission requirements - A16 mode is suitable for small-scale I/O address access (such as 8-bit/16 bit sensor signals), A32 mode supports large-scale internal and external memory address spaces (such as main memory access of 32-bit single board computers); The maximum transmission rate of D32 data mode can reach 40MB/s, meeting the real-time requirements of high-speed data acquisition (such as sensor data feedback of tens of MB per second) and control command issuance in industrial automation

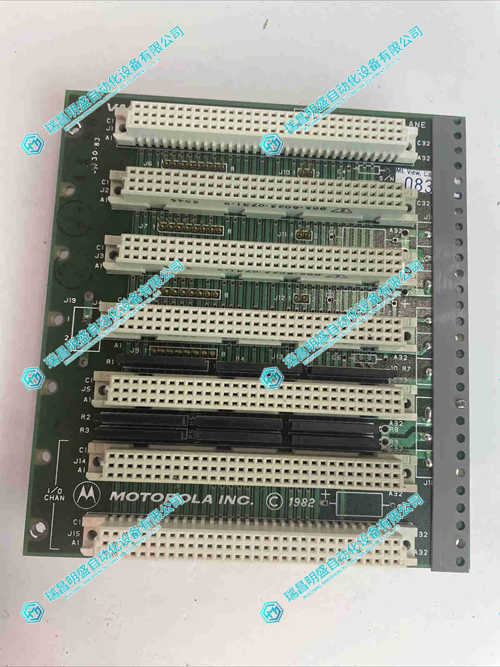

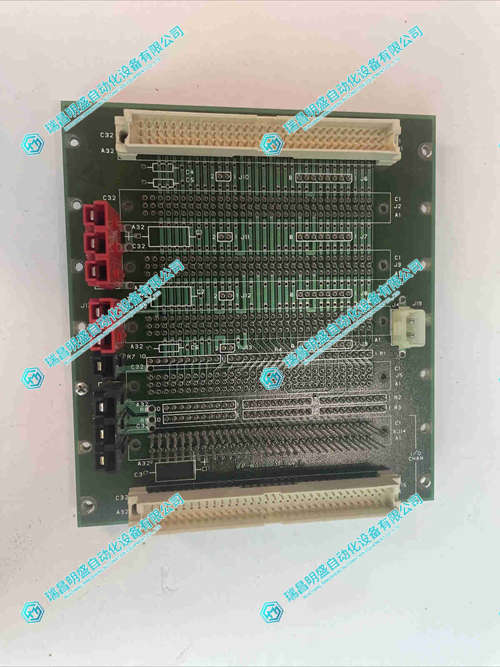

Motorola MVME923 1982背板模塊 產品展示
