FORCE COMPUTERS SYS68K/CPU-60D/32/C2計算機控制板

1.產 品 資 料 介 紹：

核心技術特性

• 處理器與運算能力：搭載 Motorola MC68060 處理器，主頻 32 MHz，集成整數運算單元與浮點單元（FPU），無需額外協處理器即可高效處理復雜數學運算，滿足工業控制、科學計算等場景的高性能需求。
• 總線與擴展性：完全兼容 VMEbus 標準，支持主控與從屬模式，可與多類型擴展模塊互聯，輕松構建分布式多板系統，適應復雜系統架構。
• 存儲與接口：支持 DRAM、SRAM、EPROM/Flash 等多層次存儲擴展，平衡數據緩存與程序固化需求；配備串口、并口及可擴展外設接口，方便連接外部設備與定制化模塊。
• 系統兼容性：適配 VxWorks、OS-9、UNIX 等實時 / 多任務操作系統，支持多任務調度與實時響應，便于應用開發與移植。
• 可靠性設計：采用工業級元器件與抗干擾電路設計，能適應長時間連續運行、復雜電磁環境及高低溫、振動等惡劣工況，保障關鍵任務的穩定性。

主要應用領域

• 工業自動化：作為生產線過程控制、實時監控系統的核心，支撐 SCADA、DCS 等系統的高精度數據處理與控制指令執行，確保生產流程高效協同。
• 電力與能源：應用于電廠機組控制、保護系統及電網調度、輸變電自動化設備，實現電力參數的實時監測與精準調控，保障能源系統穩定運行。
• 交通運輸：集成于鐵路信號、列車控制系統及航空航天地面監控、飛行控制設備，提供高可靠的嵌入式計算支持，助力交通與航天領域的安全操作。
• 通信與網絡：作為電信級設備的核心計算單元，處理數據交換、網絡協議及實時數據傳輸任務，保障通信網絡的高效與穩定。
• 醫療與科研：用于醫療影像處理、精密檢測設備及科研實驗平臺，承擔數據采集、復雜運算等任務，滿足精密儀器對處理能力的要求。
• 國防與軍工：適配導彈、雷達、火控系統的實時計算核心及戰術通信、指揮控制系統，提供抗干擾、高連續的嵌入式計算支持，保障軍事任務的可靠性。

FORCE COMPUTERS SYS68K/CPU-60D/32/C2計算機控制板 英文資料：

The FORCE COMPUTERS SYS68K/CPU-60D/32/C2 computer control board is a high-performance VMEbus single board computer based on the Motorola 68060 processor. With 32-bit processing power and built-in floating-point arithmetic unit as its core advantages, it is designed for industrial and professional fields that require strict real-time and reliability requirements.

Core technical characteristics

Processor and Computing Capability: Equipped with Motorola MC68060 processor, with a main frequency of 32 MHz, it integrates integer and floating-point units (FPUs) to efficiently process complex mathematical operations without the need for additional co processors, meeting the high-performance requirements of industrial control, scientific computing, and other scenarios.

Bus and Scalability: Fully compatible with the VMEbus standard, supports master and slave modes, can interconnect with multiple types of expansion modules, easily builds distributed multi board systems, and adapts to complex system architectures.

Storage and Interface: Supports multi-level storage expansion such as DRAM, SRAM, EPROM/Flash, balancing data caching and program solidification requirements; Equipped with serial port, parallel port, and expandable peripheral interfaces, it is convenient to connect external devices and customized modules.

System compatibility: Compatible with real-time/multitasking operating systems such as VxWorks, OS-9, UNIX, etc., supporting multitasking scheduling and real-time response, facilitating application development and porting.

Reliability design: Adopting industrial grade components and anti-interference circuit design, it can adapt to long-term continuous operation, complex electromagnetic environment, high and low temperature, vibration and other harsh working conditions, ensuring the stability of key tasks.

Main application areas

Industrial automation: As the core of production line process control and real-time monitoring systems, it supports high-precision data processing and control instruction execution of SCADA, DCS and other systems, ensuring efficient collaboration of production processes.

Electricity and Energy: Applied to power plant unit control, protection systems, power grid dispatch, and transmission automation equipment, to achieve real-time monitoring and precise control of power parameters, ensuring stable operation of the energy system.

Transportation: Integrated into railway signaling, train control systems, aerospace ground monitoring, and flight control equipment, providing highly reliable embedded computing support to assist in safe operations in the transportation and aerospace fields.

Communication and Network: As the core computing unit of telecom grade equipment, it processes data exchange, network protocols, and real-time data transmission tasks to ensure the efficiency and stability of communication networks.

Medical and scientific research: used for medical image processing, precision detection equipment, and scientific research experimental platforms, undertaking tasks such as data acquisition and complex calculations to meet the processing requirements of precision instruments.

National Defense and Military Industry: Real time computing cores adapted to missiles, radars, and fire control systems, as well as tactical communication and command control systems, providing anti-interference and high continuity embedded computing support to ensure the reliability of military missions.

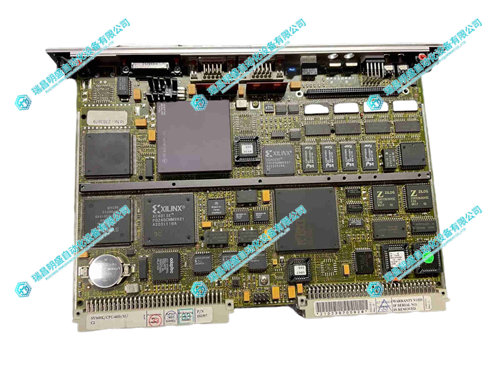

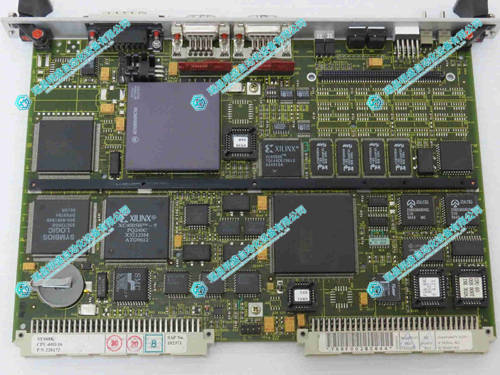

FORCE COMPUTERS SYS68K/CPU-60D/32/C2計算機控制板  產      品      展      示
