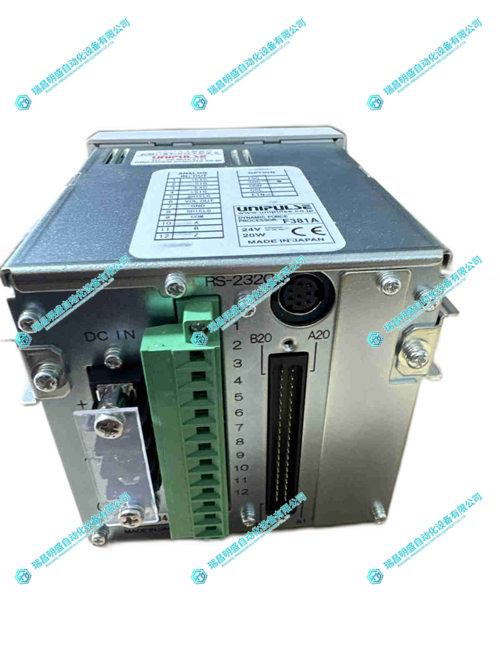

FORCE COMPUTERS F381A壓力傳感器
1.產 品 資 料 介 紹：
核心技術參數
典型應用
產品特點
選型與注意事項
FORCE COMPUTERS F381A壓力傳感器 英文資料：
FORCE COMPUTERS F381A is a high-precision pressure sensor based on strain gauge technology, which supports dynamic measurement of physical quantities such as pressure, load, and torque, and has waveform display and analysis functions. It is suitable for industrial and scientific research occasions that require high-speed acquisition, real-time monitoring, and judgment.
Core technical parameters
Project parameters
Sensor type: resistance strain gauge
Excitation voltage DC 10 V or 2.5 V ± 10% (default 2.5 V)
Signal input range -3.0 mV/V to+3.0 mV/V
Nonlinear accuracy ≤ 0.02% FS ± 1digit (3.0 mV/V input)
Zero drift ≤ 0.5 μ V/℃ RTI
Gain drift ≤ 0.01%/℃
A/D sampling rate of 4000 times per second
A/D resolution of 24 bits
Effective resolution of approximately 1/30000
Analog voltage output 1 mV/V input ≈ 2 V (load ≥ 2 k Ω)
Displacement input pulse (open collector/line drive) or voltage (optional)
Display 7-inch color touch LCD
Storage SD card (optional)
Communication interfaces such as Ethernet, RS-232, DeviceNet, CC Link, etc
Typical Applications
Industrial automation and process control: pressure monitoring of hydraulic/pneumatic systems, safety control of chemical/petroleum/metallurgical pipelines and storage tanks.
Electricity and Energy: Measurement of Pressure in Thermal/Nuclear Power Steam Pipelines, Wind/Hydroelectric Hydraulic Circuits.
Transportation: Railway braking system, aerospace hydraulic and fuel system pressure detection.
Medical equipment: gas or liquid pressure measurement devices such as ventilators, anesthesia machines, blood pressure monitoring, etc.
Research and experimentation: Fluid mechanics experiments, high-precision equipment calibration, and data acquisition.
Environment and Safety: Real time pressure monitoring of urban gas pipelines, industrial safety valves, and pressure relief systems.
Product Features
High resolution and high-speed sampling: 4000 samples per second, 24 bit resolution, capable of capturing small pressure changes.
Multiple interfaces: Supports Ethernet, RS-232, DeviceNet, CC Link, etc., making it easy to integrate into PLC or control systems.
Waveform display and analysis: It can intuitively compare the set value with the actual measured waveform, achieving rapid fault diagnosis and optimization.
Data storage: Historical data can be recorded through an SD card for easy traceability and analysis.
Selection and Precautions
Pressure range: A strain gauge pressure sensor that matches the measured medium and maximum pressure should be selected to ensure operation within the input range of -3.0 to+3.0 mV/V.
FORCE COMPUTERS F381A壓力傳感器 產 品 展 示
FORCE COMPUTERS F381A壓力傳感器 產品視頻
