Motorola MVME5110-2261 單板計算機
1.產 品 資 料 介 紹：
- 核心運算單元
- 處理器性能：搭載 Motorola PowerPC 750（MPC750）處理器，型號編號 “2261” 對應 366MHz 主頻配置，32 位架構，具備出色的整數運算與浮點運算能力（浮點運算精度符合 IEEE 754 標準），可快速處理復雜控制算法（如 PID 閉環控制、多變量協同運算）與高速數據吞吐任務（如每秒數十 MB 的傳感器數據處理），滿足國防雷達信號預處理、工業生產線實時控制等場景的算力需求。
- 緩存層級：采用 “L1+L2” 二級緩存架構，一級緩存為 32KB 指令緩存 + 32KB 數據緩存，可減少處理器對主存的訪問延遲，提升指令執行效率；二級緩存為 1MB 外部同步緩存，通過硬件加速數據讀寫，進一步優化多任務并行處理性能（如同時運行數據采集、控制輸出、通信協議解析三個任務時，仍能保持微秒級響應速度）。
Motorola MVME5110-2261 單板計算機 英文資料：
Introduction to Motorola MVME5110-2261 Single Board Computer
The Motorola MVME5110-2261 Single Board Computer (SBC) is a core model in the MVME5100 series, built on the PowerPC architecture and deeply adapted to the VMEbus system. It is designed specifically for industries, defense, telecommunications, and other fields that require strict equipment reliability and stability. It has the core characteristics of "high-performance computing, flexible expansion, and long-term stability", integrating central processing, data exchange, and peripheral control functions. It can serve as the control center of complex embedded systems, providing continuous and reliable computing power support for various critical tasks in extreme working conditions and high load operating environments. It is one of Motorola's classic products in the field of high reliability embedded computing.
1、 Product Overview
The Motorola MVME5110-2261 single board computer is positioned in the mid to high end embedded computing market, focusing on addressing the core requirement of balancing computational performance and system stability in high reliability scenarios. Its hardware architecture is built around the PowerPC 750 processor, achieving a three-dimensional collaboration of "computing power expansion compatibility" through optimized cache levels, expandable memory design, and rich bus and I/O interfaces. It not only meets the real-time data processing needs of industrial automation, defense equipment, and other scenarios, but also flexibly interfaces with various functional modules (such as data acquisition cards and communication boards) through the VME64 and PCI bus interfaces. At the same time, it is compatible with mainstream embedded operating systems, reducing the difficulty of system integration.
This product is designed with comprehensive consideration of adaptability to harsh environments, using industrial grade components, anti electromagnetic interference circuits, and redundant power protection mechanisms. It can withstand extreme working conditions such as high and low temperatures (usually supporting a wide temperature range of -40 ℃~+85 ℃), strong vibrations, electromagnetic radiation, etc. It is particularly suitable for scenarios that require long-term uninterrupted operation, such as defense command and control equipment, telecommunications core switches, industrial process control systems, etc. It can effectively reduce the risk of system downtime caused by hardware failures and ensure the continuous execution of critical tasks.
2、 Technical parameters (inferred based on the characteristics and model configuration of MVME5110 series)
Core computing unit
Processor Performance: Equipped with Motorola PowerPC 750 (MPC750) processor, model number "2261" corresponds to a 366MHz main frequency configuration, 32-bit architecture, and excellent integer and floating-point operation capabilities (floating-point operation accuracy meets IEEE 754 standard), it can quickly process complex control algorithms (such as PID closed-loop control, multivariable collaborative operation) and high-speed data throughput tasks (such as processing sensor data of tens of MB per second), meeting the computing power requirements of defense radar signal preprocessing, industrial production line real-time control and other scenarios.

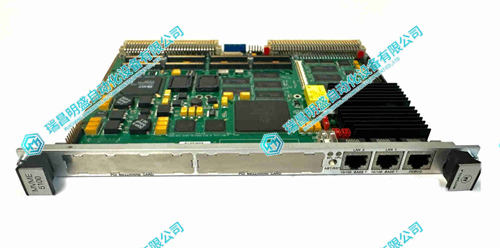

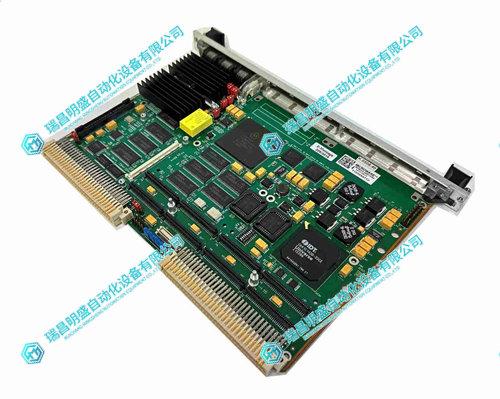

Motorola MVME5110-2261 單板計算機 產品展示
產品視頻
