GE DS200PCCAG1ACB熱電偶端接板

1.產 品 資 料 介 紹：

中文資料：

GE DS200PCCAG1ACB 熱電偶端接板 是一款專門設計用于工業驅動控制和能源管理系統的組件，提供熱電偶信號的連接、轉換和處理功能。該板卡可接收多路熱電偶輸入，準確測量和傳輸溫度信號，為系統溫度監控和保護提供支持。

主要功能與特點

1. 熱電偶信號輸入：

   • 支持多種類型的熱電偶（如 K 型、J 型等）。
   • 提供高精度的溫度信號采集和處理。

2. 信號處理功能：

   • 實現熱電偶信號的線性化處理和電壓轉換。
   • 內置補償功能，修正環境溫度對測量的影響。

3. 接口與兼容性：

   • 配備標準化接線端子，便于熱電偶的快速連接。
   • 與 GE 的驅動器控制系統（如 EX2000 和其他系列）兼容。

4. 實時監控與保護：

   • 實時傳輸溫度數據至驅動器控制系統，用于監控運行狀態。
   • 配備過熱保護功能，避免設備因溫度異常導致?lián)p壞。

5. 模塊化設計：

   • 結構緊湊，便于安裝和維護。
   • 可作為系統的獨立模塊升級或替換。

6. 工業級設計：

   • 高抗干擾能力，適應電磁復雜的工業環境。
   • 支持寬溫運行，適應苛刻的工業操作條件。

英文資料：

The GE DS200PCCAG1ACB thermocouple terminal block is a component specifically designed for industrial drive control and energy management systems, providing functions for connecting, converting, and processing thermocouple signals. This board can receive multiple thermocouple inputs, accurately measure and transmit temperature signals, and provide support for system temperature monitoring and protection.

Main functions and features

Thermocouple signal input:

Supports multiple types of thermocouples (such as K-type, J-type, etc.).

Provide high-precision temperature signal acquisition and processing.

Signal processing function:

Realize linearization processing and voltage conversion of thermocouple signals.

Built in compensation function to correct the impact of environmental temperature on measurement.

Interface and compatibility:

Equipped with standardized wiring terminals for quick connection of thermocouples.

Compatible with GE's drive control systems (such as EX2000 and other series).

Real time monitoring and protection:

Real time transmission of temperature data to the driver control system for monitoring operational status.

Equipped with overheat protection function to prevent equipment damage caused by abnormal temperature.

Modular design:

Compact structure, easy to install and maintain.

Can be upgraded or replaced as an independent module of the system.

Industrial grade design:

High anti-interference ability, suitable for complex electromagnetic industrial environments.

Support wide temperature operation and adapt to harsh industrial operating conditions.

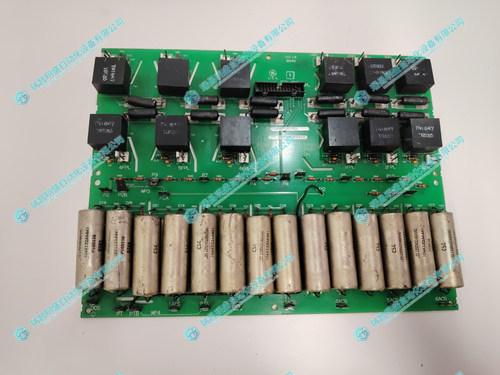

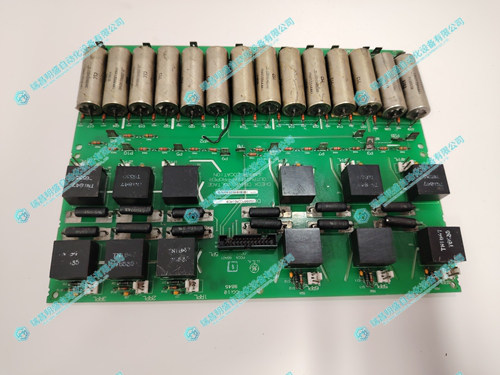

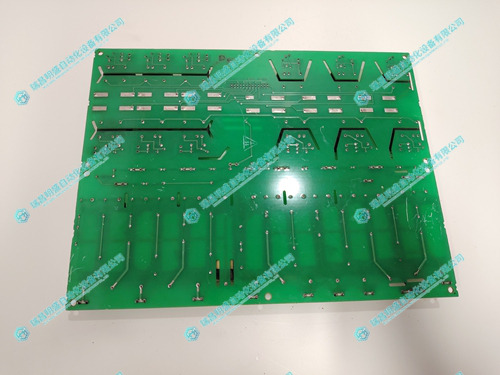

2.產      品      展      示
