Multilin C30J03HCF6HH6H繼電器控制器 是 GE（現為GE智能電網）MULTILIN 系列中的一個繼電器控制和保護設備。

 Multilin C30J03HCF6HH6H繼電器控制器 詳情介紹：

MULTILIN C30J03HCF6HH6H 繼電器控制器是 GE（現為GE智能電網）MULTILIN 系列中的一個繼電器控制和保護設備。它用于電力系統的自動化控制和保護，能夠提供高效的故障檢測、系統控制和監測功能。

主要特點和功能

1. 繼電器控制

• 自動化控制：支持自動化的繼電器控制，包括開關操作、保護動作和故障隔離。
• 手動控制：提供手動操作選項，允許操作員直接控制繼電器。

2. 保護功能

• 多種保護功能：包括過電流、接地故障、過壓、欠壓等保護功能，適應不同電力系統的需求。
• 差動保護：針對變壓器等設備提供差動保護，以檢測和隔離內部故障。

3. 監測與診斷

• 實時監測：監控電力系統中的電流、電壓、功率等參數，提供實時數據以進行系統分析。
• 故障記錄：記錄故障和事件數據，支持后續的故障分析和系統維護。
• 狀態監測：監測設備的運行狀態，包括溫度、油位等，以確保設備的正常運行。

4. 通信與集成

• 支持多種協議：兼容Modbus、DNP3、IEC 61850等通信協議，方便與其他系統和設備集成。
• 網絡接口：提供網絡接口，支持遠程監控和控制，提高操作靈活性。

5. 用戶界面

• 圖形化顯示：配備直觀的圖形用戶界面，便于配置和管理繼電器控制器。
• 遠程管理：支持遠程訪問和控制，允許操作員從不同地點管理系統。

6. 可靠性和耐用性

• 堅固設計：設計用于適應各種工業環境，具有高耐用性和穩定性。
• 自診斷功能：具備自診斷能力，能夠檢測和報告系統中的問題。

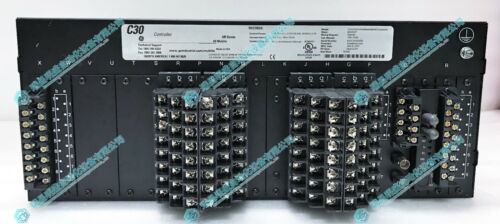

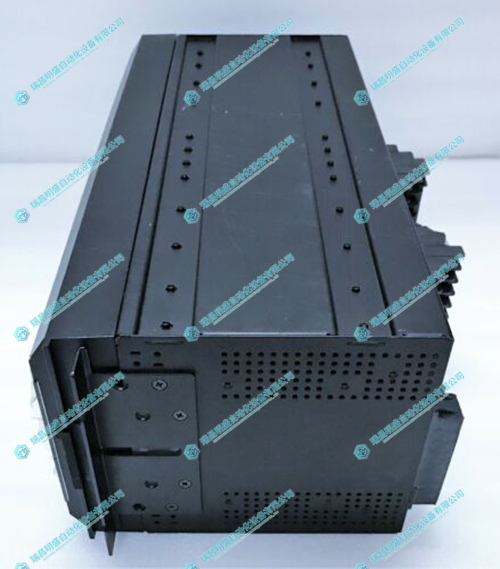

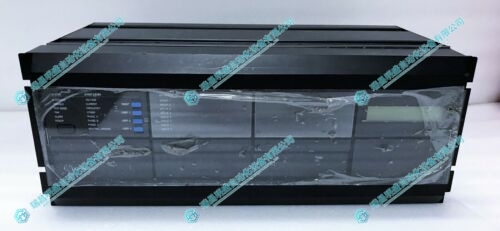

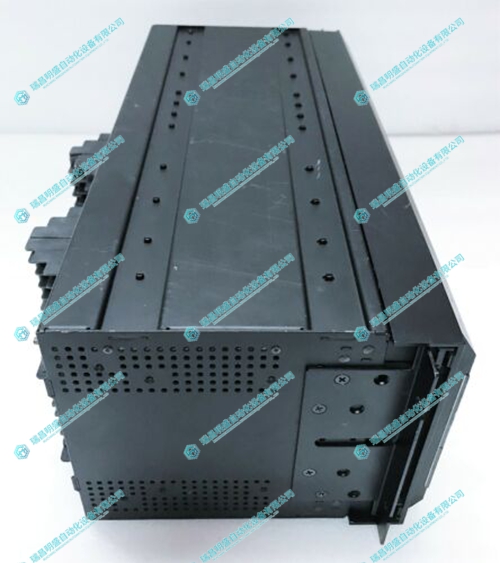

 Multilin C30J03HCF6HH6H繼電器控制器 實物圖片：

english introduction:

The MULTILIN C30J03HCF6HH6H relay controller is a relay control and protection device in the MULTILIN series of GE (now GE Smart Grid). It is used for automation control and protection of power systems, providing efficient fault detection, system control, and monitoring functions.

Main features and functions

Relay control

Automated control: Supports automated relay control, including switch operation, protection action, and fault isolation.

Manual control: Provides manual operation options, allowing operators to directly control relays.

Protection function

Multiple protection functions: including overcurrent, ground fault, overvoltage, undervoltage and other protection functions, to meet the needs of different power systems.

Differential protection: Provides differential protection for equipment such as transformers to detect and isolate internal faults.

Monitoring and Diagnosis

Real time monitoring: Monitor parameters such as current, voltage, and power in the power system, providing real-time data for system analysis.

Fault record: Record fault and event data to support subsequent fault analysis and system maintenance.

Status monitoring: Monitor the operating status of equipment, including temperature, oil level, etc., to ensure the normal operation of the equipment.

Communication and Integration

Supports multiple protocols: compatible with communication protocols such as Modbus, DNP3, IEC 61850, etc., facilitating integration with other systems and devices.

Network interface: Provides network interface, supports remote monitoring and control, and improves operational flexibility.

user interface

Graphic display: Equipped with an intuitive graphical user interface for easy configuration and management of relay controllers.

Remote management: supports remote access and control, allowing operators to manage the system from different locations.

Reliability and durability

Durable design: Designed to adapt to various industrial environments, with high durability and stability.

Self diagnostic function: Capable of self diagnosis, able to detect and report problems in the system.
