3BSE008538R1 是 ABB 生產的一種模塊總線終端器（Termination Module），用于ABB的某些自動化和控制系統中，例如S800 I/O系統?？偩€終端器在工業網絡中起著重要的作用，尤其是在總線結構的網絡中，它們用來吸收信號反射，確保數據傳輸?shù)耐暾浴?/span>

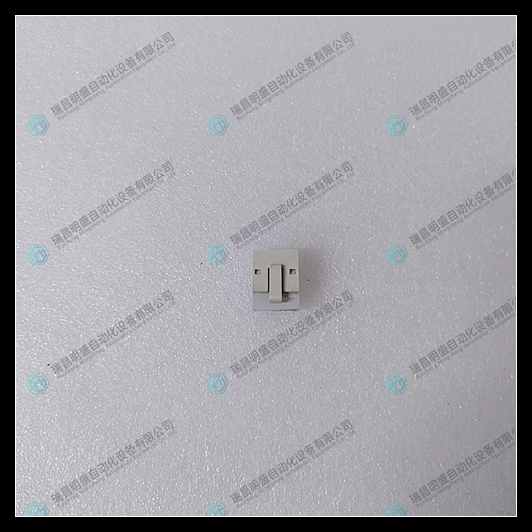

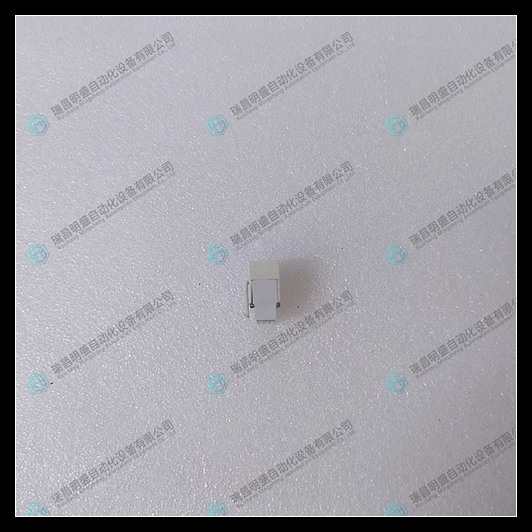

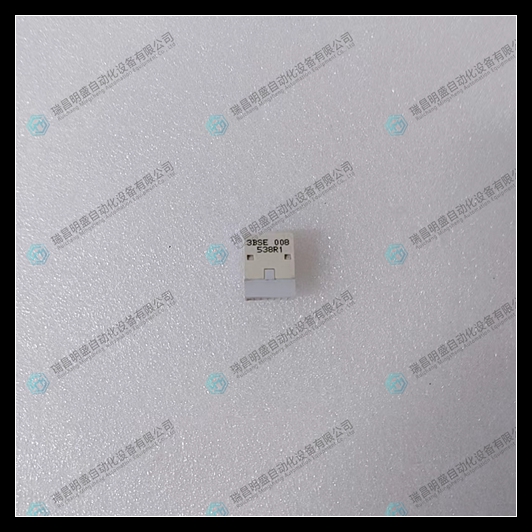

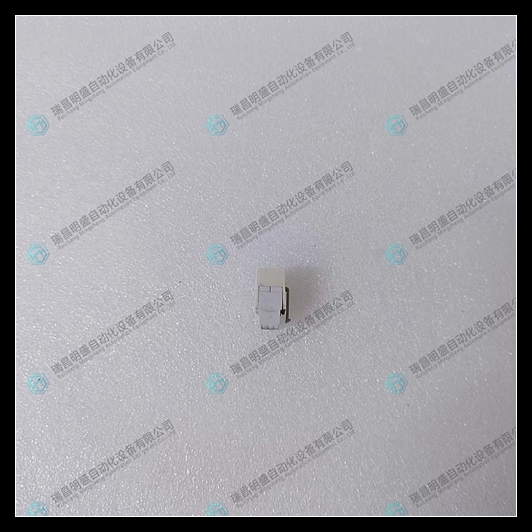

3BSE008538R1 模塊總線終端器產品圖片展示

3BSE008538R1 模塊總線終端器實物視頻展示

3BSE008538R1 模塊總線終端器特點和注意事項

特點：

Features:

Signal termination: Place a terminator at the end of the bus network, which can absorb signals and prevent them from reflecting at the end of the cable, thereby maintaining signal integrity and network stability.

Resistance matching: Terminators typically include a 120 ohm terminal resistor to match the characteristic impedance of the bus cable, reducing signal reflection and distortion.

Plug and Play: Designed for quick deployment and maintenance in the network.

Reliability: High quality manufacturing ensures long-term reliability and stability, suitable for continuous operation in industrial environments.

Scope of application: Suitable for ABB S800 I/O systems and other compatible industrial bus networks, such as DeviceNet or PROFIBUS.

Easy to maintain: When maintenance or replacement is needed, the terminal can be easily disassembled and replaced without the need for complex operations.

Notes:

Correct installation location: Ensure that the terminal is installed at the end of the bus network, otherwise it may cause signal reflection and affect the quality of data transmission.

Dual ended network: If the network is dual ended (with devices on both ends), a terminal needs to be installed on each end to avoid signal reflection in the middle.

Avoid short circuits: Do not short circuit the ends of the bus network without using a terminal, as this can cause signal distortion and network failures.

Power off operation: When installing or replacing the terminal, the power should be disconnected first to avoid electrical hazards.

Check compatibility: Before use, confirm that the terminal is compatible with your existing bus system to avoid malfunctions caused by incompatibility.

Environmental conditions: Ensure that the terminal is installed under suitable environmental conditions, avoiding the influence of high temperature, humidity, or corrosive gases.

Regular check: Regularly check the connection and status of the terminal to ensure its normal operation and avoid network interruptions.

Technical documentation: During installation and use, follow the technical documentation and operating instructions provided by ABB to ensure proper installation and maintenance.

Technical support: When encountering any problems, you should promptly contact ABB's technical support for professional assistance and guidance.
