LD800HSE 3BDH000320R02連接模塊是ABB公司生產的一種專門用于分布式控制系統中的通信和控制模塊。這個模塊扮演著H1現場總線和HSE（High Speed Ethernet）子網之間的網關角色，主要用于工業自動化和控制應用中。

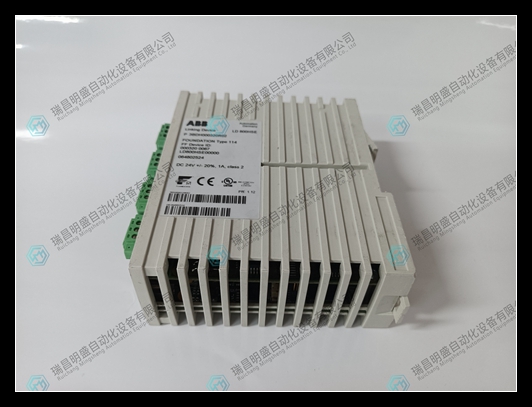

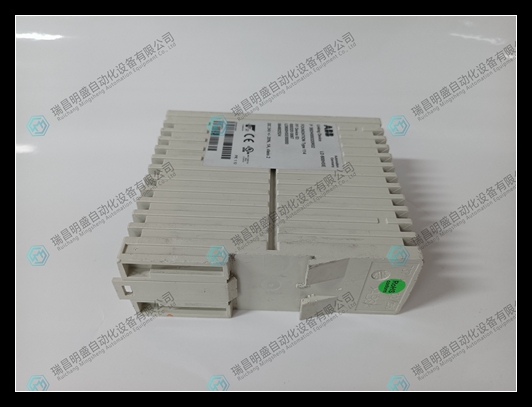

LD800HSE 3BDH000320R02連接模塊產品圖片展示

LD800HSE 3BDH000320R02連接模塊實物視頻展示

LD800HSE 3BDH000320R02連接模塊特點和注意事項

特點：

Features:

Distributed Control System Center Module: LD800HSE 3BDH000320R02, as part of the distributed control system, is responsible for managing and coordinating various nodes and equipment within the system.

HSE subnet connection: As a gateway between on-site equipment on the H1 link and the HSE subnet, it can republish process data from H1 to HSE and in the opposite direction.

Dual CPU Full Digital Control: Adopting a 32-bit dual CPU for full digital control, it is particularly suitable for advanced servo control of motors, with high-speed data processing capabilities and intelligent control technology.

Analog and digital input/output: Based on different descriptions, the module can provide analog input, digital input (such as 8-channel), and output functions, indicating its extensive I/O processing capabilities.

Structured programming: The lack of specific jump instructions in the design encourages users to apply structured programming, reducing error probability and improving code clarity.

TML program support: Structured charts can be converted into TML (Triq Machine Language) programs, which means it has good compatibility with ABB's TRICONEX and other systems.

Notes:

Environmental adaptability: Ensure that the module is installed in an environment that meets its operating temperature and humidity requirements, avoiding excessive temperature changes, humidity, dust, and corrosive gases.

Electrical connection: Properly perform electrical connections to ensure that all wiring is carried out according to the manufacturer's instructions to prevent electrical faults or safety hazards.

Maintenance and updates: Regular maintenance checks are conducted, including cleaning and checking the physical condition of modules. At the same time, pay attention to the manufacturer's update notifications to ensure that the latest firmware or software version is being used.

Programming and Configuration: Use structured programming methods for module configuration, following ABB's programming guidelines and recommended practices to ensure code accuracy and efficiency.

Safety regulations: Follow all safety regulations during installation, configuration, and maintenance, including but not limited to electrical safety, anti-static measures, and correct operating procedures.

Professional training: Ensure that operation and maintenance personnel receive appropriate training to understand the functions, limitations, and best practices of the modules.
