ABB   UNITROL 1010高性能數據采集模塊  一款高性能數據采集模塊，具備多通道的模擬輸入功能，可以同時采集多個模擬信號。這種特性使其適用于需要同時測量多個信號的應用場景，如電力系統的監控、電機控制、工業自動化等。

ABB   UNITROL 1010高性能數據采集模塊   詳情介紹：

UNITROL 1010是一款高性能數據采集模塊，具備多通道的模擬輸入功能，可以同時采集多個模擬信號。這種特性使其適用于需要同時測量多個信號的應用場景，如電力系統的監控、電機控制、工業自動化等。特別是在發電廠的勵磁控制系統中，UNITROL 1010模塊能夠?qū)崟r采集發電機的電流、電壓、功率等參數，并將其傳輸?shù)絼畲趴刂葡到y(tǒng)中，實現精確的勵磁控制。

該模塊具有高速采樣率和高分辨率的特點，這保證了精確的信號重構和捕捉瞬態事件，提供了豐富的細節和更高的測量精度。為了滿足不同信號幅值的測量需求，它支持靈活的輸入范圍和增益控制，并提供了多個可編程增益放大器以實現輸入信號的調整和優化。

此外，UNITROL 1010模塊還支持外部觸發和同步操作功能，這使其能夠與其他設備進行精確的時鐘同步，進一步提高數據采集的準確性和可靠性。其以太網、USB連接以及數據和事件記錄等功能也增強了其實用性。

在設計上，UNITROL 1010是為勵磁電流最高10A的設備設計的小型化設備，并基于先進的微處理器技術和允許用于持續操作的電流輸出高達10ADC的IGBT半導體器件。它能夠在嚴苛條件和不同溫度范圍下進行高性能工作，并且完全符合DNV和UL標準。

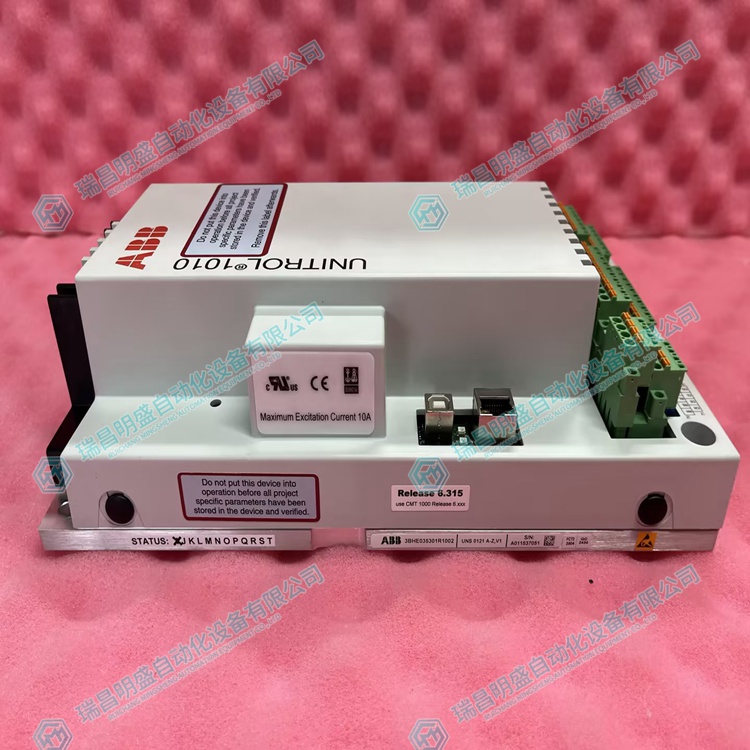

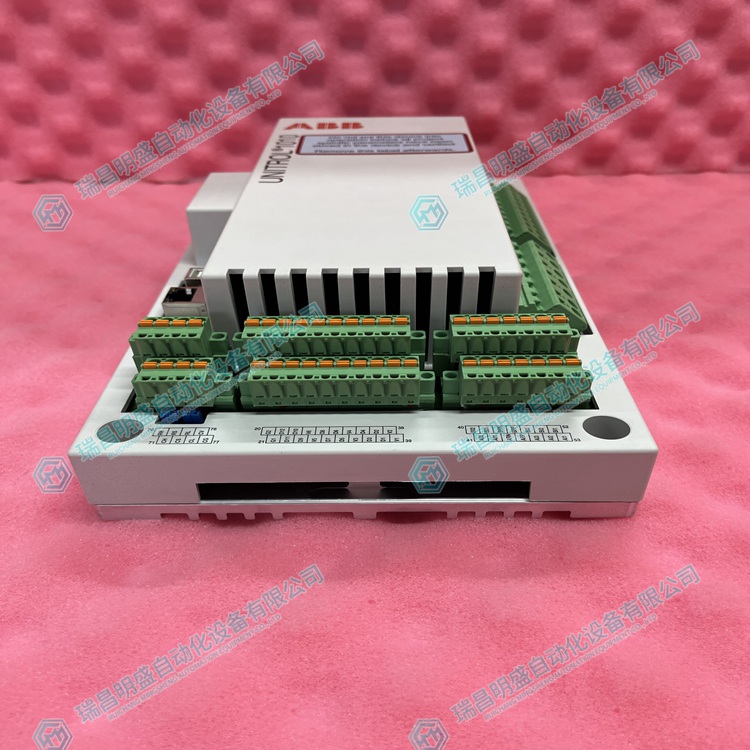

ABB   UNITROL 1010高性能數據采集模塊   實物圖片：

ABB   UNITROL 1010高性能數據采集模塊    實物視頻

ABB UNITROL 1010 High Performance Data Acquisition Module Details Introduction:

UNITROL 1010 is a high-performance data acquisition module with multi-channel analog input function, which can simultaneously collect multiple analog signals. This feature makes it suitable for application scenarios that require simultaneous measurement of multiple signals, such as power system monitoring, motor control, industrial automation, etc. Especially in the excitation control system of power plants, the UNITROL 1010 module can collect real-time parameters such as generator current, voltage, and power, and transmit them to the excitation control system to achieve precise excitation control.

This module has the characteristics of high sampling rate and high resolution, which ensures accurate signal reconstruction and capture of transient events, providing rich details and higher measurement accuracy. In order to meet the measurement needs of different signal amplitudes, it supports flexible input range and gain control, and provides multiple programmable gain amplifiers to achieve input signal adjustment and optimization.

In addition, the UNITROL 1010 module also supports external triggering and synchronization operations, which enables it to achieve precise clock synchronization with other devices, further improving the accuracy and reliability of data collection. Its Ethernet, USB connection, data and event recording functions have also enhanced its practicality.

In terms of design, UNITROL 1010 is a miniaturized device designed for devices with excitation currents up to 10A, based on advanced microprocessor technology and IGBT semiconductor devices that allow for continuous operation with current output up to 10ADC. It can perform high-performance work under harsh conditions and different temperature ranges, and fully complies with DNV and UL standards.
