PTM PSMU-350-3 CPCI-350Q-P-38 緊湊型電源模塊 是一款緊湊型電源模塊，專為計算機通信和工業控制系統中的 CompactPCI（CPCI）標準而設計。
PTM PSMU-350-3 CPCI-350Q-P-38 緊湊型電源模塊 詳情介紹：
PTM PSMU-350-3 CPCI-350Q-P-38 是一款緊湊型電源模塊，專為計算機通信和工業控制系統中的 CompactPCI（CPCI）標準而設計。該電源模塊主要用于提供穩定、可靠的電源供應，適用于需要高性能和高可靠性的嵌入式系統。
主要功能和特點：
緊湊型設計：
- CPCI 兼容：該電源模塊符合 CompactPCI 標準，適合安裝在 3U 或 6U CPCI 機架中，廣泛用于嵌入式計算系統中。
- 高功率密度：設計緊湊，能夠在有限的空間內提供高功率輸出，適用于需要緊湊型設計的應用場景。
多輸出電源：
- 多路輸出：PSMU-350-3 CPCI-350Q-P-38 提供多路直流電壓輸出，通常包括 +3.3V、+5V、±12V 等，為系統中的多個子系統提供電源。
- 高效率：采用高效電源轉換技術，減少能源損耗，提高整體系統的能源效率。
可靠性和穩定性：
- 穩壓設計：內置精密穩壓電路，保證輸出電壓的穩定性，適應嚴苛的工業環境。
- 過壓/過流保護：配備過壓、過流、短路保護功能，增強系統的安全性，防止意外故障對系統造成損害。
工業應用：
- 廣泛適用：適用于通信設備、工業控制系統、醫療設備、國防和航空航天等領域的嵌入式系統。
- 高可靠性：設計符合工業級標準，能夠在惡劣環境下長時間穩定工作。
熱管理：
- 高效散熱：模塊設計有優化的散熱系統，確保在高負載下能夠保持穩定的工作溫度，延長模塊使用壽命。
- 主動/被動冷卻：支持主動或被動冷卻選項，適應不同的系統設計需求。

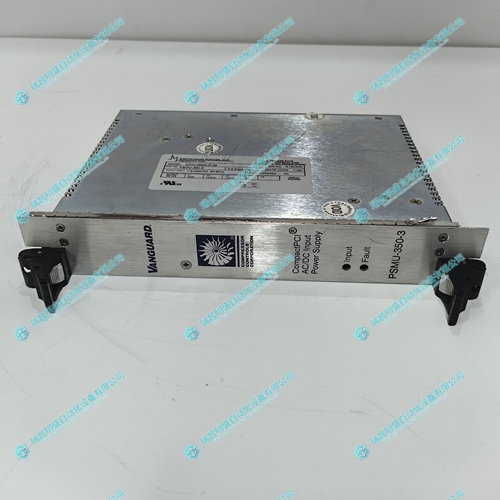

PTM PSMU-350-3 CPCI-350Q-P-38 緊湊型電源模塊 實物圖片：
english introduction:
PTM PSMU-350-3 CPCI-350Q-P-38 is a compact power module designed specifically for the CompactPCI (CPCI) standard in computer communication and industrial control systems. This power module is mainly used to provide stable and reliable power supply, suitable for embedded systems that require high performance and reliability.
Main functions and features:
Compact design:
CPCI compatibility: This power module complies with the CompactPCI standard and is suitable for installation in 3U or 6U CPCI racks, widely used in embedded computing systems.
High power density: Compact design that can provide high power output in limited space, suitable for applications that require compact design.
Multi output power supply:
Multi channel output: PSMU-350-3 CPCI-350Q-P-38 provides multiple DC voltage outputs, typically including+3.3V,+5V, ± 12V, etc., to provide power for multiple subsystems in the system.
High efficiency: Adopting efficient power conversion technology to reduce energy loss and improve the overall energy efficiency of the system.
Reliability and stability:
Voltage stabilization design: Built in precision voltage stabilization circuit ensures the stability of output voltage and adapts to harsh industrial environments.
Overvoltage/Overcurrent Protection: Equipped with overvoltage, overcurrent, and short-circuit protection functions to enhance system safety and prevent accidental faults from causing damage to the system.
Industrial applications:
Widely applicable: Suitable for embedded systems in communication equipment, industrial control systems, medical equipment, national defense, aerospace and other fields.
High reliability: Designed to meet industrial standards, it can work stably for a long time in harsh environments.
Thermal management:
Efficient heat dissipation: The module design has an optimized heat dissipation system to ensure stable operating temperature under high loads and extend the service life of the module.
Active/Passive Cooling: Supports active or passive cooling options to meet different system design requirements.
