RadiSys CE945GM2A-T25控制器主板 是一款用于高性能嵌入式系統的控制器主板。
RadiSys CE945GM2A-T25控制器主板 詳情介紹：
RadiSys CE945GM2A-T25 控制器主板 是一款用于高性能嵌入式系統的控制器主板。以下是該主板的詳細信息，包括其主要特點、技術規格和應用領域：
主要特點
高性能處理
- 處理器: 采用Intel Core 2 Duo或其他高性能處理器，提供強大的計算能力。
- 多核支持: 支持多核處理器配置，提高并行處理和多任務能力。
內存支持
- 內存插槽: 配備多個內存插槽，支持DDR2或DDR3 RAM，以滿足高內存需求的應用。
- 最大內存容量: 支持的最大內存容量取決于具體型號和配置。
豐富的接口
- 數據接口: 包含多個USB接口、以太網接口、串口和并行端口，支持多種外圍設備的連接。
- 視頻輸出: 提供VGA、DVI或HDMI接口，用于視頻顯示和監控。
擴展插槽
- PCI/PCIe插槽: 提供PCI或PCI Express插槽，允許用戶添加額外的擴展卡，如圖形卡、網絡卡等。
- 存儲接口: 支持SATA或IDE接口，用于連接存儲設備如硬盤或固態硬盤。
高可靠性
- 工業標準: 設計符合工業標準，確保在惡劣環境下穩定運行。
- 耐用性: 使用高質量組件，確保長期可靠性和穩定性。
電源管理
- 電源要求: 支持標準的ATX電源輸入，提供穩定的電力供應。
- 保護功能: 包含過電流、過電壓和短路保護功能，以確保系統的安全運行。
技術規格
處理器
- 類型: Intel Core 2 Duo或其他高性能處理器。
- 頻率和核心數: 根據具體型號和配置而異。
內存
- 插槽類型: DDR2或DDR3 DIMM插槽。
- 最大容量: 具體最大支持的內存容量取決于主板的設計。
接口
- USB接口: 支持多個USB 2.0或USB 3.0接口。
- 以太網接口: 提供1或2個千兆以太網接口。
- 串口和并行端口: 支持RS-232串口和并行端口。
視頻輸出
- 接口類型: VGA、DVI或HDMI，根據具體配置而定。
擴展插槽
- PCI/PCIe: 提供多個PCI或PCI Express插槽。
存儲接口
- SATA/IDE: 支持多個SATA接口或IDE接口，用于連接存儲設備。
電源要求
- 電壓: 支持標準ATX電源輸入（通常為+12V、+5V、+3.3V等）。
- 功耗: 功耗取決于處理器、內存和其他組件的配置。

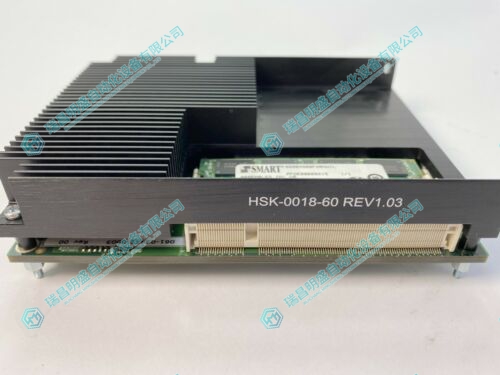

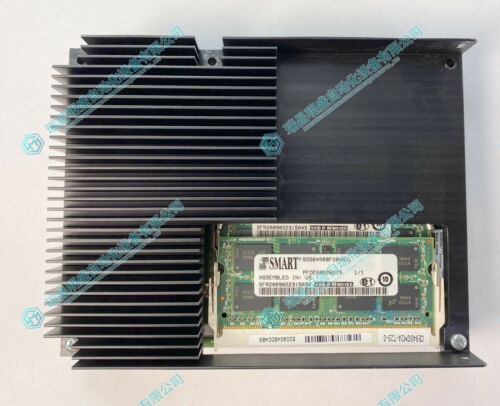

RadiSys CE945GM2A-T25控制器主板 實物圖片：
english introduction:
The RadiSys CE945GM2A-T25 controller motherboard is a controller motherboard designed for high-performance embedded systems. The following is detailed information about the motherboard, including its main features, technical specifications, and application areas:
main features
High performance processing
Processor: Equipped with Intel Core 2 Duo or other high-performance processors, providing powerful computing power.
Multi core support: Supports multi-core processor configurations to enhance parallel processing and multitasking capabilities.
Memory support
Memory Slot: Equipped with multiple memory slots, supporting DDR2 or DDR3 RAM to meet applications with high memory requirements.
Maximum memory capacity: The maximum supported memory capacity depends on the specific model and configuration.
Rich interfaces
Data interface: includes multiple USB interfaces, Ethernet interfaces, serial ports, and parallel ports, supporting the connection of various peripheral devices.
Video output: Provides VGA, DVI, or HDMI interfaces for video display and monitoring.
Expansion Slots
PCI/PCIe slot: Provides PCI or PCI Express slots, allowing users to add additional expansion cards such as graphics cards, network cards, etc.
Storage interface: Supports SATA or IDE interfaces, used to connect storage devices such as hard drives or solid-state drives.
high reliability
Industrial standards: Designed to meet industrial standards and ensure stable operation in harsh environments.
Durability: Using high-quality components to ensure long-term reliability and stability.
Power management
Power requirements: Supports standard ATX power input and provides stable power supply.
Protection function: including overcurrent, overvoltage, and short-circuit protection functions to ensure the safe operation of the system.
technical specifications
processor
Type: Intel Core 2 Duo or other high-performance processors.
Frequency and number of cores: Depending on the specific model and configuration.
Memory
Slot type: DDR2 or DDR3 DIMM slot.
Maximum capacity: The specific maximum supported memory capacity depends on the design of the motherboard.
Interface
USB interface: Supports multiple USB 2.0 or USB 3.0 interfaces.
Ethernet interface: Provide 1 or 2 Gigabit Ethernet interfaces.
Serial and parallel ports: Supports RS-232 serial and parallel ports.
Video output
Interface type: VGA, DVI, or HDMI, depending on the specific configuration.
Expansion Slots
PCI/PCIe: Provides multiple PCI or PCI Express slots.
Storage interface
SATA/IDE: Supports multiple SATA or IDE interfaces for connecting storage devices.
Power requirements
Voltage: Supports standard ATX power input (usually+12V,+5V,+3.3V, etc.).
Power consumption: Power consumption depends on the configuration of the processor, memory, and other components.
