SIGMATEK DNC115用于1軸的定位模塊DNC 115定位輸入是為具有RS422電平的增量器設計的。有三個數字輸入可用于參考驅動器或監控末端位置。設定值輸出由12位D/a轉換器進行。有2個無電勢光耦輸出。

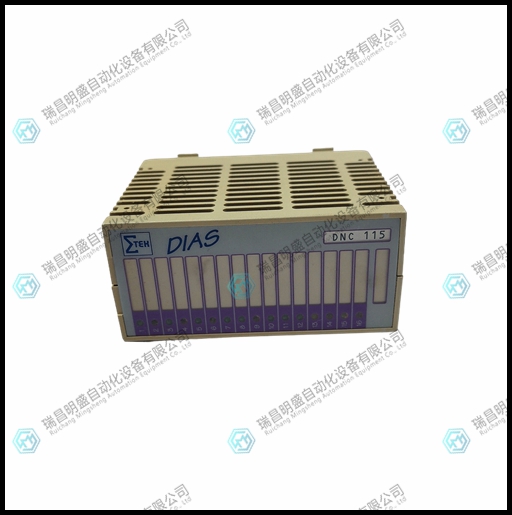

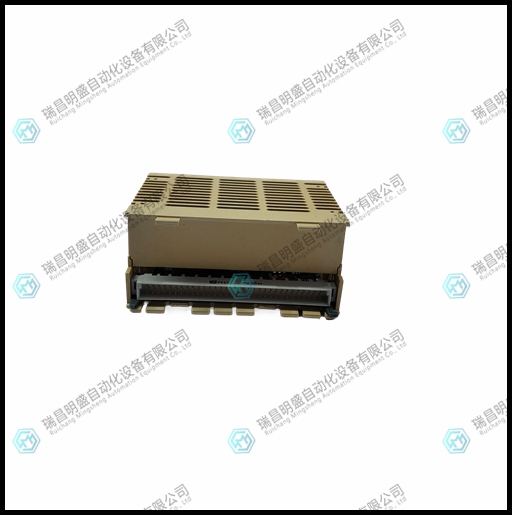

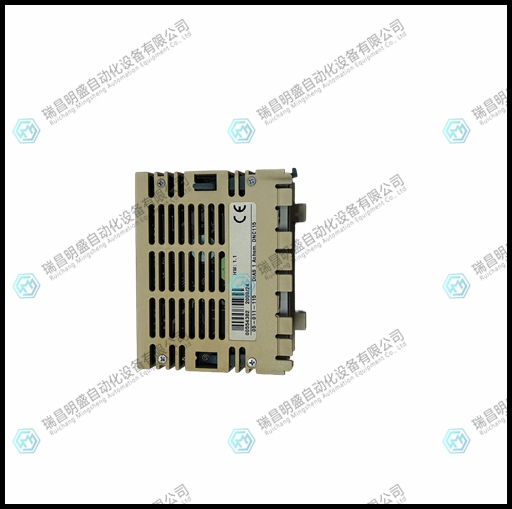

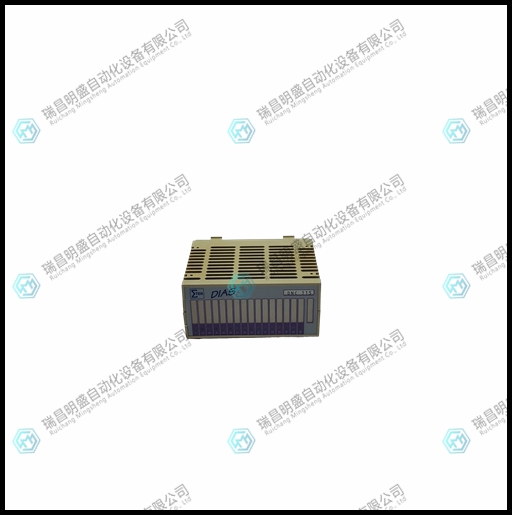

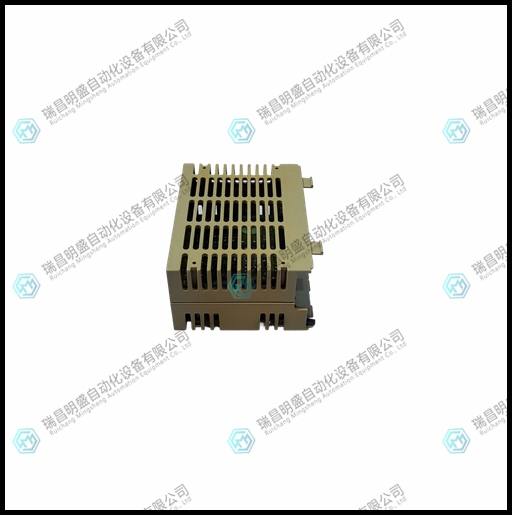

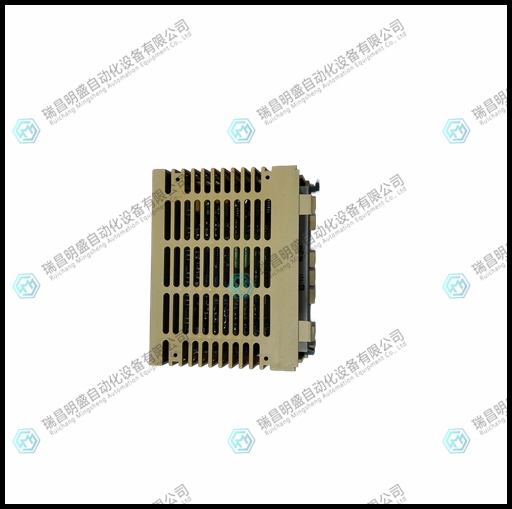

SIGMATEK DNC115定位模塊實物照片：
SIGMATEK DNC115定位模塊產品視頻：
SIGMATEK DNC115定位模塊產品詳情信息：
接線說明 1.為了保證無故障運行，必須堅持細致的布線安排： 2.0V電源電壓連接必須遵循到公共0V端子的最短路徑。 禮帽欄桿必須正確接地。 3.模擬部件的連接線必須盡可能短，避免與攜帶數字信號的電線平行。 4.信號承載導線必須經過屏蔽。 5.屏蔽必須連接到一個公共屏蔽軌道上。與模擬輸出的連接應用示例：直流伺服、變頻器的軸控制 | Wiring instructions 1.order to guarantee trouble free functioning it is essential to stick to a meticulous wiringarrangement: 2.The 0 V supply voltage connection must follow the shortest path to the common 0 V terminal. he top-hat rail must be properly connected to earth. 3.The connecting wires to the analogue components must be as short as possible and avoid lying inparallel to wires carrying digital signals. 4.The signal carrying wires must be screened. 5.The screening must be connected to a common screening rail.Connection to the analogue outputExample of application: axis control for direct current servos, frequency converter |
