VM600 MPC4 200-510-071-113機器保護卡 它采用碳化硅（SiC）作為傳感器材料，這種材料具有高速、高靈敏度和高可靠性等特點，使得探測器能夠迅速準確地檢測到火焰信號。
VM600 MPC4 200-510-071-113機器保護卡 詳情介紹：
VM600 MPC4 200-510-071-113機械保護卡是一款來自Meggitt Vibro-Meter產品線的高質量和高可靠性的機械保護卡。這款卡件被設計為VM600機架式機械監控系統的一部分，并通過了SIL 2認證。以下是其主要特點：
- 通道配置：MPC4機械保護卡提供了4個動態通道和2個輔助通道，每個動態通道有2個處理輸出，每個轉速通道有1個處理輸出。這種配置使得它能夠處理和監測多個動態信號輸入，如加速度、速度和位移等。
- 報警和診斷功能：該卡件配備了4個用戶可配置的報警繼電器和1個公共電路故障繼電器。此外，它還具有全系統安全線的診斷（BIST）功能，可以在需要時將所有相關保護系統繼電器和模擬輸出驅動至安全狀態。
- 測量和監控：MPC4機械保護卡能夠測量和監控四個動態信號輸入以及多達兩個速度輸入。這些動態信號輸入是完全可編程的，可以接受各種表示的信號，如加速度、速度和位移（接近）等。
- 數字處理：這款卡件提供了數字濾波、積分或微分（如果需要）、整流（有效值、平均值、真峰或真值）、峰對峰、順序跟蹤（振幅和相位）和測量的傳感器目標差距等數字處理功能。
- 高集成度：MPC4機械保護卡是高度集成的，通常與IOC4Mk2或IOC4T卡配對使用，形成一個完整的卡對。這個卡對包括傳感器電源、緩沖輸出、DC輸出、繼電器和串行通信接口等。
- 專為軟件設計：MPC4機械保護卡是專為VM600 MPSx軟件設計的，可以與該軟件無縫集成，實現更高級別的機械保護和狀態監測功能。
總的來說，VM600 MPC4 200-510-071-113機械保護卡是一款功能強大、高度可配置和高度集成的機械保護卡，適用于各種需要高精度和可靠機械保護的工業應用。

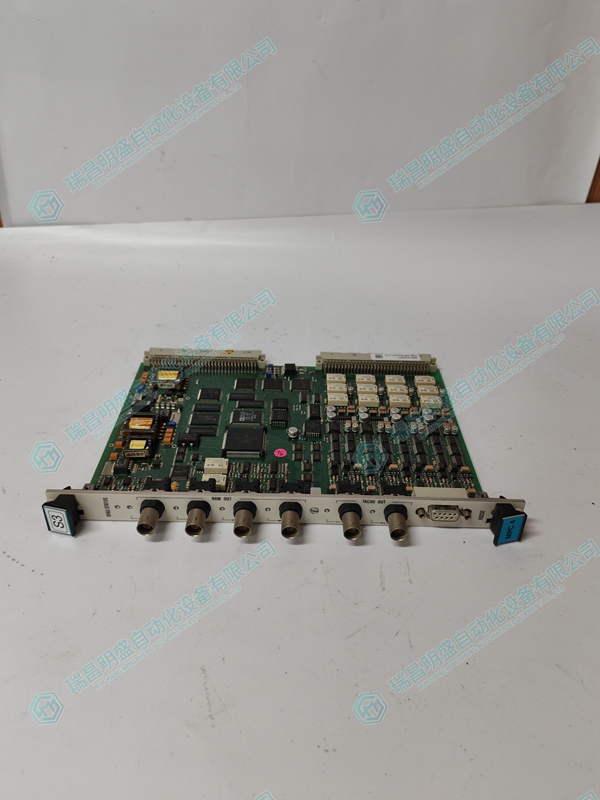

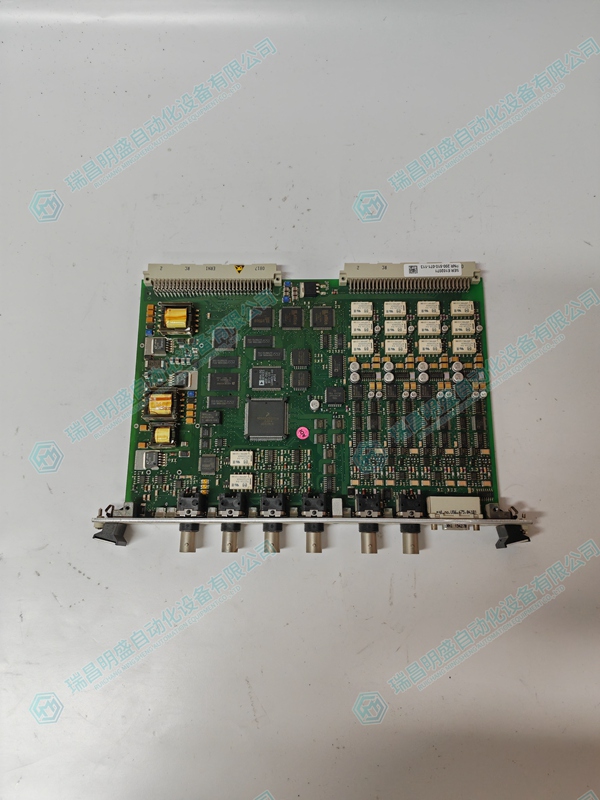

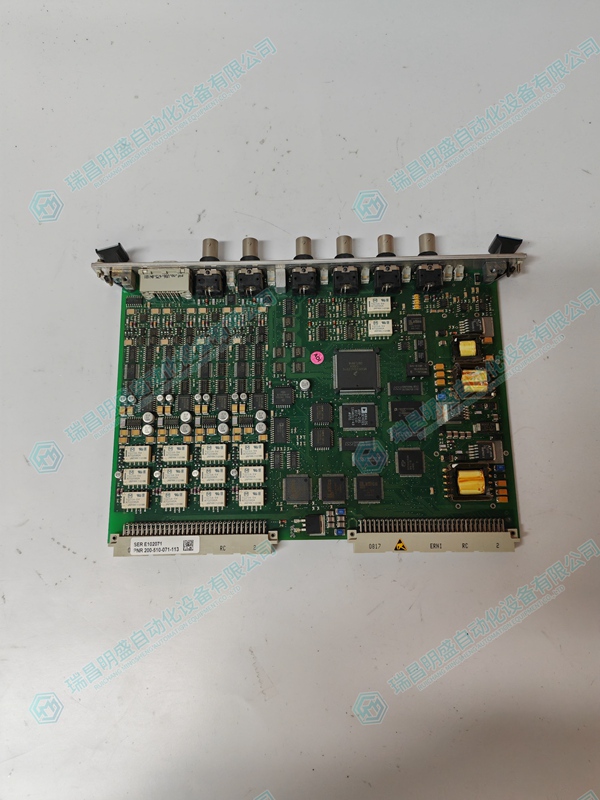

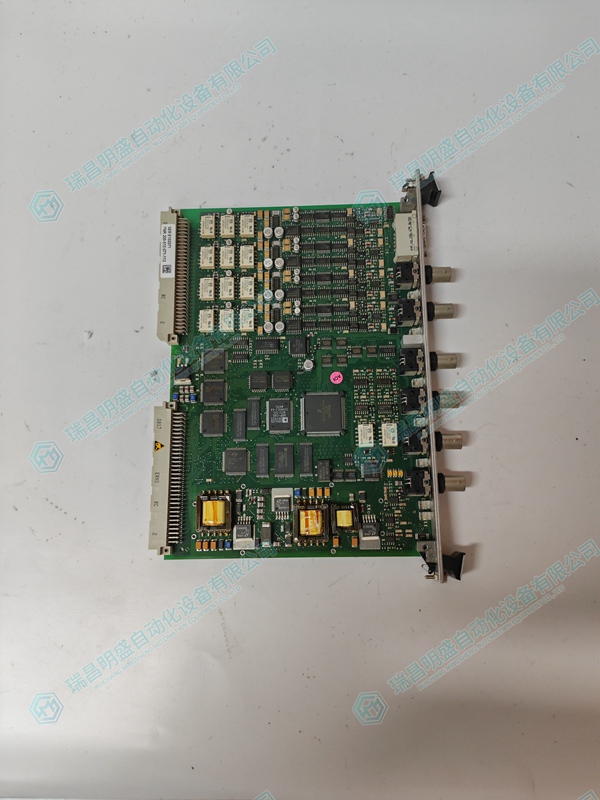

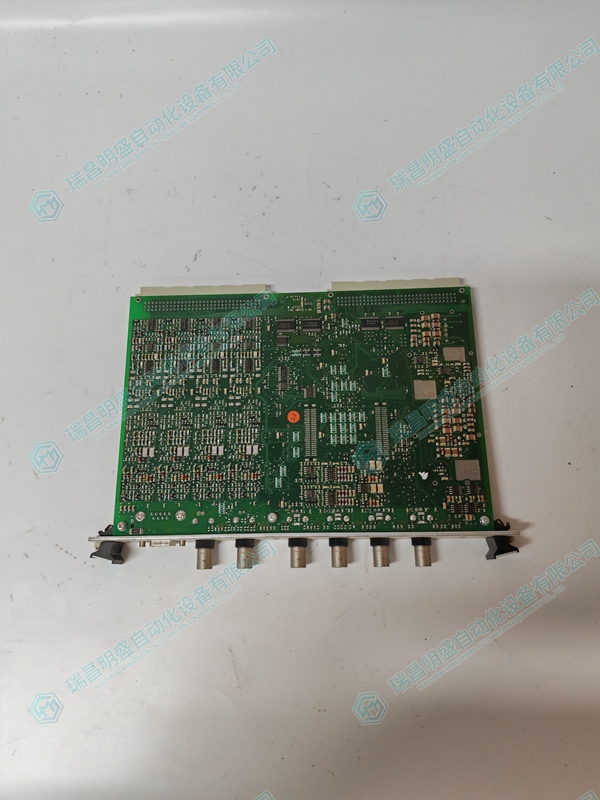

VM600 MPC4 200-510-071-113機器保護卡 實物圖片：
VM600 MPC4 200-510-071-113機器保護卡 實物視頻
VM600 MPC4 200-510-071-113 Machine Protection Card Details Introduction:
The VM600 MPC4 200-510-071-113 mechanical protection card is a high-quality and highly reliable mechanical protection card from the Meggitt Vibro Meter product line. This card is designed as part of the VM600 rack mounted mechanical monitoring system and has passed SIL 2 certification. The following are its main characteristics:
Channel configuration: The MPC4 mechanical protection card provides 4 dynamic channels and 2 auxiliary channels. Each dynamic channel has 2 processing outputs, and each speed channel has 1 processing output. This configuration enables it to process and monitor multiple dynamic signal inputs, such as acceleration, velocity, and displacement.
Alarm and diagnostic functions: This card is equipped with 4 user configurable alarm relays and 1 common circuit fault relay. In addition, it also has a diagnostic (BIST) function for the entire system safety line, which can drive all relevant protection system relays and analog outputs to a safe state when needed.
Measurement and monitoring: The MPC4 mechanical protection card can measure and monitor four dynamic signal inputs and up to two speed inputs. These dynamic signal inputs are fully programmable and can accept various representations of signals, such as acceleration, velocity, and displacement (proximity).
Digital Processing: This card provides digital filtering, integration or differentiation (if needed), rectification (effective value, average value, true peak or true value), peak to peak, sequential tracking (amplitude and phase), and measurement of sensor target differences and other digital processing functions.
High Integration: MPC4 mechanical protection cards are highly integrated and typically paired with IOC4Mk2 or IOC4T cards to form a complete card pair. This card pair includes sensor power supply, buffered output DC output, relays, and serial communication interfaces.
Specially designed for software: The MPC4 mechanical protection card is designed specifically for VM600 MPSx software and can be seamlessly integrated with the software to achieve higher-level mechanical protection and status monitoring functions.
Overall, The VM600 MPC4 200-510-071-113 mechanical protection card is a feature
