BENDER IRDH275B-435 絕緣監視器 是一款高性能的絕緣檢測裝置，主要用于監測未接地主電路（IT系統）的絕緣電阻，確保其工作在安全范圍內。該監視器特別適用于AC、AC/DC主電路，包括具有直接連接的直流元件的AC/DC主電路，如整流器、轉換器和可控硅控制的直流驅動器，以及UPS系統、電池系統等。

BENDER IRDH275B-435 絕緣監視器   詳情介紹：

BENDER IRDH275B-435絕緣監視器是一款高性能的絕緣檢測裝置，主要用于監測未接地主電路（IT系統）的絕緣電阻，確保其工作在安全范圍內。該監視器特別適用于AC、AC/DC主電路，包括具有直接連接的直流元件的AC/DC主電路，如整流器、轉換器和可控硅控制的直流驅動器，以及UPS系統、電池系統等。

IRDH275B-435絕緣監視器采用了創新的A-ISOMETERs技術，使得絕緣電阻測量更為精確。其面板安裝外殼易于安裝到配電盤的筋膜上，用戶可以通過純文本顯示輕松獲取全面且易于理解的信息。此外，端子蓋、防觸電保護、接線端子等設計提供了額外的保護，增強了設備的安全性。

該監視器符合NEC 250.21(B)和CEC 10-106(2)的地面探測器要求，可以檢測不接地交流/直流系統的接地故障，電壓范圍可達0...793 VAC和0...650 VDC。它還具有兩個可單獨調節的絕緣電阻響應值，范圍在1kΩ至10MΩ之間，適用于純AC、純DC和混合AC/DC系統，包括帶變頻驅動器(VFD)的系統。

在實際應用中，IRDH275B-435絕緣監視器能夠?qū)崟r(shí)顯示讀數，提供易于使用的機載菜單用于管理設置，并具備自動自檢功能。此外，它還內置了測試和重置按鈕，方便用戶進行外部測試和重置操作。同時，該監視器具有鎖定或非鎖定操作選項，并配備兩個SPDT觸點輸出，通常通電或正常斷電操作。

總的來說，BENDER IRDH275B-435絕緣監視器是一款功能全面、性能穩定、易于使用的絕緣檢測裝置，能夠滿足各種復雜電氣系統的絕緣監測需求，確保系統的安全穩定運行。

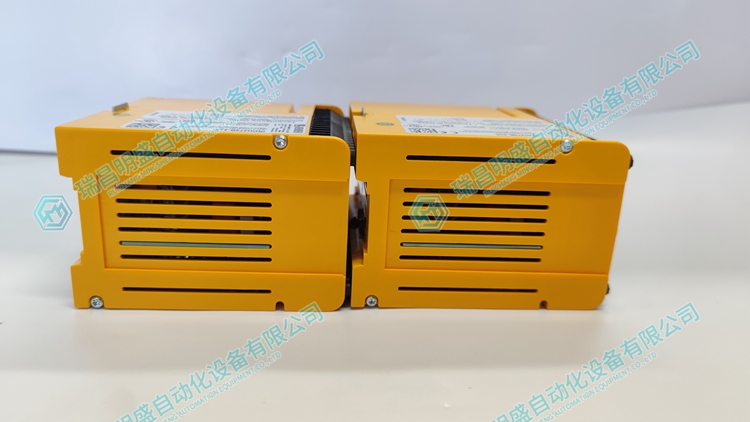

BENDER IRDH275B-435 絕緣監視器   實物圖片：

BENDER IRDH275B-435 絕緣監視器  實物視頻

BENDER IRDH275B-435 Insulation Monitor Details Introduction:

BENDER IRDH275B-435 Insulation Monitor is a high-performance insulation detection device mainly used to monitor the insulation resistance of ungrounded main circuits (IT systems), ensuring that it operates within a safe range. This monitor is particularly suitable for AC, AC/DC main circuits, including AC/DC main circuits with directly connected DC components, such as rectifiers, converters, and thyristor controlled DC drives, as well as UPS systems, battery systems, etc.

The IRDH275B-435 insulation monitor adopts innovative A-ISOMETRS technology, making insulation resistance measurement more accurate. The panel mounting shell is easy to install onto the fascia of the distribution panel, and users can easily obtain comprehensive and easy to understand information through plain text display. In addition, the design of terminal covers, anti electric shock protection, and wiring terminals provides additional protection, enhancing the safety of the equipment.

This monitor meets the ground detector requirements of NEC 250.21 (B) and CEC 10-106 (2), and can detect grounding faults in ungrounded AC/DC systems. The voltage range can reach 0... 793 VAC and 0... 650 VDC. It also has two individually adjustable insulation resistance response values, ranging from 1k Ω to 10M Ω, suitable for pure AC, pure DC, and hybrid AC/DC systems, including systems with variable frequency drives (VFDs).

In practical applications, the IRDH275B-435 insulation monitor can display readings in real time, provide an easy-to-use onboard menu for managing settings, and has automatic self checking function. In addition, it also comes with built-in testing and reset buttons, making it convenient for users to perform external testing and reset operations. At the same time, the monitor has a lock or non lock operation option and is equipped with two SPDT contact outputs, usually powered on or normally powered off.

Overall, BENDER IRDH275B-435 Insulation Monitor is a comprehensive, stable, and easy-to-use insulation detection device that can meet the insulation monitoring needs of various complex electrical systems, ensuring the safe and stable operation of the system.
