VMIC VMIVME-2510B 輸入輸出模塊 是一款64位TTL輸入/輸出模塊，屬于VMIC的Megamodule系列，具有通用編程功能。
VMIC VMIVME-2510B 輸入輸出模塊 詳情介紹：
VMIC VMIVME-2510B是一款64位TTL輸入/輸出模塊，屬于VMIC的Megamodule系列，具有通用編程功能。以下是關于這款輸入輸出模塊的一些主要特性和功能：
- 端口編程與接收器能力：每個8位端口的方向都可以單獨編程，具有64mA的接收器能力（15mA源）。
- 寄存器地址譯碼：該模塊具有控制寄存器和數據寄存器的獨立板地址譯碼功能。
- 故障檢測與隔離：模塊內置了測試邏輯，支持故障檢測和隔離。此外，還設計了特定的硬件來支持內置測試功能，并具備離線和在線故障檢測和隔離的能力。當板上存在故障時，前面板故障LED會亮起，用于指示故障狀態。
- I/O連接器與數據傳輸：該模塊采用高可靠性的DIN類型I/O連接器，并支持8位、16位和32位的數據傳輸。
- 內存與地址映射：子系統可以配置為連續的I/O地址，以節省內存。此外，該模塊還設計了兩套板卡地址開關，為CSR提供高效的內存地址映射和I/O地址。通過設置CSR地址開關，系統中的各種板中的所有CSR都可以映射到連續的存儲器位置中。
這款輸入輸出模塊在工業自動化、控制系統、嵌入式系統等領域有廣泛的應用，能夠提供可靠、高效的輸入輸出功能，并支持靈活的地址映射和故障檢測。請注意，使用時應遵循相關的操作指南和安全規范，以確保設備的穩定運行和數據的安全傳輸。

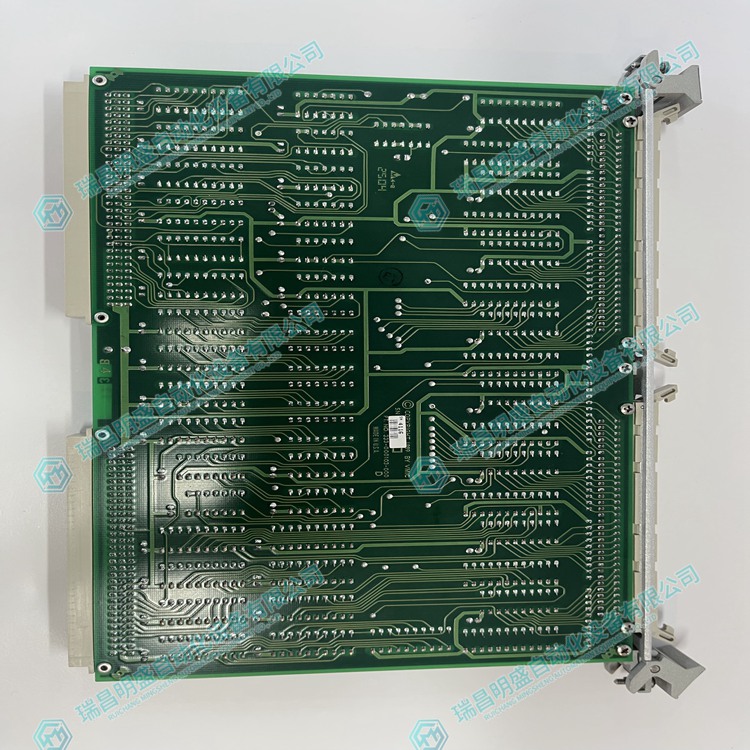

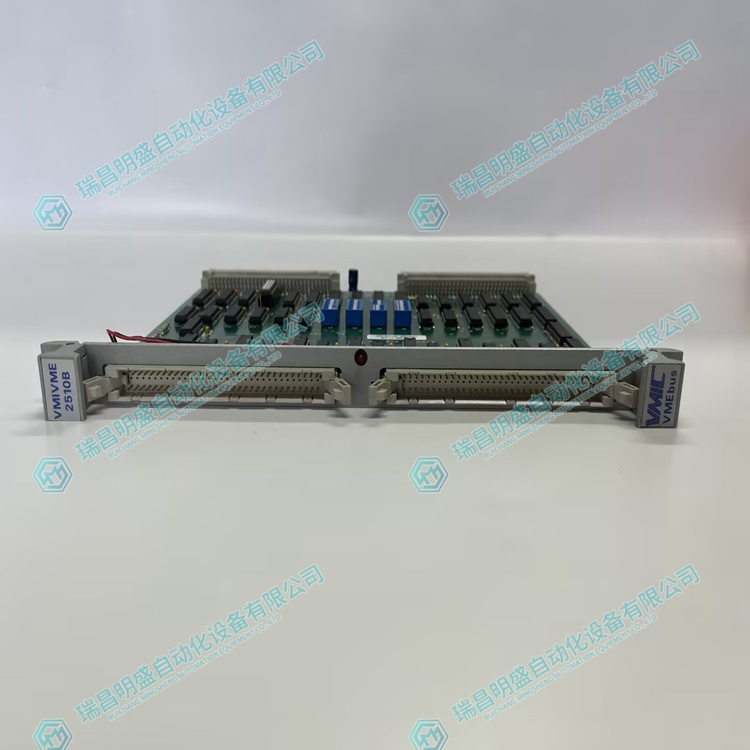

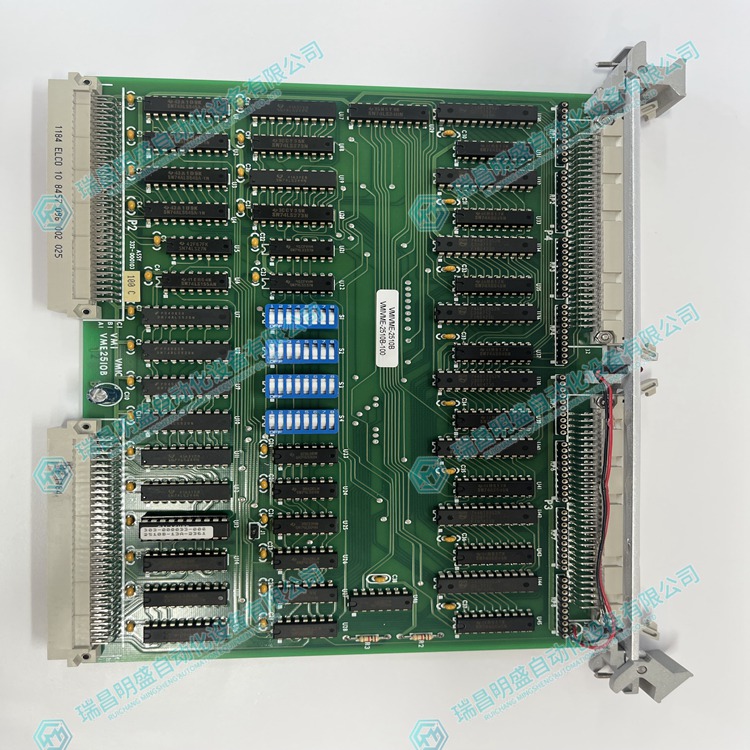

VMIC VMIVME-2510B 輸入輸出模塊 實物圖片：
VMIC VMIVME-2510B Input/Output Module Details Introduction:
VMIC VMIVME-2510B is a 64 bit TTL input/output module belonging to the Megamodule series of VMIC, with universal programming functionality. The following are some main features and functions of this input/output module:
Port programming and receiver capability: The direction of each 8-bit port can be programmed separately, with a receiver capability of 64mA (15mA source).
Register address decoding: This module has independent board address decoding functions for control registers and data registers.
Fault detection and isolation: The module has built-in testing logic, supporting fault detection and isolation. In addition, specific hardware has been designed to support built-in testing functions and have the ability to detect and isolate faults both offline and online. When there is a fault on the board, the front panel fault LED will light up to indicate the fault status.
I/O connector and data transmission: This module adopts a highly reliable DIN type I/O connector and supports 8-bit, 16 bit, and 32-bit data transmission.
Memory and address mapping: Subsystems can be configured with continuous I/O addresses to save memory. In addition, the module also designs two sets of board address switches to provide efficient memory address mapping and I/O addresses for CSR. By setting the CSR address switch, all CSR in various boards in the system can be mapped to consecutive memory locations.
This input-output module has a wide range of applications in industrial automation, control systems, embedded systems, and other fields, providing reliable and efficient input-output functions, and supporting flexible address mapping and fault detection. Please note that relevant operating guidelines and safety regulations should be followed during use to ensure stable operation of the equipment and secure transmission of data.
