Nikon 4S007-243 PCB組件
產品詳情：
PCB（Printed Circuit Board，印刷電路板）組件是 PCB 上的元件、部件或部分，用于實現電路的特定功能。這些組件通常包括各種電子元件、連接器和其他附加部件，以構建完整的電路。以下是一些常見的 PCB 組件：
電子元件：這是 PCB 上最常見的組件，包括電阻、電容、電感、晶體管、二極管、集成電路（IC）、微控制器等。這些元件執行各種電路功能，如信號處理、放大、開關、濾波等。
連接器：連接器用于將 PCB 連接到其他電子設備或系統，以提供電源、數據和信號的接口。它們包括插頭、插座、引腳排列、RJ45 端口等。
電源接口：電源接口用于連接電源到 PCB，包括插座、插頭、電源線和穩壓電源模塊。這些組件提供電力支持。
外部連接：這些組件包括按鈕、開關、旋鈕、LED 燈、顯示屏、傳感器等，用于用戶接口、狀態指示和輸入控制。
傳感器：傳感器組件用于檢測和測量環境參數，如溫度、濕度、壓力、光強度、加速度等。它們通常用于嵌入式系統和 IoT 設備中。
電源管理組件：這些組件包括穩壓器、電池管理電路、電源開關和功率傳遞器，用于管理電路的電源和功率需求。
射頻（RF）元件：用于射頻電子設備的 PCB 包括天線、RF 連接器、RF 放大器、濾波器等，用于處理無線通信和射頻信號。
機械支持：機械支持組件包括 PCB 外殼、支架、固定螺絲和散熱器，用于保護 PCB、提供物理支持和散熱。
傳輸線和導線：這些組件包括 PCB 上的導線、差分對、數據總線、電源平面和地平面，用于傳輸信號和電流。
印刷標記：這些標記用于標識 PCB 上的元件、引腳、線路、值和其他重要信息，有助于裝配、調試和維護。

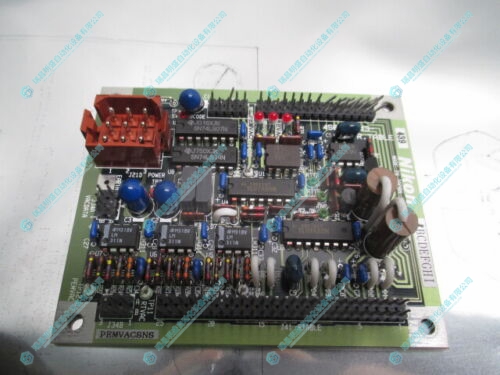

實物拍攝圖片：
product details：
PCB (Printed Circuit Board) components are components, components, or parts on a PCB that are used to implement specific functions of a circuit. These components typically include various electronic components, connectors, and other additional components to construct a complete circuit. The following are some common PCB components:
Electronic components: This is the most common component on a PCB, including resistors, capacitors, inductors, transistors, diodes, integrated circuits (ICs), microcontrollers, etc. These components perform various circuit functions, such as signal processing, amplification, switching, filtering, etc.
Connector: A connector is used to connect a PCB to other electronic devices or systems to provide an interface for power, data, and signals. They include plugs, sockets, pin arrangements, RJ45 ports, etc.
Power interface: The power interface is used to connect the power supply to the PCB, including sockets, plugs, power cables, and regulated power modules. These components provide power support.
External connections: These components include buttons, switches, knobs, LED lights, display screens, sensors, etc., used for user interface, status indication, and input control.
Sensor: The sensor component is used to detect and measure environmental parameters such as temperature, humidity, pressure, light intensity, acceleration, etc. They are typically used in embedded systems and IoT devices.
Power management components: These components include voltage regulators, battery management circuits, power switches, and power transmitters, used to manage the power and power requirements of the circuit.
Radio frequency (RF) components: PCBs used in RF electronic devices include antennas, RF connectors, RF amplifiers, filters, etc., used for processing wireless communication and RF signals.
Mechanical support: The mechanical support components include a PCB shell, bracket, fixing screws, and heat sink, used to protect the PCB, provide physical support, and dissipate heat.
Transmission lines and wires: These components include wires on the PCB, differential pairs, data buses, power planes, and ground planes for transmitting signals and currents.
Printing marks: These marks are used to identify components, pins, circuits, values, and other important information on a PCB, which helps with assembly, debugging, and maintenance.
