NIKON 4S007-400 PCB組件
產品詳情：
PCB（Printed Circuit Board，印刷電路板）組件是電子設備中的重要部分，用于連接和支持電子元件，形成一個完整的電路。PCB組件包括以下要素：
電子元件（Electronic Components）：這包括各種電子部件，如電阻、電容、晶體管、集成電路、電感等。這些元件通過焊接或插入連接到PCB上，用于執行特定的電路功能。
焊盤（Pads）：焊盤是用來連接電子元件的金屬區域，它們通常位于PCB上的一側。電子元件的引腳或引線與這些焊盤焊接在一起，以便電流能夠流經它們。
導線（Traces）：導線是印刷在PCB表面的金屬路徑，用于將電流從一個組件傳遞到另一個組件。這些導線通常是銅箔，通過化學腐蝕或機械方式形成。
孔洞（Holes）：孔洞通常用于安裝元件、連接不同PCB層之間的導線，或者用于固定PCB板到支架或外殼上。
PCB層（Layers）：PCB可以是單層、雙層或多層。多層PCB具有內部層，這些層通常用于提供電流和信號的地與電源層。
連接線（Connectors）：連接線或連接器是用于將PCB連接到其他電子設備或系統的接口。它們通常包括插頭和插座，用于連接電源、數據線和其他信號。
印刷標記（Silkscreen）：印刷標記通常用于標識PCB上的元件位置、引腳功能、電路圖符號等信息。這有助于裝配和維護過程中的可識別性。

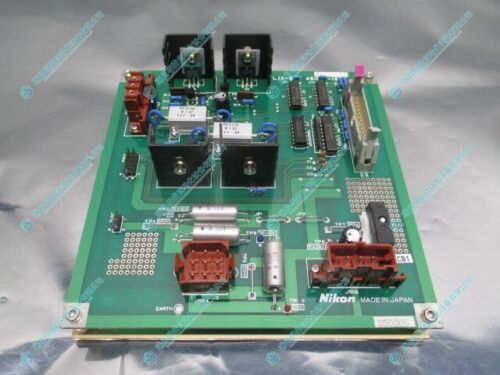

實物拍攝圖片：
product details：
PCB (Printed Circuit Board) components are an important part of electronic devices, used to connect and support electronic components, forming a complete circuit. PCB components include the following elements:
Electronic Components: This includes various electronic components such as resistors, capacitors, transistors, integrated circuits, inductors, etc. These components are connected to the PCB through welding or insertion to perform specific circuit functions.
Pads: Pads are metal areas used to connect electronic components, usually located on one side of the PCB. The pins or leads of electronic components are soldered together with these pads so that current can flow through them.
Traces: Wires are metal paths printed on the surface of a PCB, used to transfer current from one component to another. These wires are usually copper foil, formed through chemical corrosion or mechanical means.
Holes: Holes are usually used for installing components, connecting wires between different PCB layers, or fixing PCB boards to brackets or shells.
PCB layers: PCBs can be single layer, double layer, or multi-layer. Multilayer PCBs have internal layers, which are typically used to provide ground and power layers for current and signals.
Connectors: A connector is an interface used to connect a PCB to other electronic devices or systems. They typically include plugs and sockets for connecting power, data cables, and other signals.
Silkscreen: Printed markings are typically used to identify information such as component positions, pin functions, circuit diagram symbols, etc. on a PCB. This helps with identifiability during assembly and maintenance processes.
