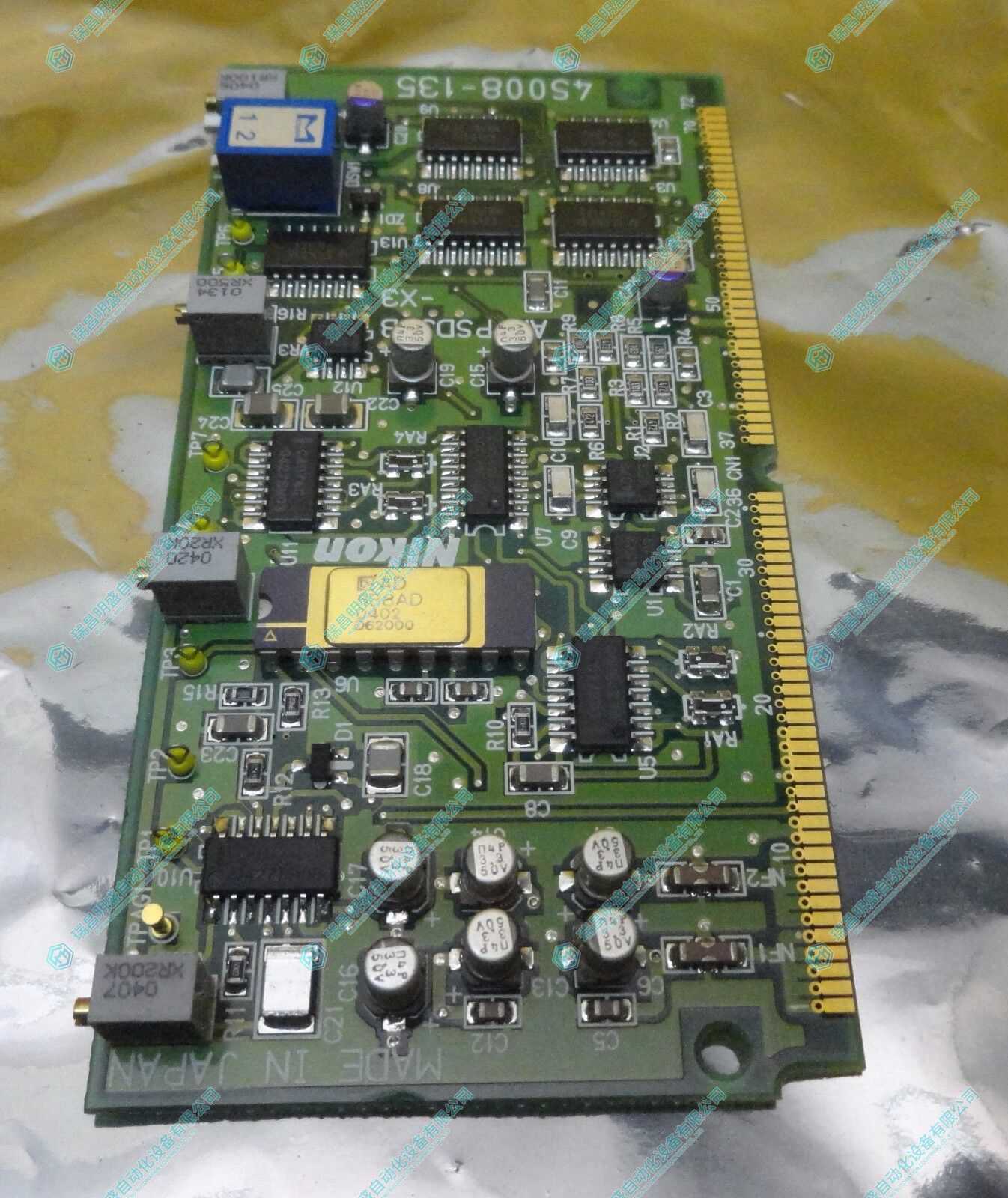

NIKON 4S008-135 電路板
產品詳情：
電路板（Circuit Board），也稱為印刷電路板（Printed Circuit Board，PCB），是一種用于支持和連接電子元件的基板。電路板上包括了導電軌道、連接點和絕緣材料，用于傳導電子信號和電能，以便在電子設備中執行特定的功能。電路板是電子設備的核心組件之一，它可以是單面板、雙面板或多層板，具體取決于電路的復雜程度和功能。
以下是關于電路板的一些重要信息：
基本構造： 電路板通常由絕緣性的基板（通常是硬質塑料或玻璃纖維）上涂覆有導電材料（通常是銅）而成。銅層上的導電軌道按照電路設計布置，以連接不同的電子元件。
組件安裝： 電子元件（如集成電路、電阻、電容、連接器等）通過焊接或插裝的方式安裝到電路板上，以便在電路中執行特定的功能。
電路連接： 電路板上的導電軌道連接不同元件，形成電路，使電流和信號可以在元件之間傳遞。電路板上的連接點通常用導線連接。
層次結構： 電路板可以有多個層次，這意味著它可以在不同的層次上有多層導電軌道，以容納復雜的電路設計。
信號傳輸： 電路板用于傳輸數字信號和模擬信號，這些信號可以在電子設備中執行各種功能，如數據處理、控制操作等。
電源分配： 電路板上的導線網用于分配電源，以向各個電子元件提供所需的電能，包括提供不同電壓和電流水平的電源。
機械支持： 電路板提供了一個堅固的結構，以支持和保護電子元件，并確保它們正確安裝在設備中。

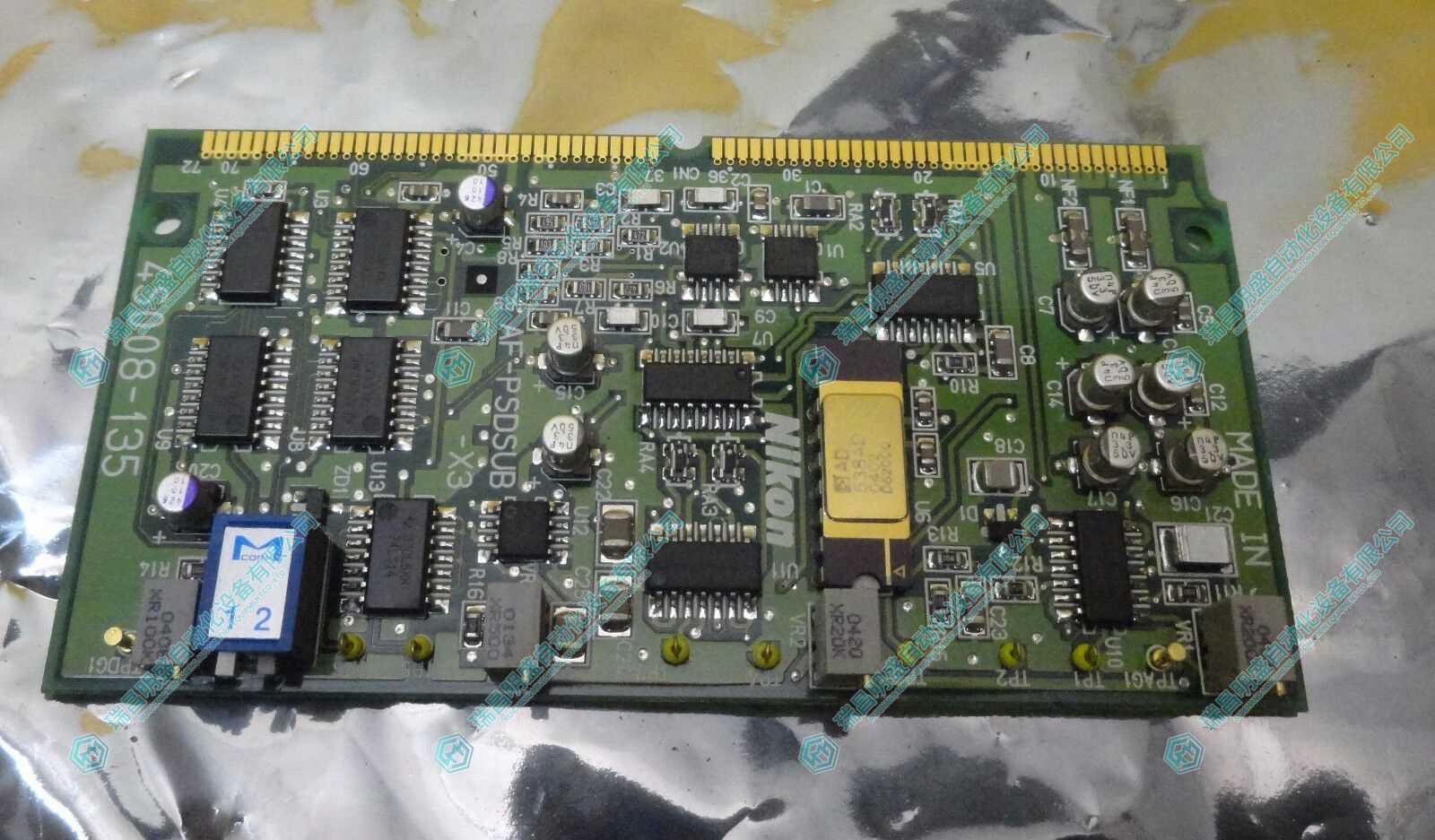

實物拍攝圖片：
product details：
Circuit Board, also known as Printed Circuit Board (PCB), is a substrate used to support and connect electronic components. The circuit board includes conductive tracks, connection points, and insulation materials for conducting electronic signals and energy to perform specific functions in electronic devices. A circuit board is one of the core components of electronic devices, which can be a single panel, double-sided board, or multi-layer board, depending on the complexity and functionality of the circuit.
Here are some important information about circuit boards:
Basic structure: Circuit boards are usually made of insulating substrates (usually hard plastic or fiberglass) coated with conductive materials (usually copper). The conductive tracks on the copper layer are arranged according to the circuit design to connect different electronic components.
Component installation: Electronic components (such as integrated circuits, resistors, capacitors, connectors, etc.) are installed on the circuit board by welding or inserting to perform specific functions in the circuit.
Circuit connection: The conductive tracks on the circuit board connect different components to form a circuit, allowing current and signals to be transmitted between the components. The connection points on the circuit board are usually connected by wires.
Hierarchy: A circuit board can have multiple levels, which means it can have multiple layers of conductive tracks at different levels to accommodate complex circuit designs.
Signal transmission: Circuit boards are used to transmit digital and analog signals, which can perform various functions in electronic devices, such as data processing, control operations, etc.
Power distribution: The wire network on the circuit board is used to distribute power to provide the required electrical energy to various electronic components, including providing power at different voltage and current levels.
Mechanical support: The circuit board provides a sturdy structure to support and protect electronic components and ensure their correct installation in the device.
