Elmo G-TUB30480FEHSNA2壓縮機模塊
1.產 品 資 料 介 紹：
- 產品型號：G-TUB30480FEHSNA2
- 模塊類型：多功能壓縮機驅動與電機控制一體化模塊，適配工業級電機驅動場景
- 控制模式：支持三種核心閉環控制方式，滿足不同工況需求 —— 閉環速度控制（實時監測并穩定電機轉速，誤差率低）、扭矩控制（精準調節電機輸出力矩，適配負載變化）、位置控制（精確定位電機運行位置，滿足精密動作需求），三種模式可根據實際應用靈活切換
- 輸入電壓適配：兼容工業標準電源規格，可接入直流或交流電源（具體電壓參數需根據實際系統配置確定，適配不同地區、不同設備的供電需求），同時內置電源穩壓與濾波模塊，減少電網波動對模塊運行的干擾
- 輸出功率性能：具備高功率輸出能力，可穩定驅動大功率工業電機（具體功率適配范圍需結合電機參數與應用場景確定），在滿負載運行狀態下仍能保持輸出的穩定性，避免功率衰減導致的電機運行異常
- 工業通信接口：標配主流工業總線通信接口，支持 EtherCAT（高速實時工業以太網，通信周期短至微秒級）、CANopen（高可靠性現場總線）等通信協議，可與上位控制系統、PLC 及其他控制單元實現高速數據交互，保障控制指令的實時傳輸
英文資料：
Technical Analysis of Elmo G-TUB30480FEHSNA2 Compressor Module
1、 Product Overview
Elmo G-TUB30480FEHSNA2 compressor module is a high-performance motor drive and control unit focused on industrial high dynamic control scenarios, designed specifically for the precise control needs of industrial compressors, high-power motors, and automation equipment. This module innovatively integrates high-power driving capability and intelligent control function, breaking through the single function limitation of traditional driving modules - it has strong power output capability to drive motor operation, and is equipped with intelligent control algorithms to achieve fine speed adjustment and torque control of compressor motors. By accurately matching load requirements, it effectively improves the operating efficiency of the entire system, reduces operating fluctuations, and ensures long-term stability of the system. With the core advantage of "power+control" integration, this module has been widely used in industrial compressor systems, pump conveying equipment, and high-performance motion control scenarios with strict dynamic response requirements, becoming a key component for improving the operational accuracy and energy efficiency of industrial equipment.
2、 Core technical parameters (typical characteristics)
Product model: G-TUB30480FEHSNA2
Module type: Multi functional compressor drive and motor control integrated module, suitable for industrial grade motor drive scenarios
Control mode: Supports three core closed-loop control methods to meet different working condition requirements - closed-loop speed control (real-time monitoring and stable motor speed with low error rate), torque control (precise adjustment of motor output torque to adapt to load changes), and position control (precise determination of motor operating position to meet precision action requirements). The three modes can be flexibly switched according to actual applications
Input voltage adaptation: compatible with industrial standard power specifications, can be connected to DC or AC power sources (specific voltage parameters need to be determined according to actual system configuration, adapted to the power supply needs of different regions and devices), and has built-in power stabilization and filtering modules to reduce the interference of power grid fluctuations on module operation
Output power performance: With high power output capability, it can stably drive high-power industrial motors (specific power adaptation range needs to be determined based on motor parameters and application scenarios), and maintain output stability even under full load operation, avoiding abnormal motor operation caused by power attenuation
Industrial communication interface: Standard mainstream industrial bus communication interface, supporting communication protocols such as EtherCAT (high-speed real-time industrial Ethernet, communication cycle as short as microseconds), CANopen (high reliability fieldbus), etc. It can achieve high-speed data exchange with upper control systems, PLCs, and other control units to ensure real-time transmission of control instructions

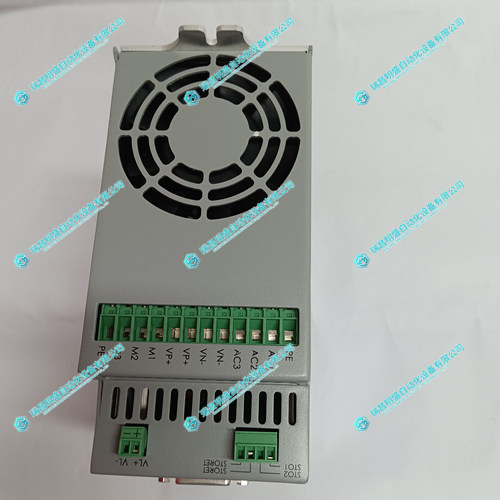

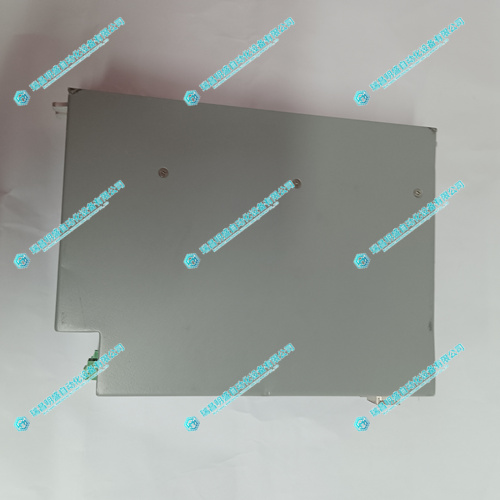

2.產 品 展 示
