NI   SCXI-1193 多路復用開關模塊    是一款32通道的高密度RF多路復用器開關模塊。它具備多種配置模式，可以配置為未端接多路復用器、外部端接多路復用器或尺寸多樣的稀疏矩陣。每種配置都能承受從DC到500 MHz以上的信號頻率。

NI   SCXI-1193 多路復用開關模塊    詳情介紹：

1. NI SCXI-1193 是一款32通道的高密度RF多路復用器開關模塊。它具備多種配置模式，可以配置為未端接多路復用器、外部端接多路復用器或尺寸多樣的稀疏矩陣。每種配置都能承受從DC到500 MHz以上的信號頻率。

2. 該模塊采用高密度推進式MCX連接器進行離散但易于管理的布線。模塊有一個插槽，但并不支持將信號導向高壓模擬總線。SCXI-1193主要用于集成高頻設備，如PXI-5404頻率發生器和PXI-5112高速數字化儀。

3. 此外，SCXI-1193可以通過編程配置為多種拓撲結構，如四路8 x 1多路復用器、四路4 x 1端接多路復用器、雙路16 x 1多路復用器、雙路8 x 1端接多路復用器、32 x 1多路復用器、16 x 1端接多路復用器和獨立模塊等。它適用于各種不同類型的電纜，如MCX-MCX電纜、MCX-BNC電纜、MCX-SMB電纜或MCX-SMA電纜，每根電纜都有0.3米或1.0米長。

4. 在物理維度上，SCXI-1193的推薦工作溫度范圍為0°C至50°C，儲存溫度范圍為-20°C至70°C，非冷凝濕度范圍為5%至85%。它的尺寸為1.2 x 6.8 x 7.8英寸，重2盎司，具有36個用于I/O連接器的MCX插孔，2個用于觸發連接器的SMB插孔，由銀鈀和金制成的繼電器，最大掃描速率為每秒100次操作。

5. 總的來說，NI SCXI-1193多路復用開關模塊是一款高密度、高性能的設備，適用于各種需要高頻信號多路復用的應用場景。

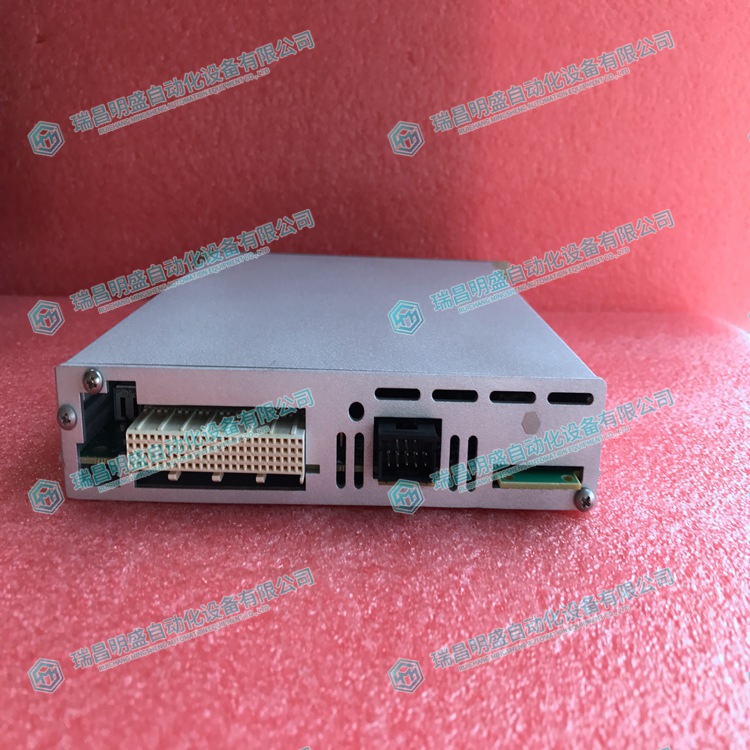

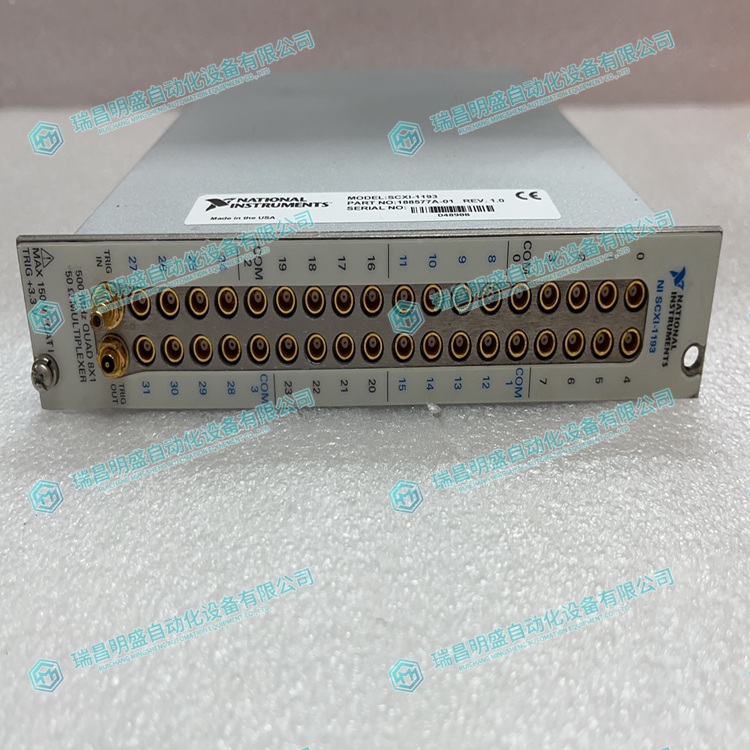

NI   SCXI-1193 多路復用開關模塊   實物圖片：

NI   SCXI-1193 多路復用開關模塊    產品視頻：

Details of NI SCXI-1193 Multiplexing Switch Module:

NI SCXI-1193 is a 32 channel high-density RF multiplexer switch module. It has multiple configuration modes and can be configured as an unterminated multiplexer, an externally terminated multiplexer, or a sparse matrix of various sizes. Each configuration can withstand signal frequencies from DC to over 500 MHz.

This module uses high-density push type MCX connectors for discrete but easy to manage wiring. The module has a slot, but it does not support directing signals to the high-voltage analog bus. SCXI-1193 is mainly used for integrating high-frequency devices, such as PXI-5404 frequency generators and PXI-5112 high-speed digitizers.

In addition, SCXI-1193 can be programmed to be configured with various topologies, such as four 8 x 1 multiplexers, four 4 x 1 terminated multiplexers, dual 16 x 1 multiplexers, dual 8 x 1 terminated multiplexers, 32 x 1 multiplexers, 16 x 1 terminated multiplexers, and standalone modules. It is suitable for various types of cables, such as MCX-MCX cables, MCX-BNC cables, MCX-SMB cables, or MCX-SMA cables, each with a length of 0.3 meters or 1.0 meters.

In terms of physical dimensions, the recommended operating temperature range for SCXI-1193 is 0 ° C to 50 ° C, storage temperature range is -20 ° C to 70 ° C, and non condensing humidity range is 5% to 85%. It measures 1.2 x 6.8 x 7.8 inches, weighs 2 ounces, has 36 MCX sockets for I/O connectors, 2 SMB sockets for triggering connectors, is made of silver palladium and gold relays, and has a maximum scanning rate of 100 operations per second.

Overall, the NI SCXI-1193 multiplexer switch module is a high-density, high-performance device suitable for various application scenarios that require high-frequency signal multiplexing.
