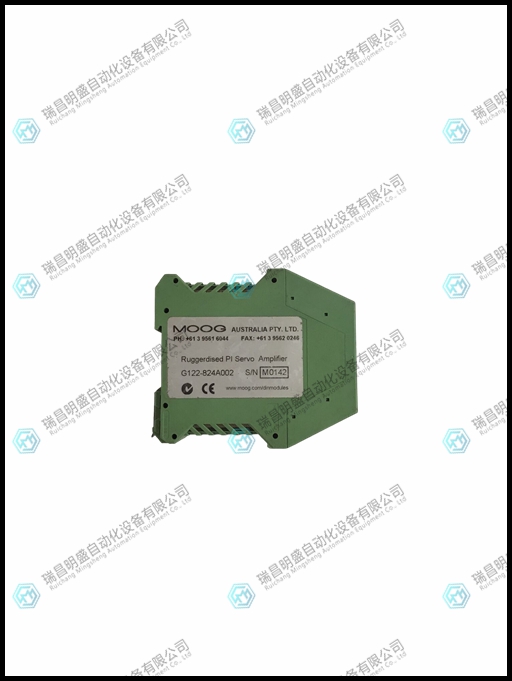

MOOG G122-824A002伺服控制系統放大器模塊

MOOG G122-824A002伺服放大器產品使用指導：

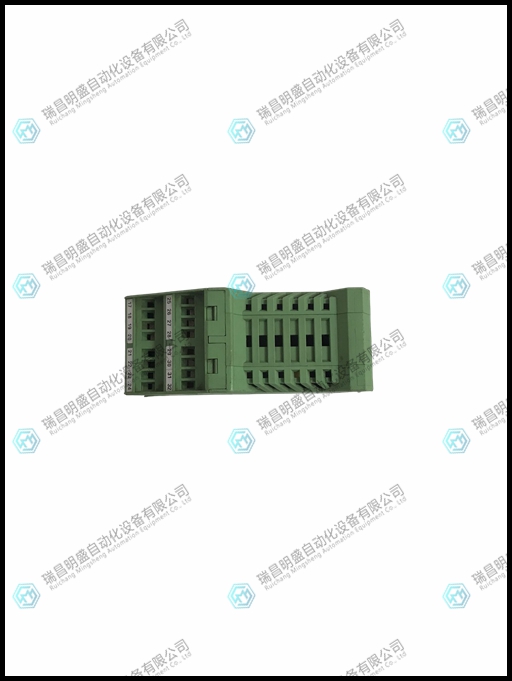

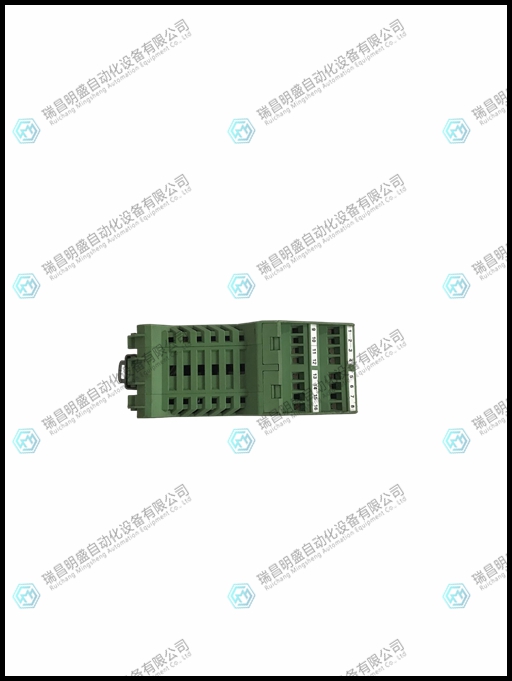

1.MOOG G122-824A002接線建議使用卷曲的“靴帶套圈”作為螺釘端子。留出足夠的電纜長度，以便電路卡可以在電線仍然連接的情況下從其外殼中取出。這使電路卡上的開關可以在卡仍處于連接和工作狀態時進行更改。額外的100mm，用于外殼外部的電纜，以及連接到相鄰DIN導軌單元的電線，就足夠了。螺紋端子將適用于0.2mm2至2.5mm2（24AWG至12AWG）的電線尺寸。一安培額定值，0.2mm2應足以用于所有應用。

2.電流參數：24V DC標稱值，22至28V75mA@24V無負載，200mA@100mA負載。如果使用不受調節的電源，波紋波形的底部不得低于22V。建議將符合IEC127-2表3的M205、250mA T（慢熔斷）保險絲與+24V輸入串聯放置，以保護電子電路。如果端子23用于為比例閥供電，則應增加保險絲以滿足額外電流的需要。

3.MOOG G122-824A002發出的輻射遠低于CE標志測試中規定的水平。因此，無需采取特殊預防措施來抑制排放。然而，對外部干擾輻射的免疫力取決于仔細的布線技術?？山邮艿姆椒ㄊ鞘褂闷帘坞娎|進行所有連接，并在進入工業鋼外殼的點處，通過適當?shù)慕拥仉娎|壓蓋徑向終止電纜屏蔽。如果無法做到這一點，G122-824A002上應提供底盤圓螺紋端子。裸露的電線應保持最小長度。將電纜兩端的屏幕連接到機箱接地。

MOOG G122-824A002 wiring recommends using curled "boot strap ferrules" as screw terminals. Leave enough cable length so that the circuit card can be removed from its casing while the wires are still connected. This allows the switches on the circuit card to be changed while the card is still connected and working. An additional 100mm is sufficient for cables outside the casing and wires connected to adjacent DIN rail units. The threaded terminals will be suitable for wire sizes ranging from 0.2mm2 to 2.5mm2 (24AWG to 12AWG). One ampere rating of 0.2mm2 should be sufficient for all applications.

24V DC nominal value, 22 to 28V75mA@24V No load, 200mA@100mA Load. If an unregulated power supply is used, the bottom of the ripple waveform must not be lower than 22V. It is recommended to place the M205, 250mA T (slow melting) fuse in series with the+24V input in accordance with Table 3 of IEC127-2 to protect the electronic circuit. If terminal 23 is used to power the proportional valve, a fuse should be added to meet the additional current requirements.

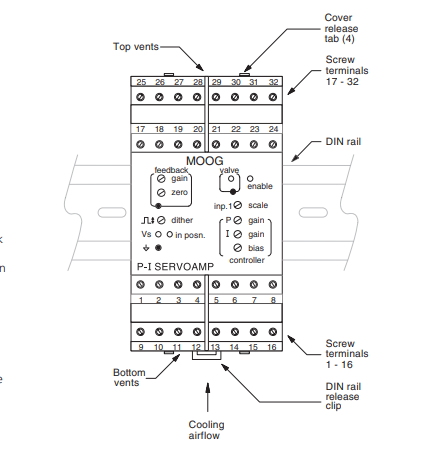

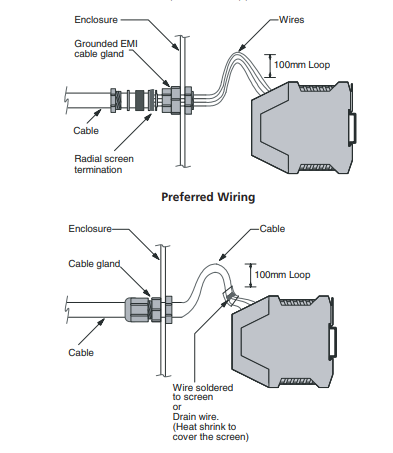

The radiation emitted by MOOG G122-824A002 is much lower than the level specified in the CE marking test. Therefore, there is no need to take special preventive measures to suppress emissions. However, immunity to external interference radiation depends on careful wiring techniques. An acceptable method is to use shielded cables for all connections and terminate the cable shielding radially through appropriate grounding cable glands at the point of entry into the industrial steel casing. If this cannot be achieved, G122-824A002 should provide chassis round threaded terminals. Exposed wires should be kept to a minimum length. Connect the screens at both ends of the cable to the chassis ground.
