SR489-P1-HI-A20-E繼電器管理保護模塊 是一款繼電器管理保護模塊，由 GE（通用電氣）公司生產。它是一種高性能的保護裝置

 SR489-P1-HI-A20-E繼電器管理保護模塊   詳情介紹：

GE SR489-P1-HI-A20-E 是一款繼電器管理保護模塊，由 GE（通用電氣）公司生產。它是一種高性能的保護裝置，主要用于電力系統中的設備保護、故障檢測和控制。該模塊廣泛應用于發電廠、變電站、工業設施等需要高可靠性的保護和控制系統的環境中。

主要功能和特點：

1. 繼電器保護功能：

• 多種保護功能：SR489-P1-HI-A20-E 模塊提供多種繼電器保護功能，包括過電流保護、過電壓保護、欠電壓保護、差動保護、負序電流保護等，確保對電力系統中的關鍵設備進行全面保護。
• 高靈敏度和精確性：模塊能夠精確檢測系統中的異常情況，并在故障發生時迅速響應，采取保護措施，防止設備損壞。

2. 監控和控制：

• 實時監控：支持實時監控電力系統的運行狀態，包括電流、電壓、功率因數等參數，幫助用戶實時了解系統狀態。
• 遠程控制：可以通過遠程通信接口進行配置和控制，實現對保護設置的調整和故障清除等操作。

3. 高可靠性和穩定性：

• 工業級設計：設計符合工業標準，具有高抗干擾能力和高可靠性，能夠在惡劣的工業環境中穩定運行。
• 冗余設計：具備冗余機制，在關鍵部件發生故障時，系統能夠繼續運行，保障持續的保護功能。

4. 通信接口：

• 多種通信協議：支持多種通信協議，如 Modbus、DNP3、IEC 61850 等，便于與其他控制系統或監控系統集成。
• 數據傳輸：能夠?qū)⒈O(jiān)控?cái)?shù)據和狀態信息傳輸至中央控制系統或遠程服務器，方便集中管理和分析。

5. 配置和調試：

• 易于配置：通過配置軟件可以對模塊進行靈活的配置，設置保護參數、報警閾值等，滿足不同應用場景的需求。
• 故障診斷：內置故障診斷功能，能夠記錄和分析設備的故障信息，幫助運維人員進行預防性維護和故障排查。

6. 保護和報警：

• 多級報警：支持多級報警功能，當檢測到異常時，能夠通過聲光報警、繼電器輸出等方式提醒操作人員。
• 保護動作：在檢測到嚴重故障時，模塊能夠自動采取保護措施，如斷路、停機等，保護設備免受損害。

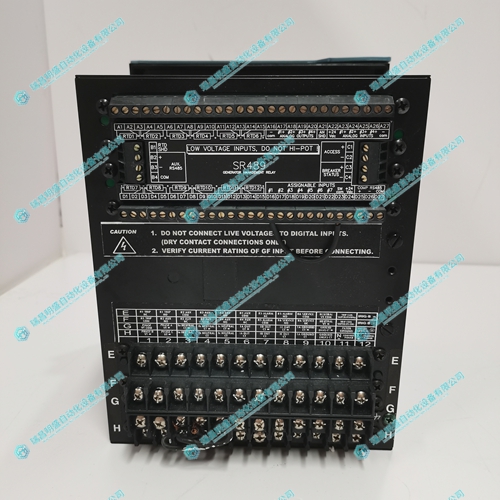

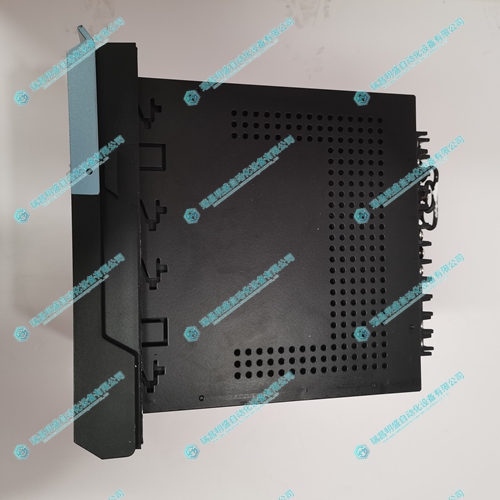

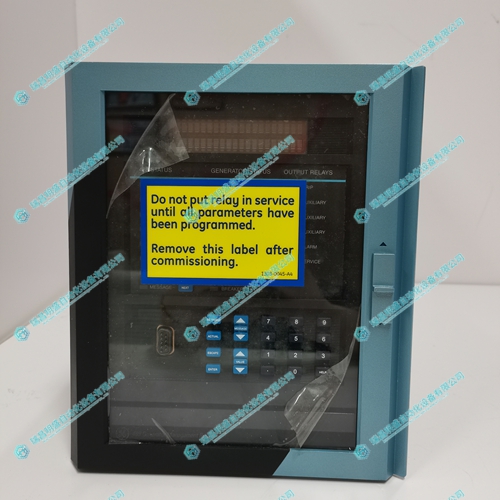

 SR489-P1-HI-A20-E繼電器管理保護模塊   實物圖片：

english introduction:

GE SR489-P1-HI-A20-E is a relay management and protection module produced by GE (General Electric). It is a high-performance protective device mainly used for equipment protection, fault detection, and control in power systems. This module is widely used in environments that require high reliability protection and control systems, such as power plants, substations, and industrial facilities.

Main functions and features:

Relay protection function:

Multiple protection functions: The SR489-P1-HI-A20-E module provides multiple relay protection functions, including overcurrent protection, overvoltage protection, undervoltage protection, differential protection, negative sequence current protection, etc., ensuring comprehensive protection of key equipment in the power system.

High sensitivity and accuracy: The module can accurately detect abnormal situations in the system and respond quickly when faults occur, taking protective measures to prevent equipment damage.

Monitoring and Control:

Real time monitoring: supports real-time monitoring of the operating status of the power system, including parameters such as current, voltage, power factor, etc., to help users understand the system status in real time.

Remote control: It can be configured and controlled through a remote communication interface to adjust protection settings and clear faults.

High reliability and stability:

Industrial grade design: The design meets industrial standards, has high anti-interference ability and high reliability, and can operate stably in harsh industrial environments.

Redundancy design: Equipped with redundancy mechanisms, the system can continue to operate in the event of critical component failures, ensuring continuous protection functions.

Communication interface:

Multiple communication protocols: Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, etc., making it easy to integrate with other control or monitoring systems.

Data transmission: It can transmit monitoring data and status information to the central control system or remote server, facilitating centralized management and analysis.

Configuration and debugging:

Easy to configure: By configuring software, modules can be flexibly configured to set protection parameters, alarm thresholds, etc., to meet the needs of different application scenarios.

Fault diagnosis: Built in fault diagnosis function, capable of recording and analyzing equipment fault information, helping operation and maintenance personnel carry out preventive maintenance and troubleshooting.

Protection and alarm:

Multi level alarm: Supports multi-level alarm function, which can alert operators through sound and light alarms, relay outputs, and other methods when abnormalities are detected.

Protection action: When a serious fault is detected, the module can automatically take protective measures, such as circuit breaker, shutdown, etc., to protect the equipment from damage.
