Multilin 1228-0002-D4機箱連接器板 是 GE（現為 GE 智能電網）MULTILIN 系列中的機箱連接器板，用于連接和集成各種保護繼電器和控制模塊。
Multilin 1228-0002-D4機箱連接器板 詳情介紹：
MULTILIN 1228-0002-D4 是 GE（現為 GE 智能電網）MULTILIN 系列中的機箱連接器板，用于連接和集成各種保護繼電器和控制模塊。該連接器板主要用于電力保護和控制系統中的內部連接和接口擴展。
主要特點和功能
連接功能
- 機箱連接：提供機箱內部模塊之間的連接，確保不同組件之間的有效通信和數據傳輸。
- 接口擴展：支持多種輸入輸出接口，擴展系統的連接能力。
設計與結構
- 模塊化設計：設計用于與MULTILIN系列的其他模塊兼容，方便集成到系統中。
- 堅固耐用：工業級設計，確保在各種環境下的可靠性和穩定性。
通信與集成
- 兼容性：與MULTILIN系統中的多種設備兼容，支持不同類型的接口和通信協議。
- 接口類型：包括用于電源、信號輸入/輸出和數據傳輸?shù)臉?biāo)準接口。
安裝與維護
- 易于安裝：設計簡便，便于在機箱內安裝和連接。
- 維護方便：模塊化設計允許快速更換和維護，減少系統停機時間。
應用領域
- 變電站：在變電站中用于連接保護繼電器和控制模塊，提高系統的集成性和可靠性。
- 電力配電系統：提供內部連接功能，增強配電系統的模塊化和擴展性。
- 工業設施：在工業自動化系統中用于連接不同的控制和監測模塊，支持復雜的系統配置。
- 發電廠：支持發電廠內部保護和控制系統的連接需求，確保各組件之間的有效通信。

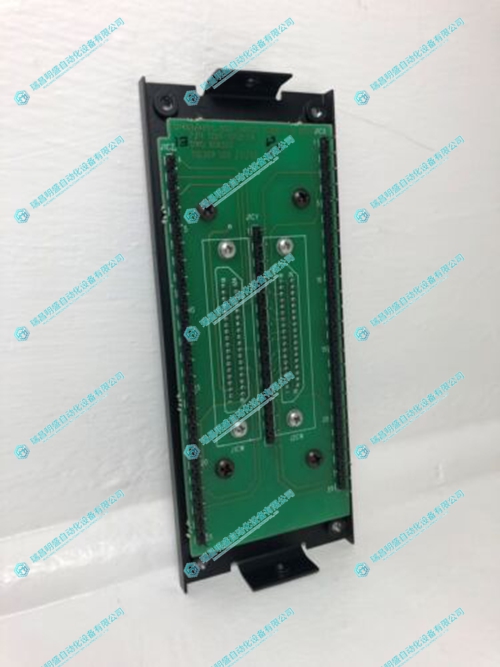

Multilin 1228-0002-D4機箱連接器板 實物圖片：
english introduction:
MULTILIN 1228-0002-D4 is a chassis connector board in the MULTILIN series of GE (now GE Smart Grid), used to connect and integrate various protective relays and control modules. This connector board is mainly used for internal connections and interface expansion in power protection and control systems.
Main features and functions
Connection function
Chassis Connection: Provides connections between internal modules of the chassis to ensure effective communication and data transmission between different components.
Interface extension: Supports multiple input and output interfaces to expand the system's connectivity capabilities.
Design and Structure
Modular design: Designed to be compatible with other modules in the MULTILIN series, making it easy to integrate into the system.
Durable and sturdy: Industrial grade design ensures reliability and stability in various environments.
Communication and Integration
Compatibility: Compatible with multiple devices in the MULTILIN system, supporting different types of interfaces and communication protocols.
Interface type: including standard interfaces for power supply, signal input/output, and data transmission.
Installation and maintenance
Easy to install: The design is simple and easy to install and connect inside the chassis.
Easy maintenance: Modular design allows for quick replacement and maintenance, reducing system downtime.
application area
Substation: Used in substations to connect protective relays and control modules, improving system integration and reliability.
Power distribution system: Provides internal connection functions to enhance the modularity and scalability of the distribution system.
Industrial facilities: Used in industrial automation systems to connect different control and monitoring modules, supporting complex system configurations.
Power plant: Support the connection requirements of internal protection and control systems in the power plant, ensuring effective communication between various components.
