VMIVME1150 64位光學耦合數字輸入板是專門為VME設計和優化的。

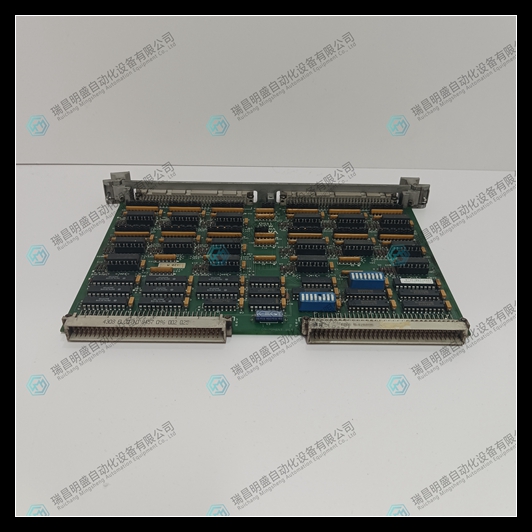

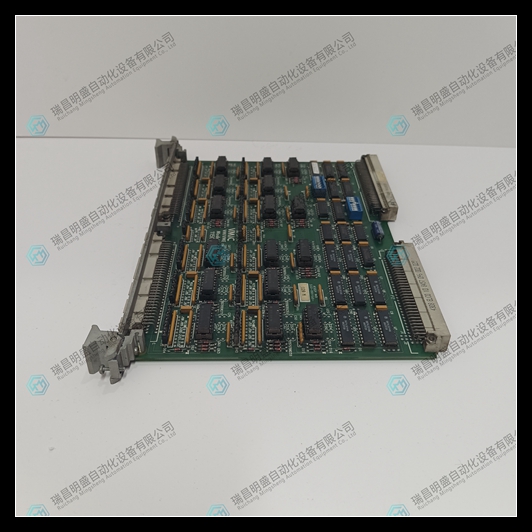

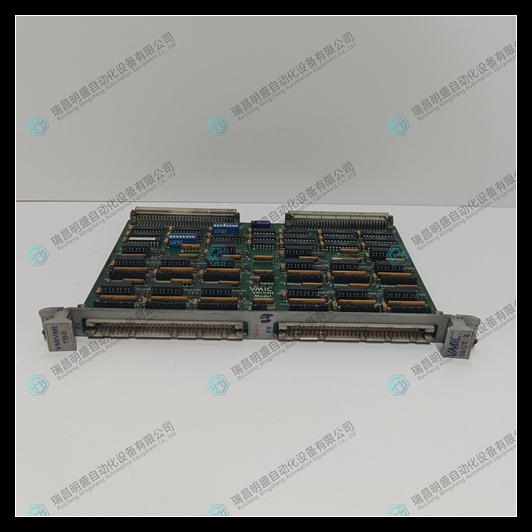

VMIVME1150光學耦合數字輸入板產品實物圖片展示
VMIVME1150光學耦合數字輸入板產品視頻展示
VMIVME1150光學耦合數字輸入板產品特點和使用說明
特征： 64個光耦合數字輸入 5V至48VDC輸入范圍 高隔離，1000V持續，7500V脈沖 篩選的輸入選項 雙I/O連接器 觸點閉合感應 電壓源或電流吸收輸入選項 正或負真實輸入選項 8或16位數據傳輸 非特權或監督I/O訪問 高可靠性DIN兼容輸入連接器 | Features: 64 optically coupled digital inputs Input range from 5V to 48VDC High isolation, 1000V continuous, 7500V pulse Filter input options Dual I/O connectors Contact closure induction Voltage source or current absorption input options Positive or negative true input options 8 or 16 bit data transmission Non privileged or supervised I/O access High reliability DIN compatible input connector |
如遇到問題，參考錯誤代碼或狀態指示燈，結合用戶手冊進行故障排除。
Instructions for use:
Pre installation inspection:
Confirm system compatibility: Ensure that your VME backplane and system support VMIVME-1150 cards, and check if specifications such as bus width and voltage level match.
Check physical conditions: Confirm whether the space, cooling conditions, and power supply of the chassis meet the requirements.
Installation steps:
Turn off the system power, follow the electrostatic protection measures, and gently insert the VMIVME-1150 card into the VME slot, ensuring correct alignment and full insertion.
Use appropriate screws to secure the board and avoid damage caused by excessive tightening.
Wiring:
Connect the digital signal line of the external device to the input port of the board. Pay attention to following the correct polarity and voltage level restrictions.
Ensure that all connections are properly shielded to reduce interference.
Configuration and Settings:
After turning on the system, identify and configure VMIVME-1150 in the system software or monitoring program. This may involve setting the input channel mode (such as wet contact, dry contact), jitter removal time, input level range, etc.
Some systems may require the installation of specific drivers or firmware updates to ensure optimal performance.
Testing and Verification:
In the application system, send commands through software or use system diagnostic tools to test the functionality of each input channel, ensuring that signals are detected and processed correctly and without errors.
Observe the system response and verify the consistency between the input signal and the expected operation.
Maintenance and troubleshooting:
Regularly check for loose connections, maintain cleanliness, and avoid dust accumulation.
If encountering problems, refer to the error code or status indicator light, and troubleshoot in conjunction with the user manual.
