GE 469-P1-HI-A20-T 電動機保護繼電器 是一款由通用電氣(GE)開發的工業控制設備,屬于VMIC/GE Fanuc板卡系列。這個系列專為工業生產線上的多種應用而設計,如CPU管理和輸入輸出通信。VMIVME-2540是該系列中的特定模塊,具備作為智能計數器控制器的功能。
GE 469-P1-HI-A20-T 電動機保護繼電器 詳情介紹:
GE 469-P1-HI-A20-T 電動機保護繼電器是一款專為電動機保護設計的設備。它主要用于監測和控制電動機的運行狀態,提供過載、短路、接地故障等保護功能,確保電動機的安全和可靠運行。
主要功能
- 過載保護:當電動機運行超過其額定負載時,繼電器會檢測到電流的增加,并在適當?shù)臅r候切斷電源,以防止電動機過熱或損壞。
- 短路保護:如果電動機電路中出現短路,繼電器會迅速響應,切斷電源,以防止電流過大對電動機造成損害。
- 接地故障保護:當電動機發生接地故障時,即電動機的絕緣性能下降導致電流泄漏到地線上,繼電器會檢測到這種異常并切斷電源。
- 相序保護:有些電動機需要特定的相序來正確運行。如果相序錯誤,繼電器會切斷電源,防止電動機啟動或運行。
- 遠程控制和監控:繼電器通常配備有遠程控制接口,允許操作人員遠程監控和控制電動機的運行狀態。
應用領域
GE 469-P1-HI-A20-T 電動機保護繼電器廣泛應用于各種需要保護電動機免受損壞的場合,如制造業、工業生產線、建筑設備、泵和風機等。它可以幫助提高設備的可靠性和使用壽命,降低維護成本,并保障生產過程的連續性和安全性。
特點
- 高精度:繼電器能夠精確監測電流和電壓的變化,確保及時響應故障。
- 快速響應:在檢測到故障時,繼電器能夠迅速切斷電源,減少故障對電動機的損害。
- 易于配置:繼電器通常具有友好的用戶界面和配置軟件,方便用戶進行參數設置和故障排查。
- 高可靠性:繼電器經過嚴格的質量控制和環境測試,能夠在惡劣的工業環境中穩定運行。
總之,GE 469-P1-HI-A20-T 電動機保護繼電器是一款功能強大、可靠性高的電動機保護設備,為電動機的安全運行提供了有效的保障。

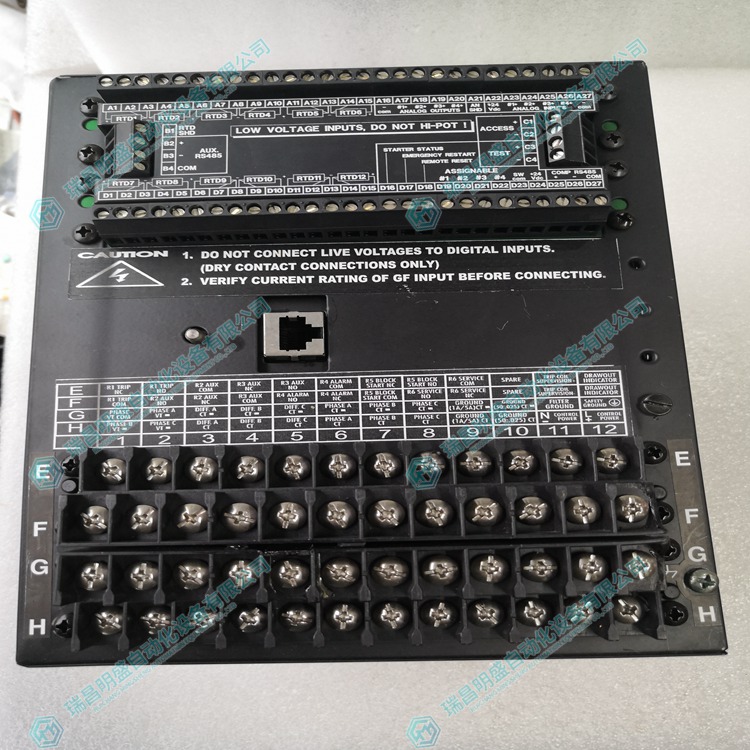

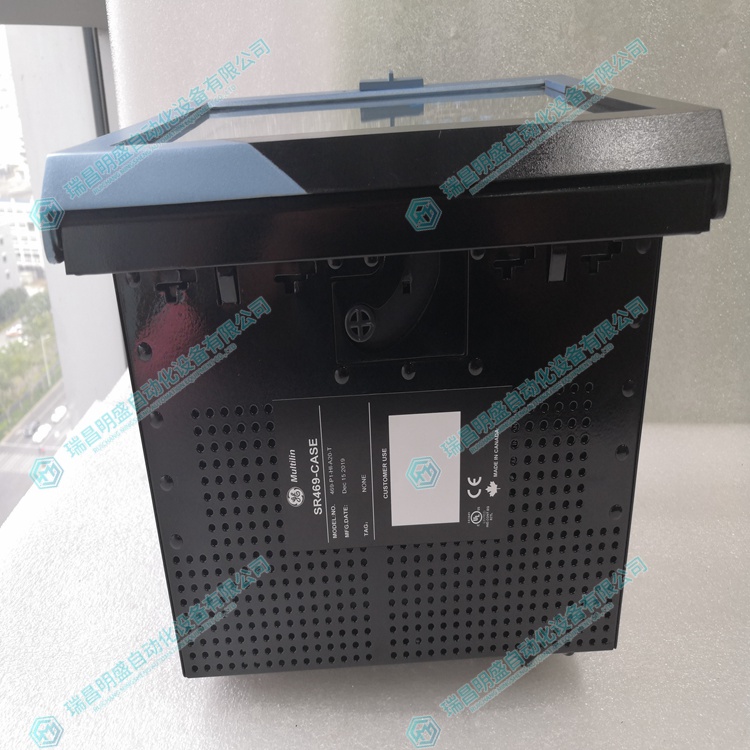

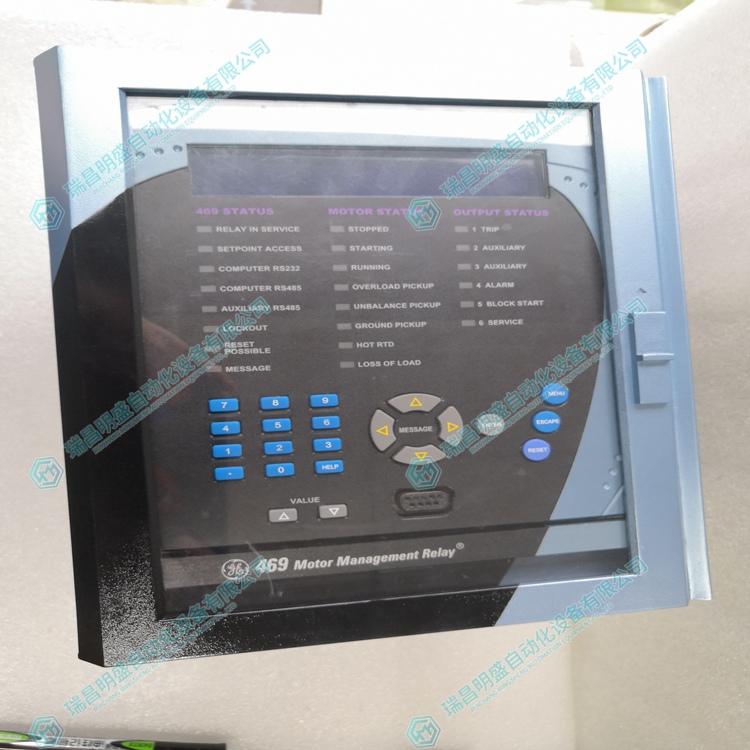

GE 469-P1-HI-A20-T 電動機保護繼電器 實物圖片:

GE 469-P1-HI-A20-T 電動機保護繼電器 實物視頻
GE 469-P1-HI-A20-T Motor Protection Relay Details Introduction:
The GE 469-P1-HI-A20-T motor protection relay is a device designed specifically for motor protection. It is mainly used to monitor and control the operating status of the motor, provide protection functions such as overload, short circuit, and ground fault, and ensure the safe and reliable operation of the motor.
major function
Overload protection: When the motor exceeds its rated load, the relay will detect an increase in current and cut off the power supply at an appropriate time to prevent the motor from overheating or damage.
Short circuit protection: If a short circuit occurs in the motor circuit, the relay will quickly respond and cut off the power to prevent excessive current from causing damage to the motor.
Ground fault protection: When a ground fault occurs in the motor, that is, the insulation performance of the motor decreases, resulting in current leakage to the ground wire, the relay will detect this abnormality and cut off the power supply.
Phase sequence protection: Some motors require a specific phase sequence to operate correctly. If the phase sequence is incorrect, the relay will cut off the power supply to prevent the motor from starting or running.
Remote control and monitoring: Relays are usually equipped with remote control interfaces, allowing operators to remotely monitor and control the operation status of the motor.
application area
The GE 469-P1-HI-A20-T motor protection relay is widely used in various situations that require the protection of motors from damage, such as manufacturing, industrial production lines, building equipment, pumps, and fans. It can help improve the reliability and service life of equipment, reduce maintenance costs, and ensure the continuity and safety of the production process.
characteristic
High precision: The relay can accurately monitor changes in current and voltage, ensuring timely response to faults.
Quick response: When a fault is detected, the relay can quickly cut off the power supply, reducing the damage of the fault to the motor.
Easy to configure: Relays typically have a user-friendly interface and configuration software, making it convenient for users to set parameters and troubleshoot faults.
High reliability: The relay has undergone strict quality control and environmental testing, and can operate stably in harsh industrial environments.
In summary, the GE 469-P1-HI-A20-T motor protection relay is a powerful and highly reliable motor protection device, providing effective protection for the safe operation of the motor.
