bently 3500/15 114M5330-01 114M5335-01電源模塊是3500系列狀態監測保護系統里面的一款低壓直流電源模塊。

bently 3500/15 114M5330-01 114M5335-01電源模塊產品詳情信息：

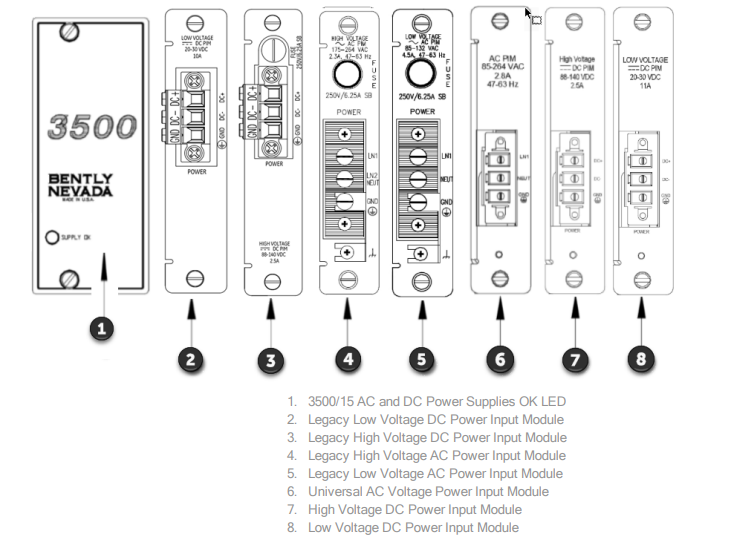

3500/15交流和直流電源是半高模塊，必須安裝在機架左側的指定插槽中。3500機架可以包含一個或兩個交流和直流任意組合的電源。任一電源都可以為整個機架供電。當兩個電源安裝在一個機架中時，位于較低插槽中的一個用作主電源，位于較高插槽中的另一個用作備用電源。如果已安裝，則第二個電源是主電源的備用電源。只要安裝了第二個電源，卸下或插入任一電源模塊都不會中斷機架的運行。3500/15交流和直流電源可接受各種輸入電壓，并將其轉換為其他3500模塊可接受的電壓。3500系列機械保護系統提供以下電源：l通用交流電源l高壓直流電源l低壓直流電源

The 3500/15 AC and DC Power Supplies are half-height modules andmust be installed in designated slots on the left side of the rack. The3500 rack can contain one or two power supplies with any combinationsof AC and DC. Either supply can power a full rack.When two power supplies are installed in a rack, the one in the lowerslot acts as the primary supply, and the other in the upper slot acts asthe backup supply. If installed, the second supply is the backup for theprimary one.Removing or inserting either power supply module does not disruptoperation of the rack as long as a second power supply is installed.The 3500/15 AC and DC Power Supplies accepts a wide range of inputvoltages and converts them to voltages acceptable for use by other3500 modules. The following power supplies are available with the 3500Series Machinery Protection System:l Universal AC Powerl High Voltage DC Power Supplyl Low Voltage DC Power Supply.

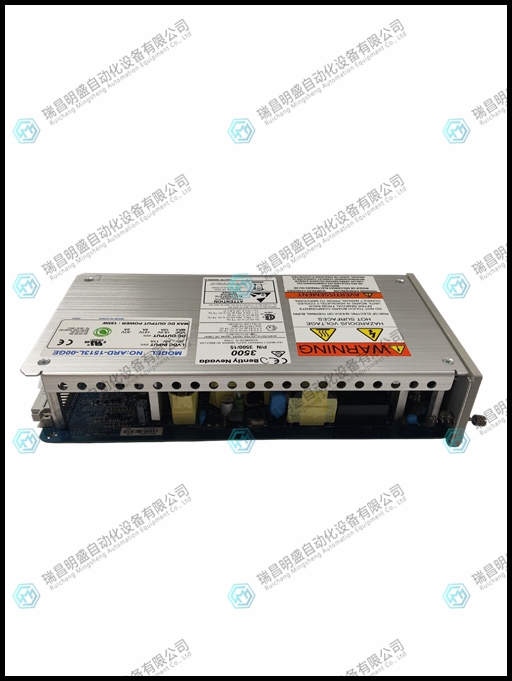

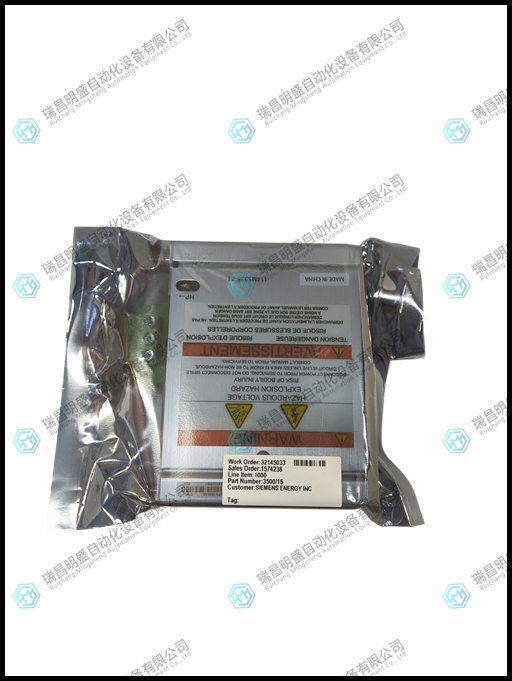

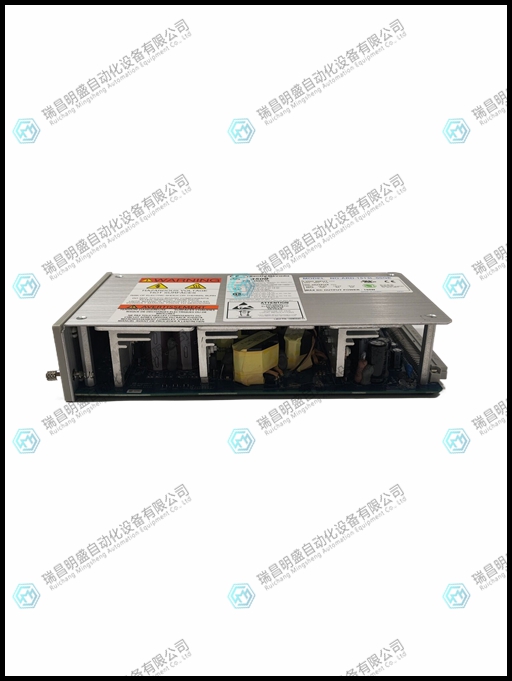

bently 3500/15 114M5330-01 114M5335-01電源模塊產品實物圖片：

bently 3500/15 114M5330-01 114M5335-01電源模塊產品視頻：

bently 3500/15 114M5330-01 114M5335-01電源模塊同系列產品：
