BENTLY  3500/22-01-01-00 瞬態數據接口   是一款功能強大、性能穩定的設備，為工業應用提供了高效的數據傳輸和收集能力。通過結合機架接口模塊的功能和通信處理器的數據收集能力，它為用戶提供了全面的設備監測和故障診斷解決方案。

BENTLY  3500/22-01-01-00 瞬態數據接口  詳情介紹：

Bently 3500/22-01-01-00瞬態數據接口（TDI）是Bently內華達（Bently Nevada）公司3500監測系統中的一個關鍵組件，它充當了3500監測系統與兼容軟件之間的橋梁。該瞬態數據接口具有多種重要特性和功能，為工業應用提供了可靠且高效的數據傳輸和收集能力。

首先，Bently 3500/22-01-01-00 TDI結合了3500/20機架接口模塊（RIM）的功能和通信處理器（如TDXnet）的數據收集能力。這使得它能夠連續收集穩態和瞬態波形數據，并通過以太網鏈路將這些數據傳送到主機軟件，如系統1*狀態監測和診斷軟件以及3500系統配置軟件。這種能力使得用戶可以實時了解設備的運行狀態，及時發現潛在問題，并采取相應的維護措施。

其次，Bently 3500/22-01-01-00 TDI具有靜態數據采集功能，這是其標準配置。然而，通過使用可選的通道使能盤，TDI也能捕獲動態和高分辨率瞬態數據。這使得用戶可以更全面地了解設備的運行狀況，包括在瞬態事件（如啟動、停機或負載變化）期間的行為。

此外，Bently 3500/22-01-01-00 TDI在3500機架內集成了通信處理器功能，從而簡化了系統架構并降低了成本。每個3500機架都需要一個TDI或RIM，并且它始終占用機架的1號插槽（靠近電源）。這種設計確保了數據的可靠傳輸和系統的穩定運行。

在兼容性方面，Bently 3500/22-01-01-00 TDI與多種設備和軟件兼容，使得用戶可以輕松地將其集成到現有的監測系統中。無論是與M系列顯示器（如3500/40M和3500/42M）一起使用，還是與其他Bently Nevada的產品和解決方案相結合，它都能提供出色的性能和可靠性。

最后，Bently 3500/22-01-01-00 TDI還具有其他一些特性，如USB-B前面板、10Base-T或100Base-TX以太網自適應功能、100Base-FX光纖以太網接口以及機架復位按鈕等。這些特性進一步增強了其靈活性和易用性，使得用戶可以更方便地管理和維護監測系統。

總之，Bently 3500/22-01-01-00瞬態數據接口是一款功能強大、性能穩定的設備，為工業應用提供了高效的數據傳輸和收集能力。通過結合機架接口模塊的功能和通信處理器的數據收集能力，它為用戶提供了全面的設備監測和故障診斷解決方案。

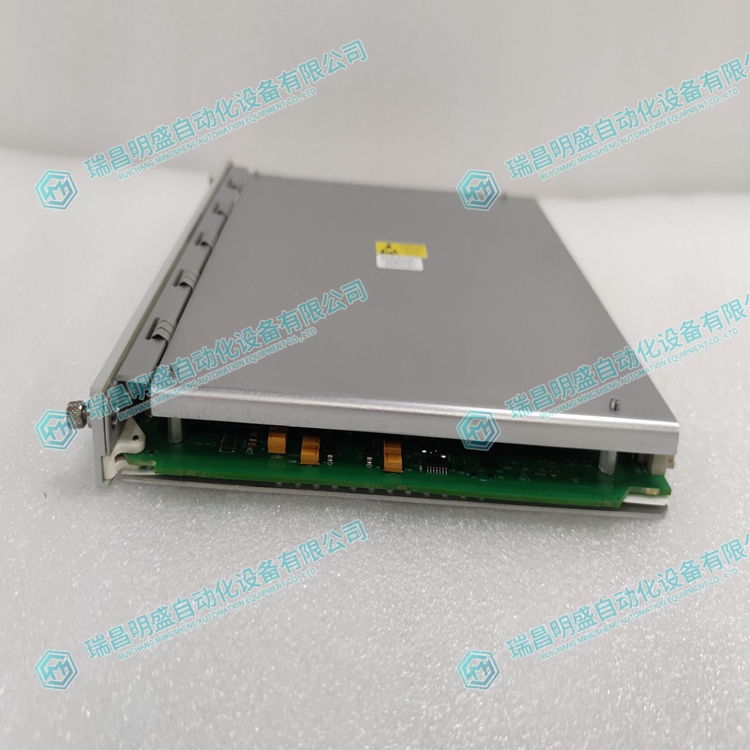

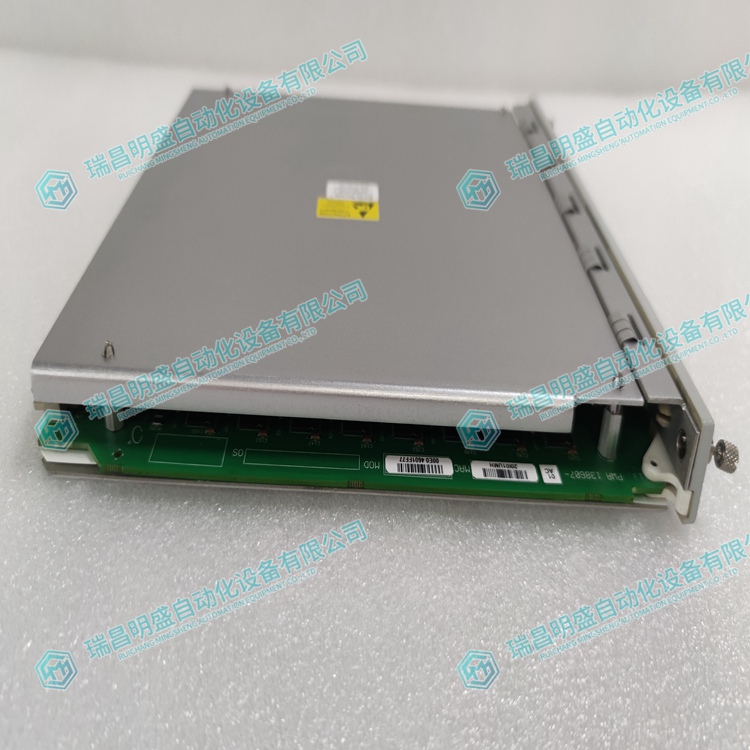

BENTLY  3500/22-01-01-00 瞬態數據接口   實物圖片：

BENTLY  3500/22-01-01-00 瞬態數據接口  產品視頻：

BENTLY 3500/22-01-01-00 Transient Data Interface Details Introduction:

The Bently 3500/22-01-01-00 Transient Data Interface (TDI) is a critical component of the Bently Nevada 3500 Monitoring System, serving as a bridge between the 3500 Monitoring System and compatible software. This transient data interface has multiple important features and functions, providing reliable and efficient data transmission and collection capabilities for industrial applications.

Firstly, the Bently 3500/22-01-01-00 TDI combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors such as TDXnet. This enables it to continuously collect steady-state and transient waveform data, and transmit this data to host software through Ethernet links, such as System 1 * status monitoring and diagnostic software and 3500 system configuration software. This ability enables users to have real-time understanding of the device's operating status, identify potential issues in a timely manner, and take corresponding maintenance measures.

Secondly, the Bently 3500/22-01-01-00 TDI has a static data acquisition function, which is its standard configuration. However, by using optional channel enable disks, TDI can also capture dynamic and high-resolution transient data. This allows users to have a more comprehensive understanding of the operational status of the device, including its behavior during transient events such as startup, shutdown, or load changes.

In addition, the Bently 3500/22-01-01-00 TDI integrates communication processor functionality within the 3500 rack, simplifying the system architecture and reducing costs. Each 3500 rack requires a TDI or RIM, and it always occupies slot 1 of the rack (near the power supply). This design ensures reliable data transmission and stable system operation.

In terms of compatibility, the Bently 3500/22-01-01-00 TDI is compatible with multiple devices and software, allowing users to easily integrate it into existing monitoring systems. Whether used with M-series displays such as 3500/40M and 3500/42M, or combined with other Bently Nevada products and solutions, it can provide excellent performance and reliability.

Finally, the Bently 3500/22-01-01-00 TDI also has other features such as the USB-B front panel, 10Base-T or 100Base-TX Ethernet adaptive function, 100Base-FX fiber Ethernet interface, and rack reset button. These features further enhance its flexibility and usability, making it easier for users to manage and maintain monitoring systems.

In summary, the Bently 3500/22-01-01-00 transient data interface is a powerful and stable device that provides efficient data transmission and collection capabilities for industrial applications. By combining the functions of the rack interface module with the data collection capabilities of the communication processor, it provides users with a comprehensive device monitoring and fault diagnosis solution.
