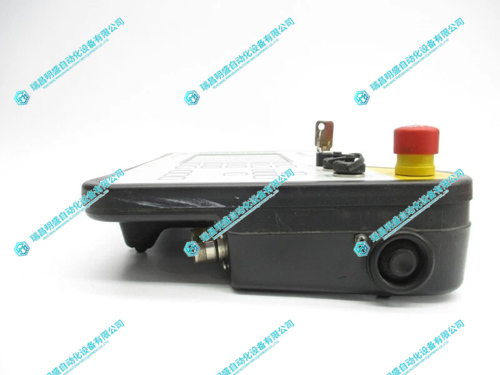

KEBA HT501-231示教器

1.產 品 資 料 介 紹：

一、產品概述

KEBA HT501-231 是一款工業級手持式示教器（Teach Pendant），廣泛用于機器人、注塑機、自動化生產線等領域的操作與調試。該設備由 KEBA（奧地利）公司研發，屬于其 KeTop 系列示教器家族，具備高分辨率觸摸顯示屏、功能按鍵、急停開關與操作手輪等，支持人機交互與實時參數設置。它主要用作設備的調試界面、運動控制終端或程序輸入平臺。

二、技術參數（簡要）

• 產品型號：HT501-231

• 屏幕類型：工業級彩色觸控屏（多為 7" 或 10.1"）

• 操作接口：功能鍵、導航按鈕、操作輪、緊急停止按鈕、使能開關

• 通信接口：Ethernet、CAN、USB 等

• 外殼材質：抗摔、防靜電 ABS 工業塑料，符合人體工學設計

• 防護等級：IP65（正面），適用于工業環境

• 使用電壓：通過連接線纜由主系統供電（通常 24V）

• 支持系統：兼容 KEBA KeMotion、KePlast、第三方 PLC/驅動控制系統

三、應用領域

1. 工業機器人控制系統

   • 用于 ABB、KUKA、YASKAWA 等機器人平臺的手動編程、路徑調試與故障排查。

2. 注塑機及熱成型設備

   • 結合 KEBA KePlast 系統，用于設置工藝參數、手動操作執行器、監控實時數據。

3. 自動化裝配與輸送線

   • 擔任整線調試控制臺，實現運動軸手動控制、傳感器測試、聯動校準等功能。

4. 定制工業控制設備

   • 用于 OEM 工程系統中，作為人機界面終端集成至整套控制方案內。

英文資料：

1、 Product Overview

KEBA HT501-231 is an industrial grade handheld teaching pendant widely used for operation and debugging in fields such as robots, injection molding machines, and automated production lines. This device is developed by KEBA (Austria) and belongs to its KeTop series of teaching pendant family. It features a high-resolution touch display screen, function buttons, emergency stop switch, and operating handwheel, supporting human-computer interaction and real-time parameter settings. It is mainly used as a debugging interface for devices, motion control terminals, or program input platforms.

2、 Technical parameters (brief)

Product model: HT501-231

Screen type: Industrial grade color touch screen (mostly 7 "or 10.1")

Operation interface: function keys, navigation buttons, operation wheel, emergency stop button, enable switch

Communication interfaces: Ethernet, CAN, USB, etc

Shell material: Anti ｄｒｏｐ, anti-static ABS industrial plastic, designed ergonomically

Protection level: IP65 (front), suitable for industrial environments

Voltage used: Powered by the main system through connecting cables (usually 24V)

Support system: compatible with KEBA KeMotion, KePlast, third-party PLC/drive control systems

3、 Application Fields

Industrial Robot Control System

Used for manual programming, path debugging, and troubleshooting of robot platforms such as ABB, KUKA, and YASKAWA.

Injection molding machines and thermoforming equipment

Combined with the KEBA KePlast system, it is used to set process parameters, manually operate actuators, and monitor real-time data.

Automated assembly and conveyor line

Serve as the debugging console for the entire production line, implementing functions such as manual control of the motion axis, sensor testing, and linkage calibration.

Customized industrial control equipment

Used in OEM engineering systems as a human-machine interface terminal integrated into the entire control solution.

2.產      品      展      示
