REF615C_E HCFFAEAGABC2BAA11E是一種專用的饋線保護和控制繼電器，設計用于公用變電站和工業電力系統的保護、控制、測量和監督，包括帶或不帶分布式發電的放射狀、環形和網狀配電網。

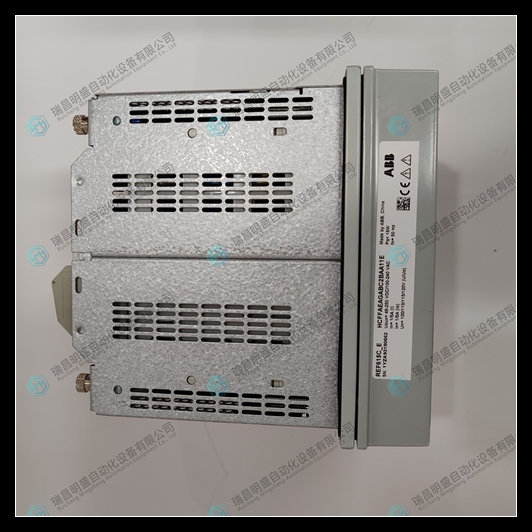

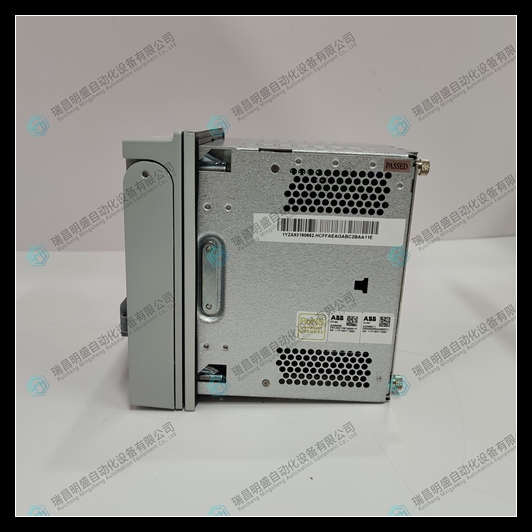

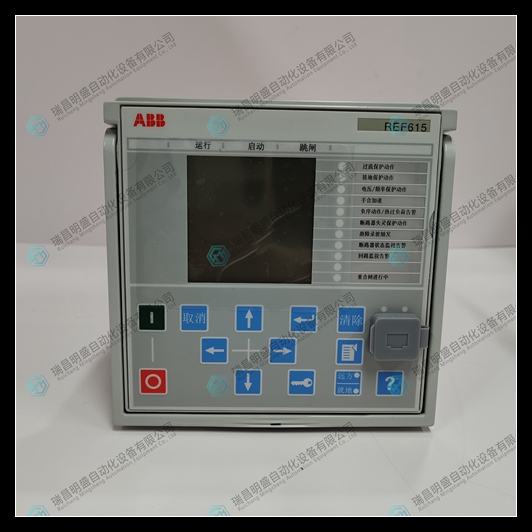

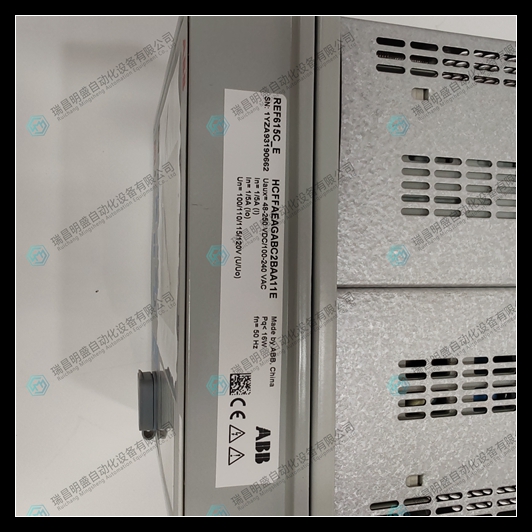

REF615C_E HCFFAEAGABC2BAA11E饋線保護和控制繼電器產品實物圖片展示

REF615C_E HCFFAEAGABC2BAA11E饋線保護和控制繼電器視頻展示

REF615C_E HCFFAEAGABC2BAA11E饋線保護和控制繼電器特點和使用說明

Features:

Comprehensive protection function: Provides comprehensive protection functions, including but not limited to overcurrent protection, short circuit protection, ground fault protection, undervoltage and overvoltage protection, as well as a series of configurable protection logics to ensure the stable and safe operation of the power system.

Fieldbus communication: Supports multiple fieldbus protocols such as IEC 61850, Modbus, etc., facilitating seamless communication and data exchange with SCADA systems, substation automation systems (SAS), and other intelligent devices.

Configuration and flexibility: Users can set parameters and configure logic through software to adapt to different power grid structures and operational requirements, improving the adaptability and flexibility of the system.

Diagnosis and event recording: With powerful fault diagnosis and event recording functions, it can record protection actions, system events, and operation history, which is helpful for fault analysis and system maintenance.

Relay protection and control: Integrated with advanced relay protection logic, it can not only quickly respond to faults, but also execute control commands, such as opening and closing operations, to achieve fault isolation and system recovery.

Easy installation and maintenance: compact design, easy to install and maintain, reducing on-site installation workload and maintenance costs.

Instructions for use:

Preparation before installation: Ensure that the installation environment meets electrical safety standards, check that the equipment model matches the system requirements, and prepare necessary installation tools and materials.

Physical installation: According to the installation guidelines provided by the manufacturer, fix the equipment on the designated switchgear or rack, and correctly connect the power and communication lines.

Configuration and debugging: Use specialized configuration software (such as ABB's Relief Configuration Studio) to set device parameters, including protection settings, communication parameters, etc., and conduct functional testing.

System integration: Integrate devices into existing automation systems, configure networks, and ensure smooth communication with upper computer monitoring systems, other protective devices, and other equipment.

On site testing: Before the system is put into operation, conduct on-site testing, including protection function testing, communication function testing, etc., to ensure that all protection logic and control commands work as expected.

Daily maintenance and monitoring: Regularly check the operation status of the equipment, monitor alarm information, update software or firmware as needed, and ensure long-term stable operation of the equipment.
