REX521GHHPSH51G饋線和電動機保護繼電器ABB公司變電站綜合自動化系統成員之一。該繼電器使用通用組態、整定和監視工具軟件— CAP 501和CAP 505，并采用與RED 500 系列保護繼電器完全相同的技術。

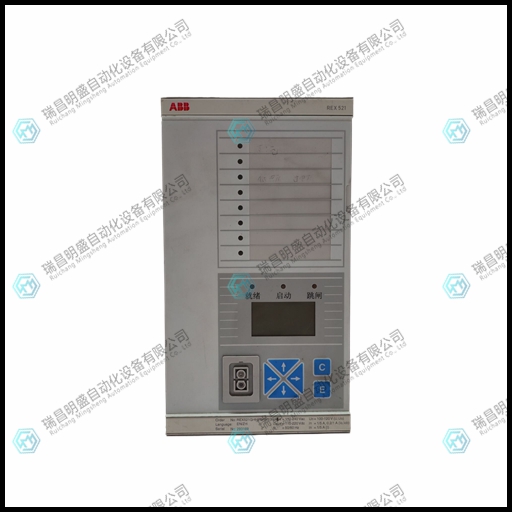

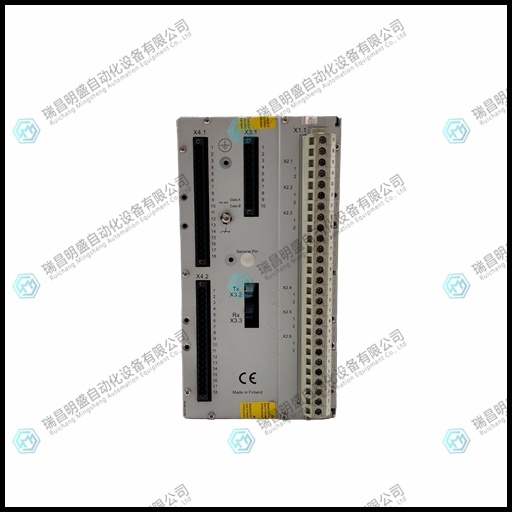

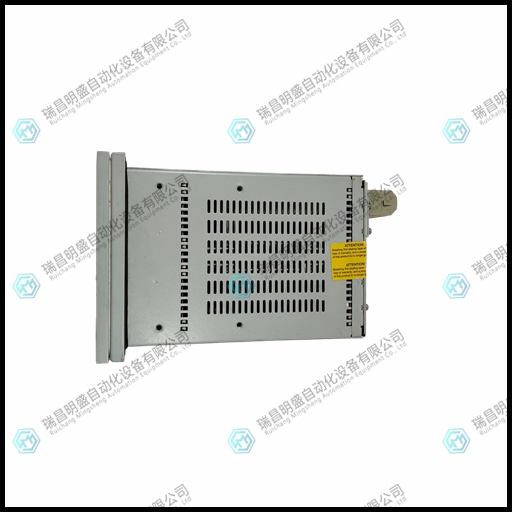

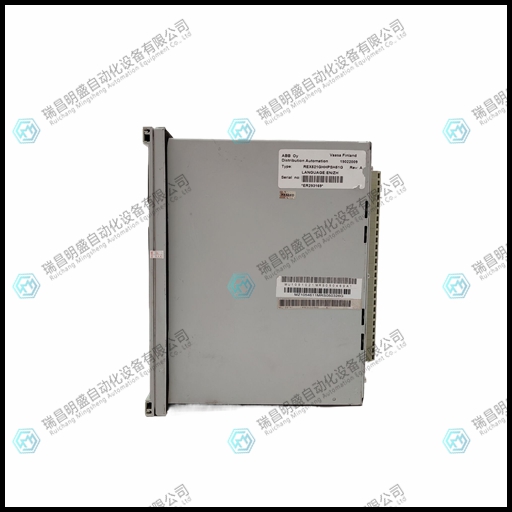

REX521GHHPSH51G饋線和電動機保護繼電器實物圖片展示
REX521GHHPSH51G饋線和電動機保護繼電器實物視頻
REX521GHHPSH51G饋線和電動機保護繼電器詳情介紹
REX 521用途廣泛，可用在輸、配電網絡上作保護、控制和監視，可用于不同電壓等級的中性點接地、小電阻接地、中性點不接地和諧振接地的網絡。該裝置既適用于輻射網也用于環狀網，既適用于單端供電系統也可用于多端供電的線路。
該保護繼電器采用多處理器技術實現其高性能。數字信號處理芯片(DSP)配合高性能的CPU以提高繼電器的測量精度，加快保護響應速度。人機界面(繼電器面板上的 LCD 和后臺整定工具軟件的界面)提供了多幅畫面和詳盡的幫助信息，方便用戶使用。在繼電器的軟件和硬件方面，都大量使用了現代技術。該繼電器是 ABB 變電站自動化產品系列的成員，在功能和使用靈活性方面有了更新的發展，這源于電子和電氣領域最新技術在該產品上的應用。
REX 521 has a wide range of applications and can be used for protection, control, and monitoring in transmission and distribution networks. It can be used for neutral point grounding, low resistance grounding, neutral point ungrounded, and resonant grounding networks of different voltage levels. This device is suitable for both radial and circular networks, as well as single ended power supply systems and multi ended power supply lines.
This protective relay adopts multi processor technology to achieve its high performance. The digital signal processing chip (DSP) is combined with a high-performance CPU to improve the measurement accuracy of relays and accelerate protection response speed. The human-machine interface (LCD on the relay panel and the interface of the background tuning tool software) provides multiple images and detailed help information, making it convenient for users to use. Modern technology is extensively used in both software and hardware aspects of relays. This relay is a member of ABB's substation automation product line, with updated developments in functionality and flexibility, stemming from the application of the latest technologies in the electronics and electrical fields in this product.
REX 521 除保護功能外，還提供了以下功能： 用于監測用戶網絡的全面的測量功能； 為了精確捕捉和分析故障，集成了高采樣率的故障錄波模塊就地 / 遠方斷路器控制； 可配置多輪次自動重合閘； 斷路器狀態監測； 可測量電壓或電流的總諧波畸變率（THD）以用于電能質量監視； 全中文的界面標識和顯示信息。 | In addition to protection functions, REX 521 also provides the following functions: Comprehensive measurement functions for monitoring user networks; In order to accurately capture and analyze faults, a high sampling rate fault recording module is integrated for local/remote circuit breaker control; Can be configured with multiple rounds of automatic reclosing; Circuit breaker status monitoring; Total harmonic distortion (THD) of measurable voltage or current for power quality monitoring; Full Chinese interface identification and display information. |
