ABB SPDSO14 數字輸出模塊 是ABB公司生產的一款產品，主要用于現場控制單元的硬件配置，完成插件的配置（如主機插件、電源插件、I/O插件、通信插件等）、硬件冗余配置、硬件安裝等任務
ABB SPDSO14 數字輸出模塊 詳情介紹：
SPDSO14數字輸出模塊是ABB公司生產的一款產品，主要用于現場控制單元的硬件配置，完成插件的配置（如主機插件、電源插件、I/O插件、通信插件等）、硬件冗余配置、硬件安裝等任務。以下是關于SPDSO14數字輸出模塊的詳細信息：
- 產品特性：
- 作為一種模擬輸出模件，它可以輸出各種模擬信號，如電壓、電流等。
- SPDSO14提供了控制器和I/O模塊之間的路徑，通過ASI模塊與控制器進行通信，實現輸入和輸出數據的傳輸。
- 該模塊支持16個數字輸出通道（DO），具有開路集電極類型。
- 它的輸入暫存器反映輸入信號狀態，輸出點反映輸出鎖存器狀態。
- 應用場景：
- SPDSO14數字輸出模塊通常用于工業自動化控制系統，如Symphony Plus I/O HR系列（Harmony Rack）等。
- 它可以在Harmony控制單元（HCU）內作為子系統的一部分，與控制子系統和其他I/O子系統協同工作。
- 技術參數：
- 產品凈深/長：73.66 mm
- 產品凈高：360.68 mm
- 產品凈寬：279.4 mm
- 產品凈重：0 kg
- 環保WEEE類別：5（小型設備，外部尺寸不超過50厘米）

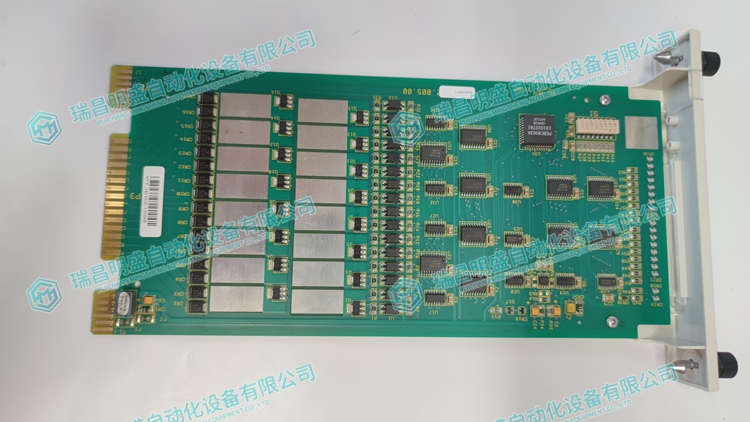

ABB SPDSO14 數字輸出模塊 實物圖片：
ABB SPDSO14 數字輸出模塊 實物視頻
ABB SPDSO14 Digital Output Module Details Introduction:
The SPDSO14 digital output module is a product produced by ABB, mainly used for hardware configuration of on-site control units, completing tasks such as configuring plugins (such as host plugins, power plugins, I/O plugins, communication plugins, etc.), hardware redundancy configuration, hardware installation, etc. The following is detailed information about the SPDSO14 digital output module:
Product features:
As an analog output module, it can output various analog signals, such as voltage, current, etc.
SPDSO14 provides a path between the controller and the I/O module, which communicates with the controller through the ASI module to achieve the transmission of input and output data.
This module supports 16 digital output channels (DO) and has an open collector type.
Its input register reflects the state of the input signal, and its output point reflects the state of the output latch.
Application scenario:
SPDSO14 digital output modules are commonly used in industrial automation control systems, such as Symphony Plus I/O HR series (Harmony Rack), etc.
It can function as part of a subsystem within the Harmony Control Unit (HCU), working in conjunction with the control subsystem and other I/O subsystems.
Technical parameters:
Product net depth/length: 73.66 mm
Product net height: 360.68 mm
Product net width: 279.4 mm
Net weight of product: 0 kg
Environmental WEEE category: 5 (small equipment, external dimensions not exceeding 50 centimeters)
