A-B 1797-IRT8 熱電偶輸入模塊 是羅克韋爾自動化(Allen-Bradley)設計的一種輸入設備,具有一系列獨特的技術特性和應用優勢。
A-B 1797-IRT8 熱電偶輸入模塊 詳情介紹:
AB 1797-IRT8熱電偶輸入模塊是羅克韋爾自動化(Allen-Bradley)設計的一種輸入設備,具有一系列獨特的技術特性和應用優勢。
首先,該模塊使用8個通道進行輸入,信號范圍廣泛,覆蓋0至485歐姆和-40至100毫伏,這使得它能夠適應多種應用場景,滿足不同的信號輸入需求。此外,該模塊的驅動器額定功率具有1.6瓦特的模塊現場側功耗,并且需要小于9.5伏特DC的電源電壓用于Ui,同時電流消耗小于1安培用于Li,這保證了模塊的高效能耗和穩定運行。
其次,在外觀設計上,1797-IRT8配有IP20外殼,雖然不防水,但可以在工廠的室內環境下安全使用,并能有效防止水的噴射和飛濺。該模塊使用12 AWG絞合電纜進行連接,提供了穩定的電氣連接。為了便于安裝,該驅動器配備了DIN導軌安裝選項和面板安裝選項,用戶可以根據具體需求選擇合適的安裝方式。同時,該模塊的尺寸為長3.7英寸,寬2.95英寸,高1.8英寸,緊湊的設計使得它易于集成到各種系統中。
在編程和使用方面,AB 1797-IRT8的接口設計簡單,編程語言易于為工程技術人員接受。其梯形圖語言的圖形符號與表達方式和繼電器電路圖相當接近,使用少量的開關量邏輯控制指令,就可以方便地實現繼電器電路的功能。這為不熟悉電子電路、不懂計算機原理和匯編語言的人使用計算機從事工業控制打開了方便之門。

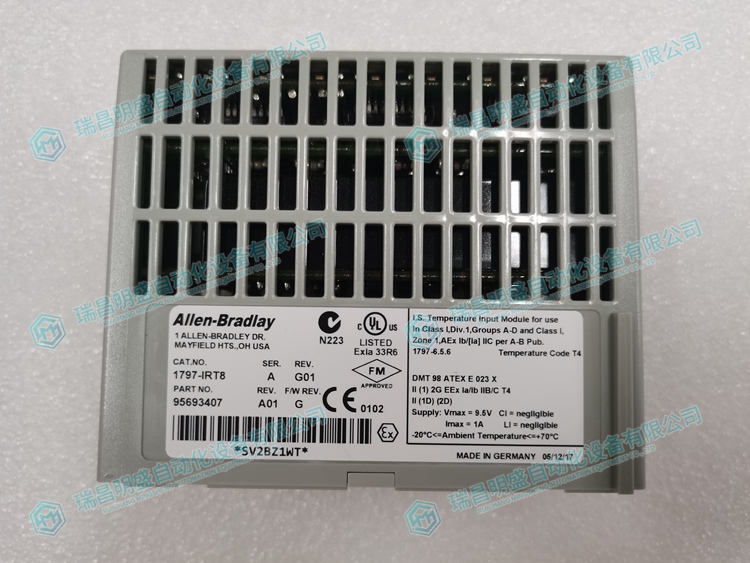

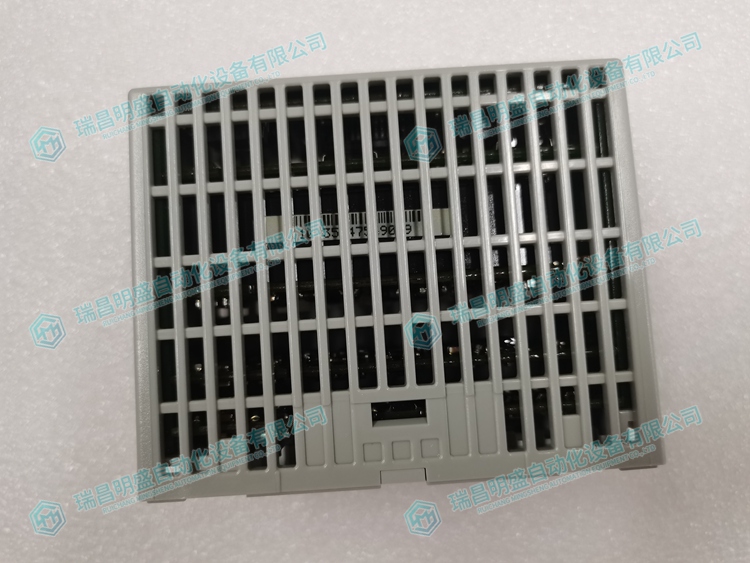

A-B 1797-IRT8 熱電偶輸入模塊 實物圖片:

A-B 1797-IRT8 熱電偶輸入模塊 實物視頻
A-B 1797-IRT8 Thermocouple Input Module Details Introduction:
The AB 1797-IRT8 thermocouple input module is an input device designed by Allen Bradley, which has a series of unique technical characteristics and application advantages.
Firstly, the module uses 8 channels for input, with a wide signal range covering 0 to 485 ohms and -40 to 100 millivolts, making it adaptable to various application scenarios and meeting different signal input requirements. In addition, the driver of this module has a rated power of 1.6 watts on the module's field side, and requires a power supply voltage of less than 9.5 volts DC for Ui, with a current consumption of less than 1 ampere for Li, ensuring efficient energy consumption and stable operation of the module.
Secondly, in terms of appearance design, the 1797-IRT8 is equipped with an IP20 shell, which, although not waterproof, can be safely used in the indoor environment of the factory and effectively prevent water spraying and splashing. This module uses 12 AWG twisted cables for connection, providing stable electrical connections. For ease of installation, the drive is equipped with DIN rail mounting options and panel mounting options, allowing users to choose the appropriate installation method according to their specific needs. Meanwhile, the module measures 3.7 inches in length, 2.95 inches in width, and 1.8 inches in height. Its compact design makes it easy to integrate into various systems.
In terms of programming and usage, the interface design of AB 1797-IRT8 is simple, and the programming language is easily accepted by engineering and technical personnel. The graphical symbols and expressions of its ladder diagram language are quite similar to those of relay circuit diagrams. With a small amount of switch logic control instructions, the functions of relay circuits can be easily realized. This opens the door to industrial control using computers for those who are not familiar with electronic circuits, do not understand computer principles, and assembly language.
