A-B 1794-ACNR15XT/D 適配器模塊 是一個由艾倫-布拉德利設計和制造的Flex I/O ControlNet適配器模塊。這款適配器模塊被特別批準用于那些不太可能經常出現蒸汽、薄霧和氣體的危險場所。
A-B 1794-ACNR15XT/D 適配器模塊 詳情介紹：
AB 1794-ACNR15XT/D 適配器模塊是一個由艾倫-布拉德利設計和制造的Flex I/O ControlNet適配器模塊。這款適配器模塊被特別批準用于那些不太可能經常出現蒸汽、薄霧和氣體的危險場所。
關于其操作，需要注意的是，在危險場所斷開此適配器之前，必須首先斷開電源。此外，除非模塊電源也已斷開，否則也不應斷開模塊的連接。為了保持模塊的清潔和防止靜電放電，應使用柔軟的防靜電布進行清潔，并避免使用清潔劑。
AB 1794-ACNR15XT/D 適配器的尺寸為87.4 x 94 x 92毫米，重量約為220克。在19.2伏DC的電壓下，其峰值功耗為3.4瓦。此外，模塊上提供了用于顯示2個通信端口狀態和I/O狀態的指示器。推薦的通信電纜為百通RG-6/U電纜，其中3類電線應用于電源端口，而2類電線應用于通信端口。
在連接電源時，應使用22至12 AWG的實心/絞合銅線，并確保端子螺釘扭矩不超過7磅/英寸。此模塊在19.2至31.2伏DC的直流輸入電壓下運行。
請注意，對于AB 1794-ACNR15XT/D 適配器模塊的具體使用方法和注意事項，建議查閱相關手冊或聯系專業人員進行咨詢，以確保安全和正確的使用。

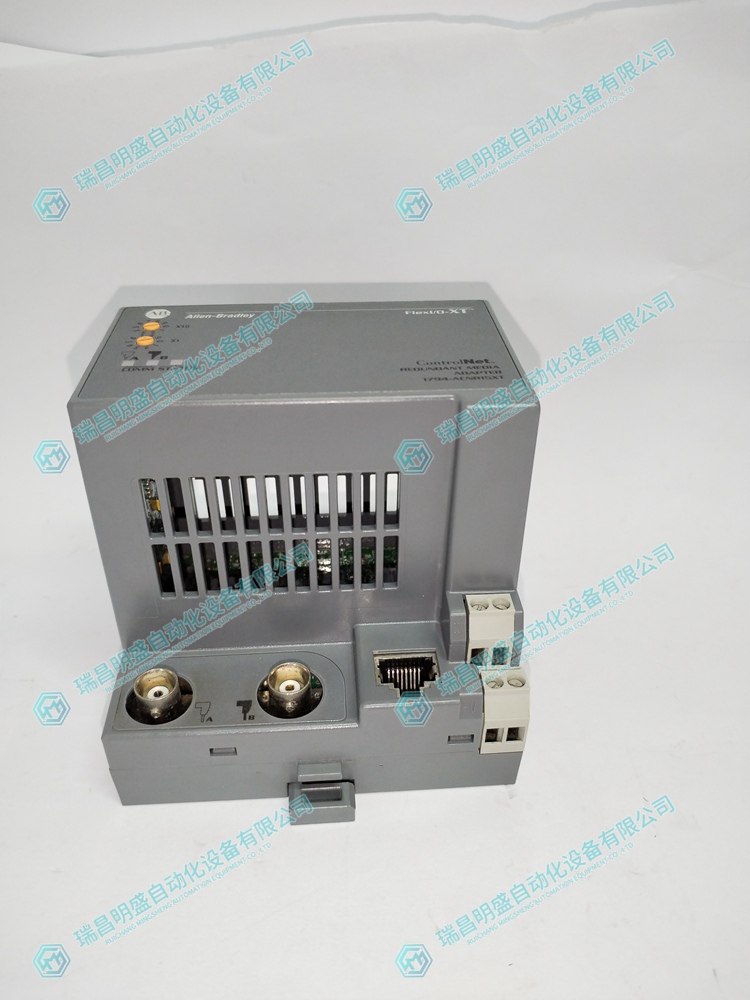

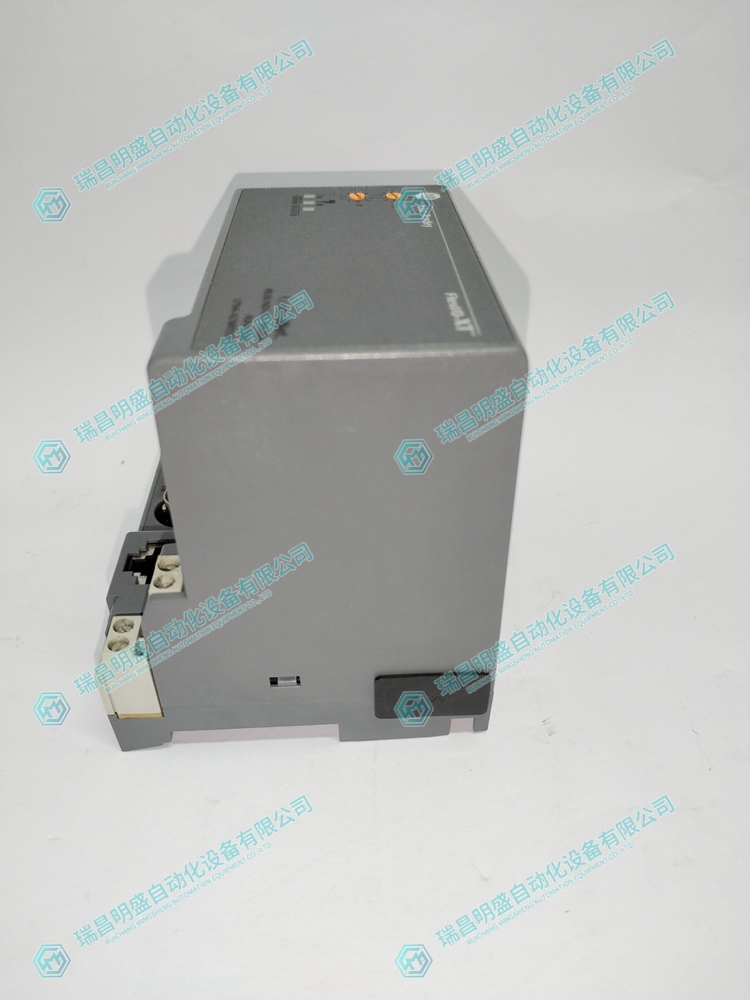

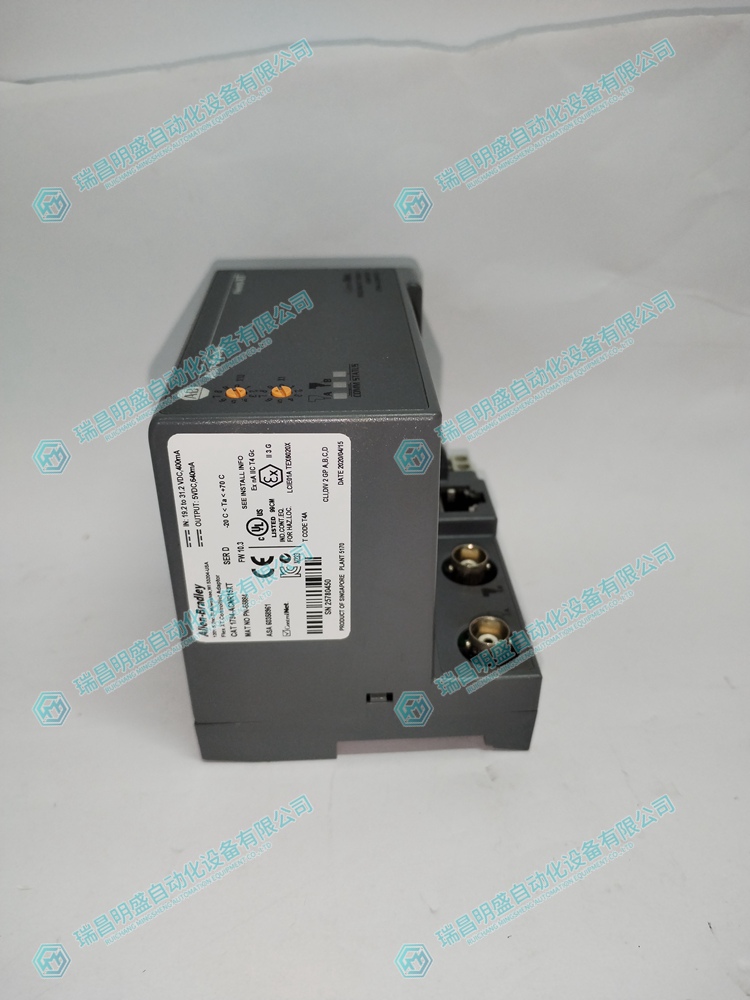

A-B 1794-ACNR15XT/D 適配器模塊 實物圖片：
A-B 1794-ACNR15XT/D 適配器模塊 實物視頻
A-B 1794-ACNR15XT/D adapter module details introduction:
The AB 1794-ACNR15XT/D adapter module is a Flex I/O ControlNet adapter module designed and manufactured by Allen Bradley. This adapter module is specifically approved for use in hazardous areas where steam, mist, and gases are unlikely to occur frequently.
Regarding its operation, it should be noted that before disconnecting this adapter in hazardous areas, the power must be disconnected first. In addition, the module should not be disconnected unless the power supply to the module has also been disconnected. To maintain the cleanliness of the module and prevent electrostatic discharge, a soft anti-static cloth should be used for cleaning, and the use of cleaning agents should be avoided.
The size of the AB 1794-ACNR15XT/D adapter is 87.4 x 94 x 92 millimeters and weighs approximately 220 grams. At a voltage of 19.2 volts DC, its peak power consumption is 3.4 watts. In addition, indicators are provided on the module to display the status of two communication ports and I/O status. The recommended communication cable is the Baitong RG-6/U cable, with Class 3 wires used for power ports and Class 2 wires used for communication ports.
When connecting to the power supply, use solid/twisted copper wire of 22 to 12 AWG and ensure that the terminal screw torque does not exceed 7 pounds per inch. This module operates at a DC input voltage of 19.2 to 31.2 volts DC.
Please note that for the specific usage and precautions of the AB 1794-ACNR15XT/D adapter module, it is recommended to consult relevant manuals or contact professional personnel for consultation to ensure safe and correct use.
