A-B 1756-RM2 以太網模塊 是一款功能強大的網絡設備，適用于工業自動化領域，如工業以太網網絡的構建、機器人控制、智能制造等應用場景。
A-B 1756-RM2 以太網模塊 詳情介紹：
AB 1756-RM2以太網模塊是一款功能強大的網絡設備，適用于工業自動化領域，如工業以太網網絡的構建、機器人控制、智能制造等應用場景。以下是關于該模塊的一些主要特性和參數：
- 工作條件與規格：AB 1756-RM2的工作電壓為24V DC，其工作溫度范圍廣泛，從-20℃到70℃，存儲溫度范圍則為-40℃到85℃。在尺寸上，該模塊為178mm x 35mm x 87mm，重量為0.25kg。此外，它支持2個可插拔的媒體模塊，以及4個10/100Mbps自適應以太網端口，使其能夠滿足多種網絡需求。
- 網絡管理與協議：該模塊支持SNMP v1/v2c/v3管理，VLAN、QoS、IGMP Snooping等網絡協議，以及RSTP、STP等網絡協議。這些功能使得AB 1756-RM2以太網模塊能夠高效地管理網絡流量，保證數據的穩定傳輸。
- 增強功能與速度：AB 1756-RM2是一款ControlLogix冗余模塊，具有增強功能和高速性能。當與兩個機箱中的1756-L7x控制器配對時，它能提供最佳的掃描性能。其速度高達1000 Mbps，為工業自動化應用提供了強大的網絡支持。
- 交叉負載與電流消耗：在交叉負載情況下，AB 1756-RM2使用冗余光纖端口，確保沒有單點故障。在通道切換期間，處理機箱能夠保持同步，而掃描時間可能會遇到大約10毫秒的延遲。在電流消耗方面，該模塊在5.1V DC時消耗1.16 A電流，而在24V DC時消耗3.4 mA電流。
AB 1756-RM2以太網模塊的配置與使用也相對簡便。它可以通過配置IP地址、打開以太網接口、設置網絡參數以及配置以太網模塊等步驟，輕松地與PLC設備和其他網絡設備連接。
請注意，雖然AB 1756-RM2以太網模塊具有眾多優勢，但在實際應用中，用戶仍需根據具體需求和場景，結合設備的特性和參數，進行合理的選擇和使用。同時，用戶也應遵循相關的操作指南和安全規范，以確保設備的穩定運行和數據的安全傳輸。
綜上所述，AB 1756-RM2以太網模塊是一款功能強大、性能穩定的網絡設備，適用于工業自動化領域的多種應用場景。

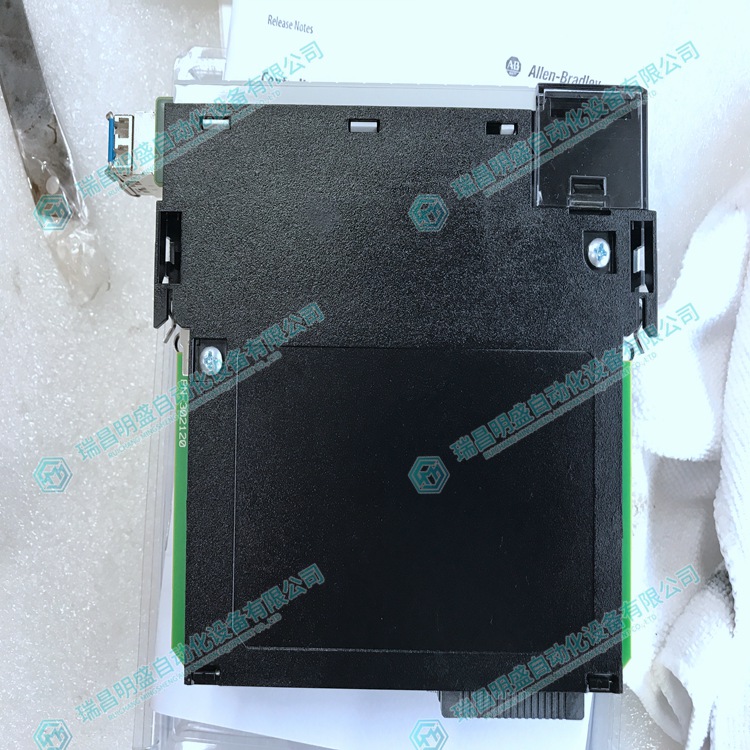

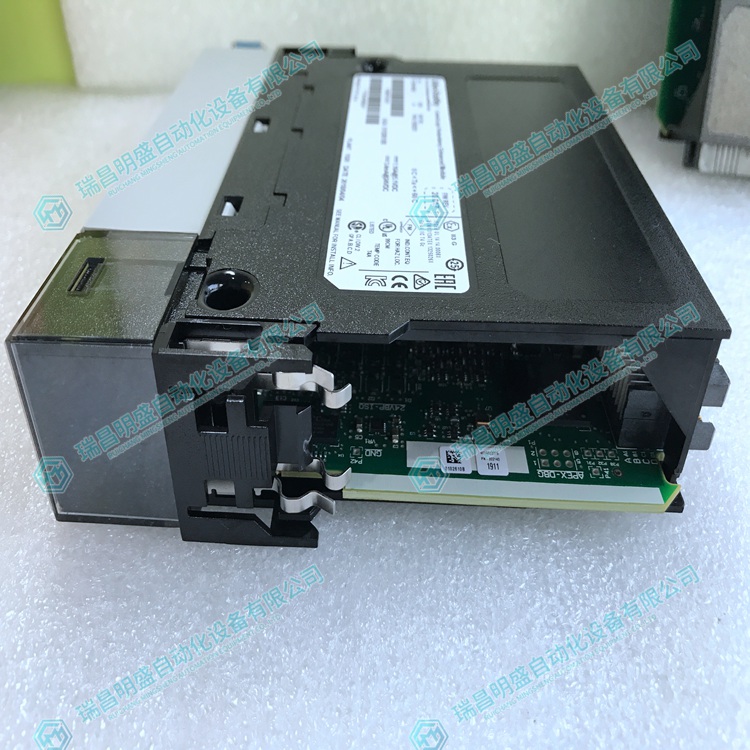

A-B 1756-RM2 以太網模塊 實物圖片：
A-B 1756-RM2 以太網模塊 實物視頻
A-B 1756-RM2 Ethernet Module Details Introduction:
The AB 1756-RM2 Ethernet module is a powerful network device suitable for industrial automation fields, such as the construction of industrial Ethernet networks, robot control, intelligent manufacturing, and other application scenarios. The following are some of the main features and parameters of this module:
Working conditions and specifications: The working voltage of AB 1756-RM2 is 24V DC, with a wide range of working temperatures from -20 ℃ to 70 ℃, and a storage temperature range of -40 ℃ to 85 ℃. In terms of size, the module is 178mm x 35mm x 87mm and weighs 0.25kg. In addition, it supports 2 pluggable media modules and 4 10/100Mbps adaptive Ethernet ports, enabling it to meet various network requirements.
Network Management and Protocol: This module supports SNMP v1/v2c/v3 management, VLAN, QoS, IGMP Snooping and other network protocols, as well as RSTP, STP and other network protocols. These features enable the AB 1756-RM2 Ethernet module to efficiently manage network traffic and ensure stable data transmission.
Enhanced functionality and speed: AB 1756-RM2 is a ControlLogix redundant module with enhanced functionality and high-speed performance. When paired with the 1756-L7x controllers in two chassis, it provides the best scanning performance. Its speed can reach up to 1000 Mbps, providing strong network support for industrial automation applications.
Cross load and current consumption: Under cross load conditions, AB 1756-RM2 uses redundant fiber optic ports to ensure no single point of failure. During channel switching, the processing chassis can maintain synchronization, and the scanning time may encounter a delay of approximately 10 milliseconds. In terms of current consumption, the module consumes 1.16 A of current at 5.1V DC and 3.4 mA of current at 24V DC.
The configuration and use of the AB 1756-RM2 Ethernet module are also relatively simple. It can easily connect to PLC devices and other network devices by configuring IP addresses, opening Ethernet interfaces, setting network parameters, and configuring Ethernet modules.
Please note that although the AB 1756-RM2 Ethernet module has many advantages, in practical applications, users still need to choose and use it reasonably based on specific needs and scenarios, combined with the characteristics and parameters of the device. At the same time, users should also follow relevant operating guidelines and safety regulations to ensure the stable operation of the equipment and the secure transmission of data.
In summary, the AB 1756-RM2 Ethernet module is a powerful and stable network device suitable for various application scenarios in the field of industrial automation.
