A-B 1756-OF8 模擬輸出模塊 是一款功能強大的模塊，具有8個電壓或電流模擬輸出，可安裝在ControLogix機箱的任何插槽中
A-B 1756-OF8 模擬輸出模塊 詳情介紹：
AB 1756-OF8模擬輸出模塊是一款功能強大的模塊，具有8個電壓或電流模擬輸出，可安裝在ControLogix機箱的任何插槽中。該模塊具有以下主要特點和規(guī)格：
- 輸出能力：輸出額定值為±10伏或0至20 mA，電壓或電流輸出范圍為-10至10V或4至20 mA。
- 信號分辨率與功耗：在21 mA時信號分辨率為15位，10.4伏時也為15位。其電路的大功耗為5.8瓦，總額定功率同樣為5.8瓦。
- 背板電流：在24伏直流時，背板電流為210 mA；在5.1伏時，背板電流為150 mA直流伏特。
- 保護機制：具有電路檢測功能，能在24伏直流電時提供過壓保護，并通過電子方式將電流限制為21mA或更小電流來提供短路保護。
- 掃描時間與誤差：浮點掃描時間為12毫秒，整數(shù)的掃描時間為8毫秒?？偰K誤差在電壓模式下為0.15%，在電流模式下為0.3%。
- 溫度與外殼：具有T4A(北美)、T4(ATEX)和T4(IEC)溫度代碼，并采用開放式外殼。
此外，1756-OF8模擬輸出模塊的電壓或電流建立時間為2毫秒，校準精度為0.05%，模塊校準間隔為12個月。
總的來說，AB 1756-OF8模擬輸出模塊是一款具有高效、穩(wěn)定性能的模塊，適用于各種需要精確模擬輸出的應用場景。

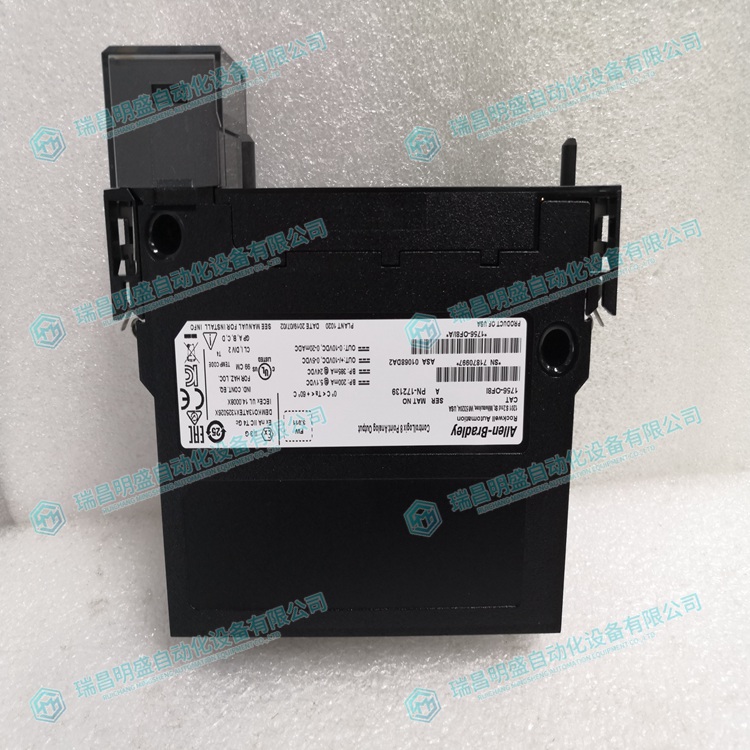

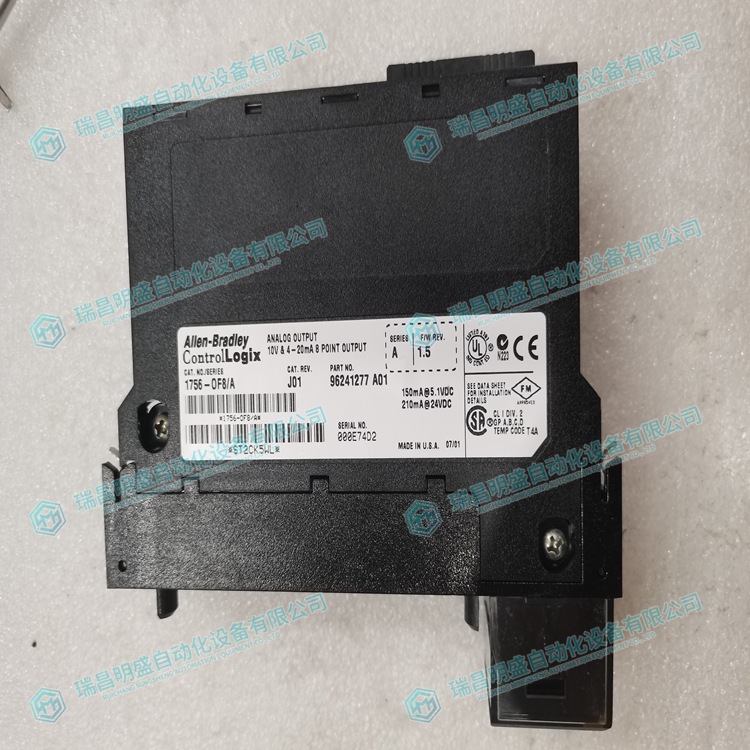

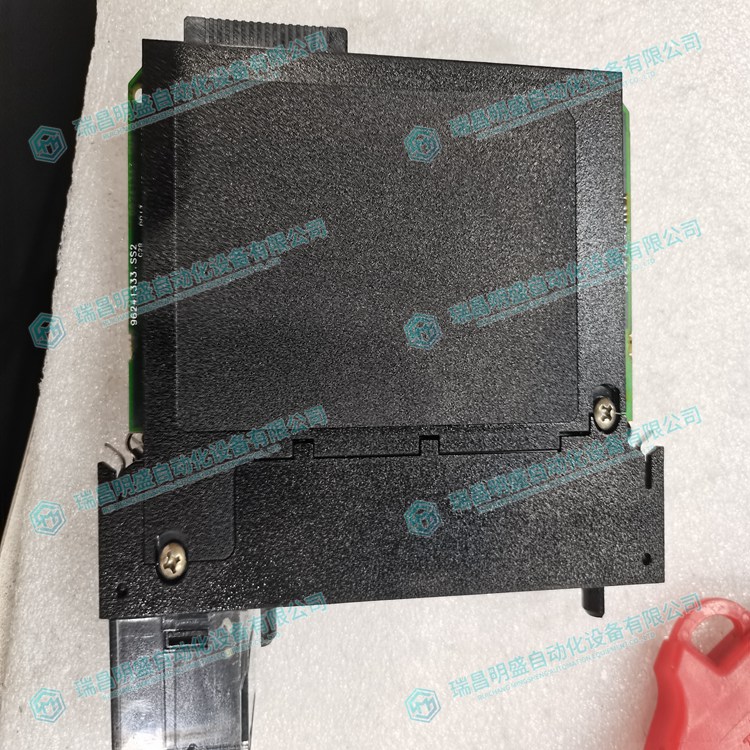

A-B 1756-OF8 模擬輸出模塊 實物圖片：
A-B 1756-OF8 模擬輸出模塊 實物視頻
A-B 1756-OF8 Analog Output Module Details Introduction:
The AB 1756-OF8 analog output module is a powerful module with 8 voltage or current analog outputs that can be installed in any slot of the ControlLogix chassis. This module has the following main features and specifications:
Output capability: The rated output value is ± 10 volts or 0 to 20 mA, and the voltage or current output range is -10 to 10 volts or 4 to 20 mA.
Signal resolution and power consumption: The signal resolution is 15 bits at 21 mA and also 15 bits at 10.4 volts. The high power consumption of its circuit is 5.8 watts, and the total rated power is also 5.8 watts.
Backboard current: At 24V DC, the backboard current is 210 mA; At 5.1 volts, the backplane current is 150 mA DC volts.
Protection mechanism: With circuit detection function, it can provide overvoltage protection at 24 volts DC and provide short-circuit protection by electronically limiting the current to 21 mA or less.
Scanning time and error: Floating point scanning time is 12 milliseconds, and integer scanning time is 8 milliseconds. The total module error is 0.15% in voltage mode and 0.3% in current mode.
Temperature and Housing: Equipped with T4A (North America), T4 (ATEX), and T4 (IEC) temperature codes, and featuring an open housing.
In addition, the voltage or current establishment time of the 1756-OF8 analog output module is 2 milliseconds, the calibration accuracy is 0.05%, and the module calibration interval is 12 months.
Overall, the AB 1756-OF8 analog output module is an efficient and stable module suitable for various application scenarios that require precise analog output
